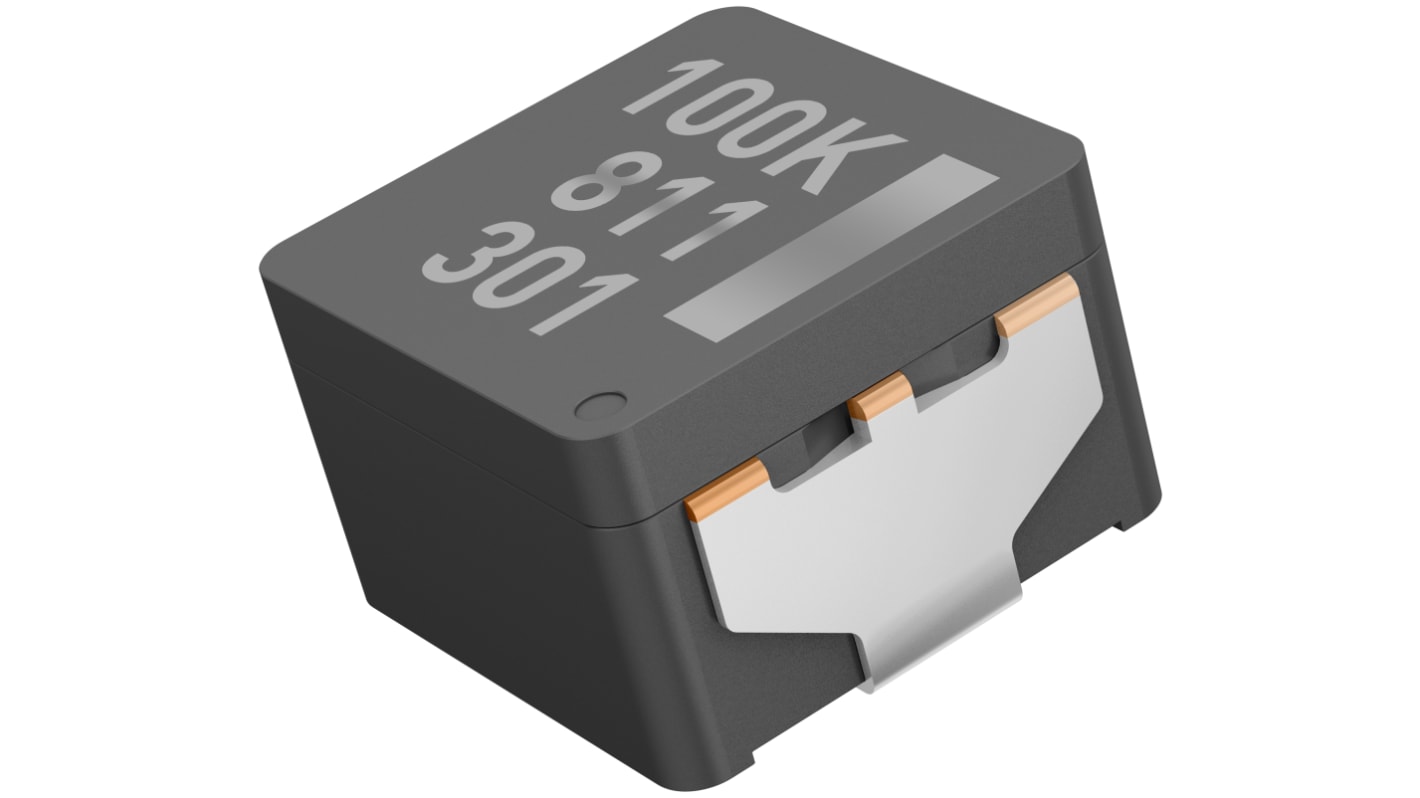

Panasonic, ETQP Shielded Power Choke Coil with a Metal Composite Core, 15 μH ±20 % 7.2 A Idc
- N° de stock RS:
- 271-3059
- Numéro d'article Distrelec:
- 304-34-677
- Référence fabricant:
- ETQP4M150KFM
- Fabricant:
- Panasonic
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 ruban de 5 unités)*
2,74 €
(TVA exclue)
3,315 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 990 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 5 - 20 | 0,548 € | 2,74 € |
| 25 - 45 | 0,406 € | 2,03 € |
| 50 - 95 | 0,358 € | 1,79 € |
| 100 - 245 | 0,308 € | 1,54 € |
| 250 + | 0,286 € | 1,43 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 271-3059
- Numéro d'article Distrelec:
- 304-34-677
- Référence fabricant:
- ETQP4M150KFM
- Fabricant:
- Panasonic
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Panasonic | |
| Inductance | 15μH | |
| Product Type | Power Choke Coil | |
| Maximum DC Current | 7.2A | |
| Length | 7.4mm | |
| Packaging | Embossed Carrier Tape | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 140°C | |
| Series | ETQP | |
| Inductance Tolerance | ±20 % | |
| Height | 4.8mm | |
| Standards/Approvals | RoHS | |
| Depth | 7mm | |
| Core Material | Metal Composite | |
| Inductor Construction | Shielded | |
| Sélectionner tout | ||
|---|---|---|
Marque Panasonic | ||
Inductance 15μH | ||
Product Type Power Choke Coil | ||
Maximum DC Current 7.2A | ||
Length 7.4mm | ||
Packaging Embossed Carrier Tape | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 140°C | ||
Series ETQP | ||
Inductance Tolerance ±20 % | ||
Height 4.8mm | ||
Standards/Approvals RoHS | ||
Depth 7mm | ||
Core Material Metal Composite | ||
Inductor Construction Shielded | ||
- Pays d'origine :
- JP
The Panasonic Power Inductors is also known as power choke coil. This inductor has high heat resistance and high reliability using metal composite core. The high vibration resistance as result of newly developed integral construction under severe reliability conditions of automotive and other strenuous applications. This inductors offers an excellent inductance stability using ferrous alloy magnetic material with low DC resistance of winding and low eddy current loss of the core. A gapless structure achieved with metal composite core.
SMD type
RoHS compliant
High bias current
High heat resistance
High efficiency and reliability
Low audible noise and low loss
