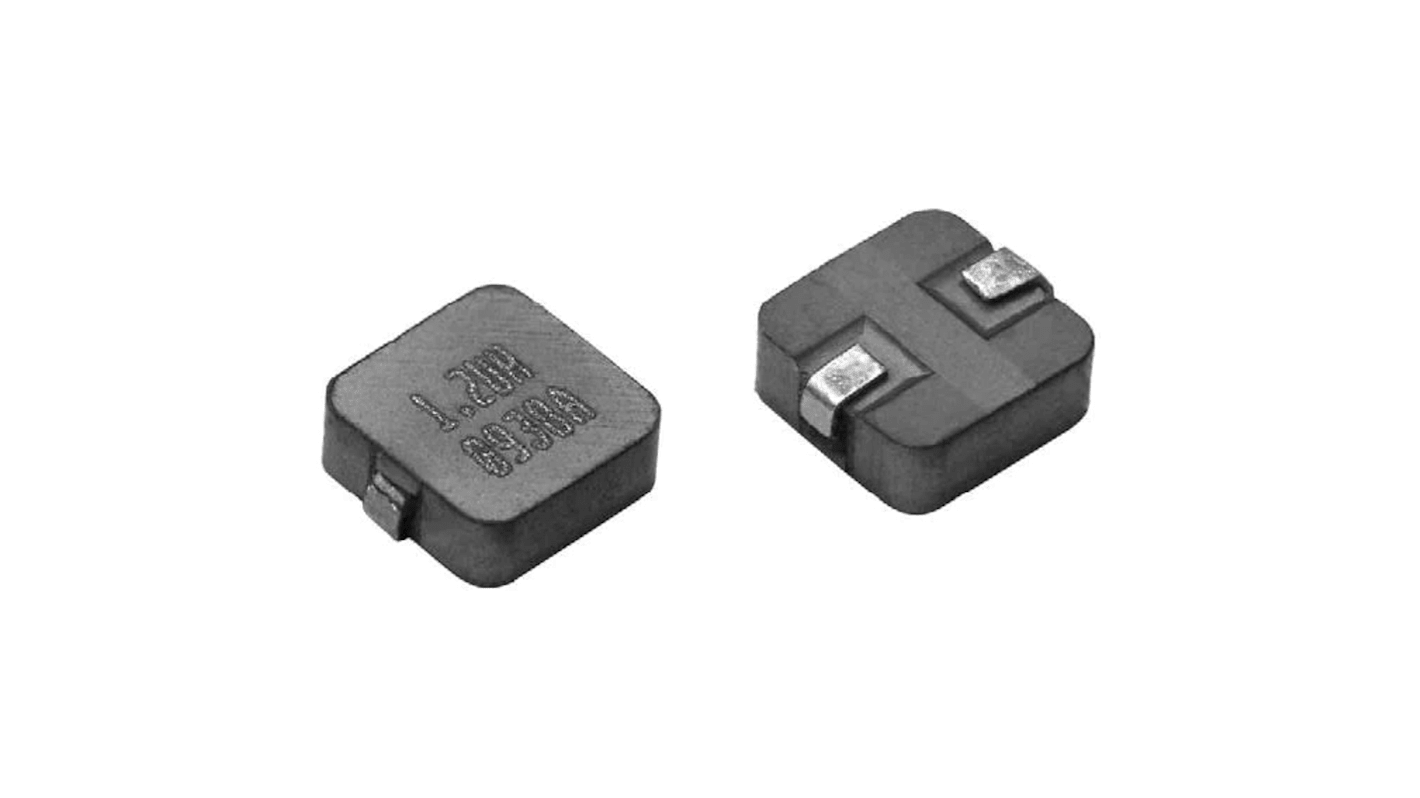

Vishay, IHLP, 1212 Shielded Surface Mount Inductor with a Metal Composite Core, 470 nH ±20 % 5.86 A Idc
- N° de stock RS:
- 248-8074
- Référence fabricant:
- IHLP1212ABEVR47MA1
- Fabricant:
- Vishay
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 248-8074
- Référence fabricant:
- IHLP1212ABEVR47MA1
- Fabricant:
- Vishay
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Vishay | |
| Inductance | 470 nH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 5.86A | |
| Package/Case | 1212 | |
| Length | 3.56mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 27.3mΩ | |
| Minimum Operating Temperature | -55°C | |
| Series | IHLP | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS Compliant | |
| Height | 1.2mm | |
| Core Material | Metal Composite | |
| Depth | 1.2mm | |
| Maximum Self Resonant Frequency | 157MHz | |
| Inductor Construction | Shielded | |
| Sélectionner tout | ||
|---|---|---|
Marque Vishay | ||
Inductance 470 nH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 5.86A | ||
Package/Case 1212 | ||
Length 3.56mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 27.3mΩ | ||
Minimum Operating Temperature -55°C | ||
Series IHLP | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS Compliant | ||
Height 1.2mm | ||
Core Material Metal Composite | ||
Depth 1.2mm | ||
Maximum Self Resonant Frequency 157MHz | ||
Inductor Construction Shielded | ||
- Pays d'origine :
- CN
The Vishay IHLP-1212AB-A1 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction. It has shielded construction and operating temperature is -55 °C to +125 °C.
Excellent DC to DC energy storage up to 5 MHz
Lowest DC resistance
