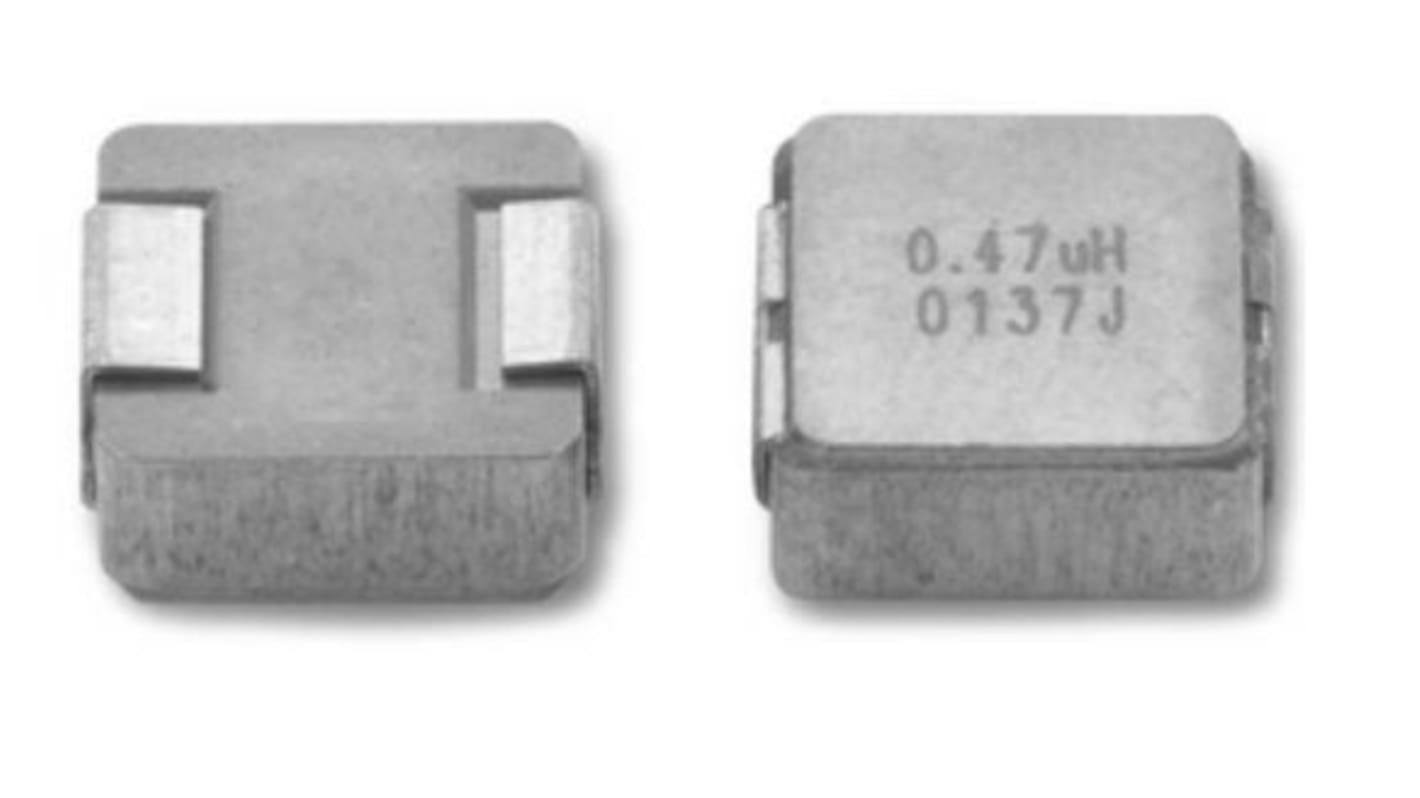

Vishay, IHLP, 2080 Shielded Surface Mount Inductor with a Metal Composite Core, 470 nH ±20 % 11.5 A Idc
- N° de stock RS:
- 223-7255
- Référence fabricant:
- IHLP2020BZERR47M01
- Fabricant:
- Vishay
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 ruban de 5 unités)*
4,14 €
(TVA exclue)
5,01 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Dernier stock RS
- 775 dernière(s) unité(s), prête(s) à l'envoi d'un autre centre de distribution
Unité | Prix par unité | le ruban* |
|---|---|---|
| 5 - 45 | 0,828 € | 4,14 € |
| 50 - 120 | 0,588 € | 2,94 € |
| 125 - 245 | 0,496 € | 2,48 € |
| 250 - 495 | 0,422 € | 2,11 € |
| 500 + | 0,406 € | 2,03 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 223-7255
- Référence fabricant:
- IHLP2020BZERR47M01
- Fabricant:
- Vishay
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Vishay | |
| Inductance | 470nH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 11.5A | |
| Package/Case | 2080 | |
| Length | 5.4mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 9.4mΩ | |
| Minimum Operating Temperature | -55°C | |
| Series | IHLP | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Surface Mount | |
| Standards/Approvals | JEDEC, RoHS | |
| Height | 2mm | |
| Core Material | Metal Composite | |
| Depth | 2mm | |
| Maximum Self Resonant Frequency | 98MHz | |
| Moulded | Yes | |
| Inductor Construction | Shielded | |
| Sélectionner tout | ||
|---|---|---|
Marque Vishay | ||
Inductance 470nH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 11.5A | ||
Package/Case 2080 | ||
Length 5.4mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 9.4mΩ | ||
Minimum Operating Temperature -55°C | ||
Series IHLP | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Termination Style Surface Mount | ||
Standards/Approvals JEDEC, RoHS | ||
Height 2mm | ||
Core Material Metal Composite | ||
Depth 2mm | ||
Maximum Self Resonant Frequency 98MHz | ||
Moulded Yes | ||
Inductor Construction Shielded | ||
The Vishay IHLP commercial inductors high saturation It handles high transient current spikes without saturation. It has ultra low buzz noise, due to composite construction and has shielded construction. It has 470 nH inductance.
RoHS compliant
Halogen free
