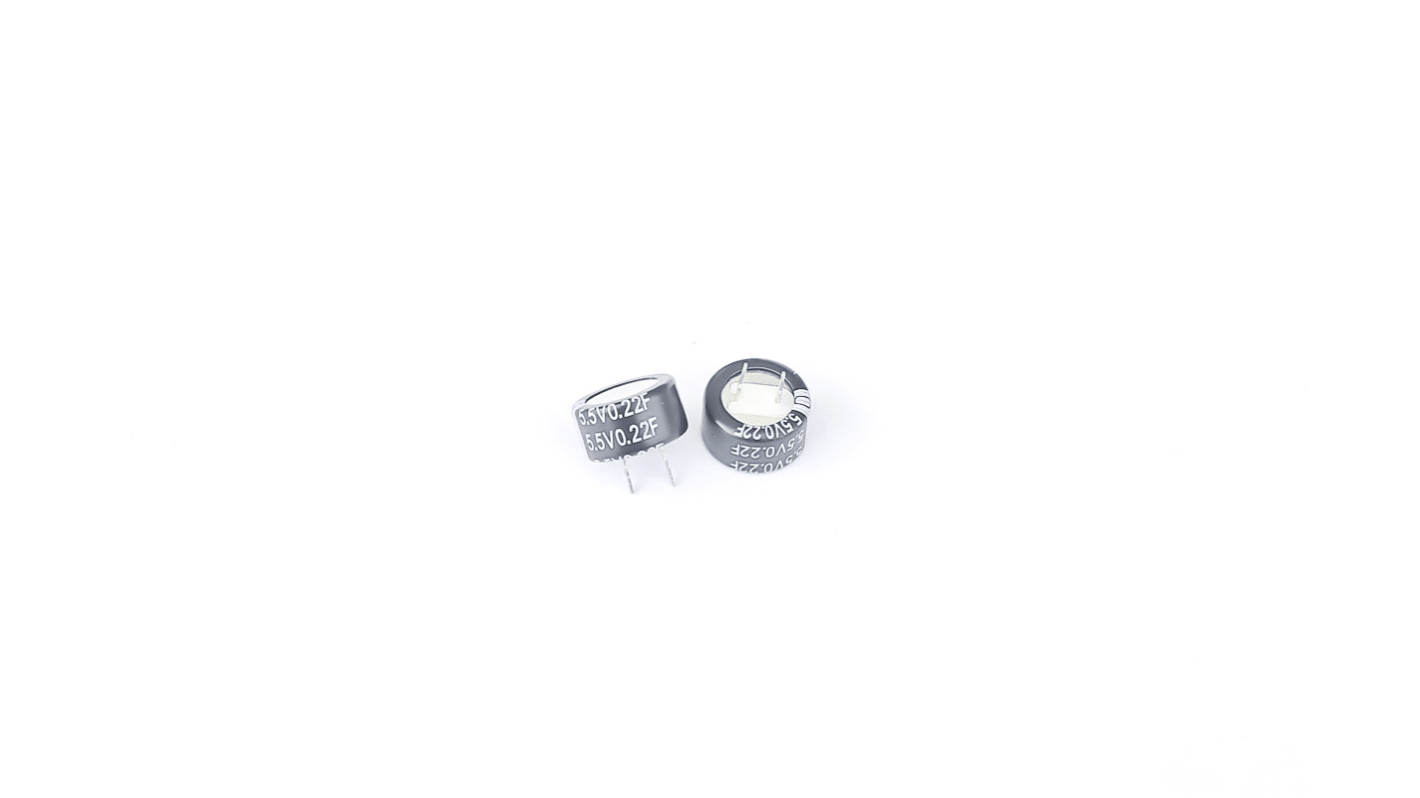

RS PRO 0.22 F Supercapacitor -20 → 80 % Tolerance 5.5V dc, Through Hole
- N° de stock RS:
- 184-5064
- Fabricant:
- RS PRO
Sous-total (1 plateau de 3600 unités)*
2 444,40 €
(TVA exclue)
2 959,20 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité | le plateau* |
|---|---|---|
| 3600 + | 0,679 € | 2 444,40 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 184-5064
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Supercapacitor | |
| Capacitance | 0.22F | |
| Voltage | 5.5V dc | |
| Mount Type | Through Hole | |
| Automotive Standard | No | |
| Polarity | Polar | |
| Diameter | 13mm | |
| Terminal Type | Solder | |
| Lead Pitch | 5mm | |
| Leakage Current | 5μA | |
| Equivalent Series Resistance ESR | 75mΩ | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Lifetime | 200000 Cycles | |
| Maximum Operating Temperature | 70°C | |
| Series | RS PRO | |
| Standards/Approvals | ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 | |
| Height | 13mm | |
| Tolerance | -20 → 80 % | |
| Capacitor Family | Electric Double Layer | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Supercapacitor | ||
Capacitance 0.22F | ||
Voltage 5.5V dc | ||
Mount Type Through Hole | ||
Automotive Standard No | ||
Polarity Polar | ||
Diameter 13mm | ||
Terminal Type Solder | ||
Lead Pitch 5mm | ||
Leakage Current 5μA | ||
Equivalent Series Resistance ESR 75mΩ | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Lifetime 200000 Cycles | ||
Maximum Operating Temperature 70°C | ||
Series RS PRO | ||
Standards/Approvals ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 | ||
Height 13mm | ||
Tolerance -20 → 80 % | ||
Capacitor Family Electric Double Layer | ||
- Pays d'origine :
- CN
RS PRO EDLC Supercapacitor
The RS PRO NF series 0.22F EDLC supercapacitor has a voltage rating of 5.5V and leakage current (24h) of ≤0.005mA. This electric double layer capacitor is suitable for applications like general industrial equipment.
Features and Benefits
• Tolerance of -20% to 80%
• Operating temperature ranges from -40°C to 70°C
• AC impedance of 50ohm and DC impedance of 75ohm
Applications
• UPS (backup power supplies)
• Solar battery operated circuits
• Motor drives (quick charging) base stations
• Electronic meters
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
