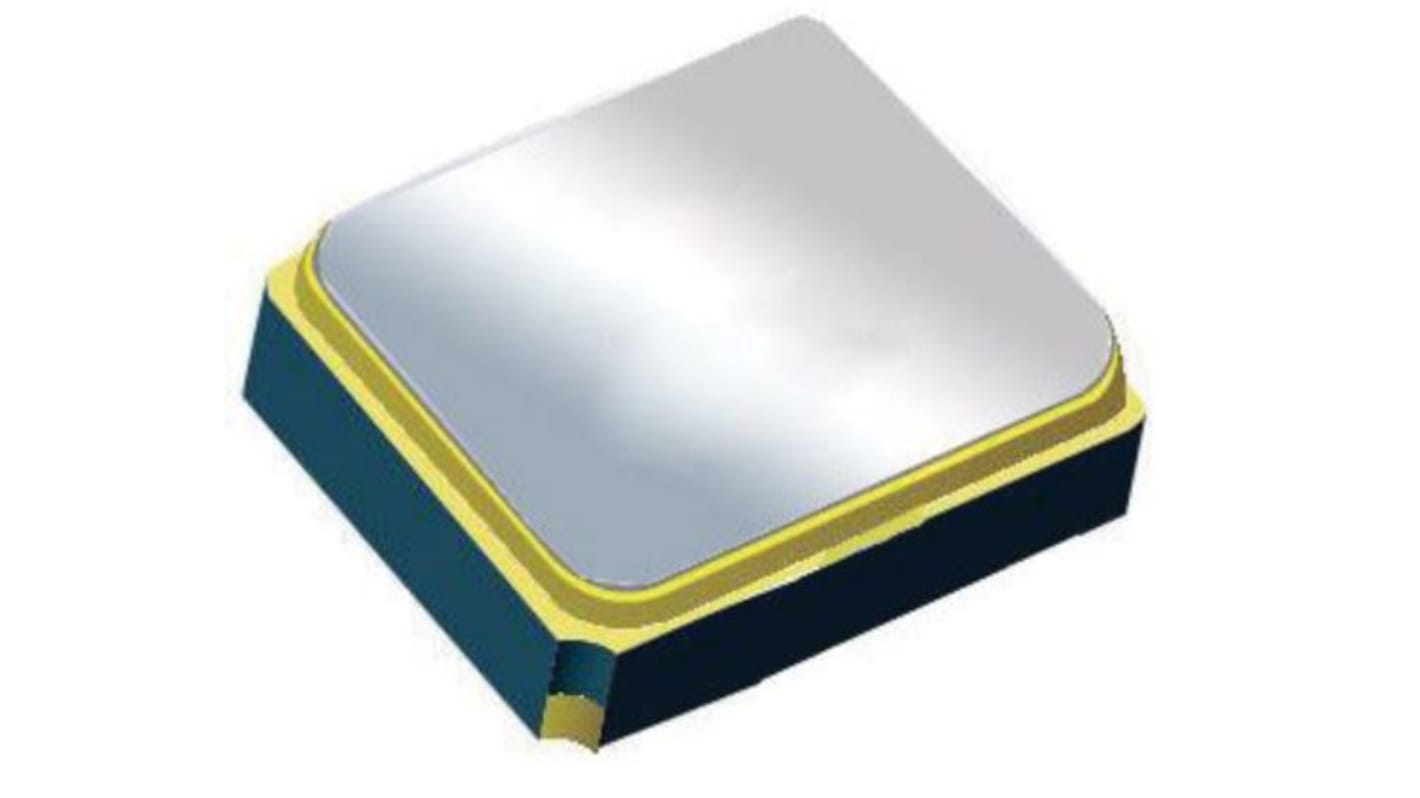

Abracon, AFS20A02, Signal Filter, 3V 1.575 GHz, Surface 0.9 mm 2 mm, 1.6 mm
- N° de stock RS:
- 250-5203
- Référence fabricant:
- AFS20A02-1575.42-T3
- Fabricant:
- Abracon
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 250-5203
- Référence fabricant:
- AFS20A02-1575.42-T3
- Fabricant:
- Abracon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Abracon | |
| Product Type | Signal Filter | |
| Series | AFS20A02 | |
| Maximum Voltage | 3V | |
| Mount Type | Surface | |
| Operating Frequency | 1.575 GHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 2mm | |
| Height | 0.9mm | |
| Depth | 1.6mm | |
| Standards/Approvals | ISO 9001 / QS 9000 | |
| Sélectionner tout | ||
|---|---|---|
Marque Abracon | ||
Product Type Signal Filter | ||
Series AFS20A02 | ||
Maximum Voltage 3V | ||
Mount Type Surface | ||
Operating Frequency 1.575 GHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 2mm | ||
Height 0.9mm | ||
Depth 1.6mm | ||
Standards/Approvals ISO 9001 / QS 9000 | ||
The Abracon makes surface mount 1575.42MHz SAW Filter. It has low insertion loss and excellent selectivity with high out-of-band rejection. It operates on 1575.42 MHz frequency. These filters are used in cellular phones, wireless communication and remote controller.
2.0 x 1.6 x 0.9 mm low profile SMT package
Input Power Level +10 dBm max and DC Permissive Voltage 3 V DC max
Operating Temperature Range is -40ºC to + 85ºC
