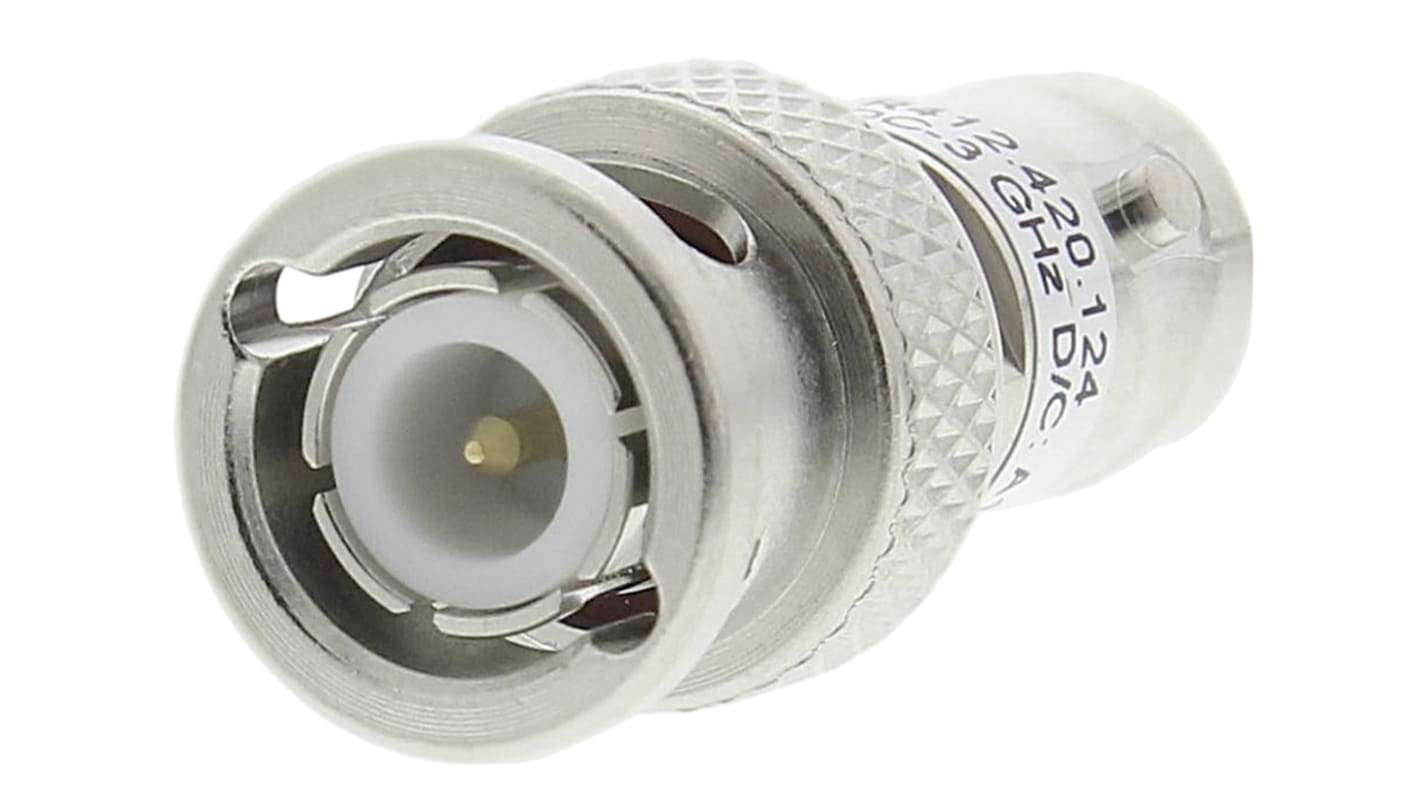

Radiall R412420124 RF AttenuatorStraight 20 dBFemaleMale
- N° de stock RS:
- 296-8043
- Référence fabricant:
- R412420124
- Fabricant:
- Radiall
Offre groupée disponible
Sous-total (1 unité)*
118,39 €
(TVA exclue)
143,25 €
(TVA incluse)
Ajouter 1 unité pour bénéficier d'une livraison gratuite
Temporairement en rupture de stock
- 6 unité(s) expédiée(s) à partir du 23 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 118,39 € |
| 10 - 49 | 106,52 € |
| 50 - 99 | 100,62 € |
| 100 - 249 | 88,79 € |
| 250 + | 82,87 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 296-8043
- Référence fabricant:
- R412420124
- Fabricant:
- Radiall
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Radiall | |
| Interface Type | BNC Plug to BNC Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 3GHz | |
| Body Plating | Nickel | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Brass, Beryllium Copper Alloy | |
| Low Power | No | |
| Minimum Operating Temperature | -40°C | |
| Minimum Frequency | 2GHz | |
| Maximum Attenuation | 20dB | |
| Orientation | Straight | |
| Connector Type | BNC | |
| Maximum Operating Temperature | 85°C | |
| Connector Gender A | Female | |
| Series | ATTENUATOR | |
| Standards/Approvals | No | |
| Connector Gender B | Male | |
| Sélectionner tout | ||
|---|---|---|
Marque Radiall | ||
Interface Type BNC Plug to BNC Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 3GHz | ||
Body Plating Nickel | ||
Contact Plating Gold over Nickel | ||
Contact Material Brass, Beryllium Copper Alloy | ||
Low Power No | ||
Minimum Operating Temperature -40°C | ||
Minimum Frequency 2GHz | ||
Maximum Attenuation 20dB | ||
Orientation Straight | ||
Connector Type BNC | ||
Maximum Operating Temperature 85°C | ||
Connector Gender A Female | ||
Series ATTENUATOR | ||
Standards/Approvals No | ||
Connector Gender B Male | ||
- Pays d'origine :
- FR
Radiall 50 Ohm RF Coaxial BNC Attenuators
50 ohm BNC plug to socket RF coaxial attenuators with a PTFE dielectric, nickel plated brass body and gold plated centre contact. These 50 ohm BNC plug to socket RF coaxial attenuators have an operating frequency range of 3 GHz and a 1W average power rating at 25°C.
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
