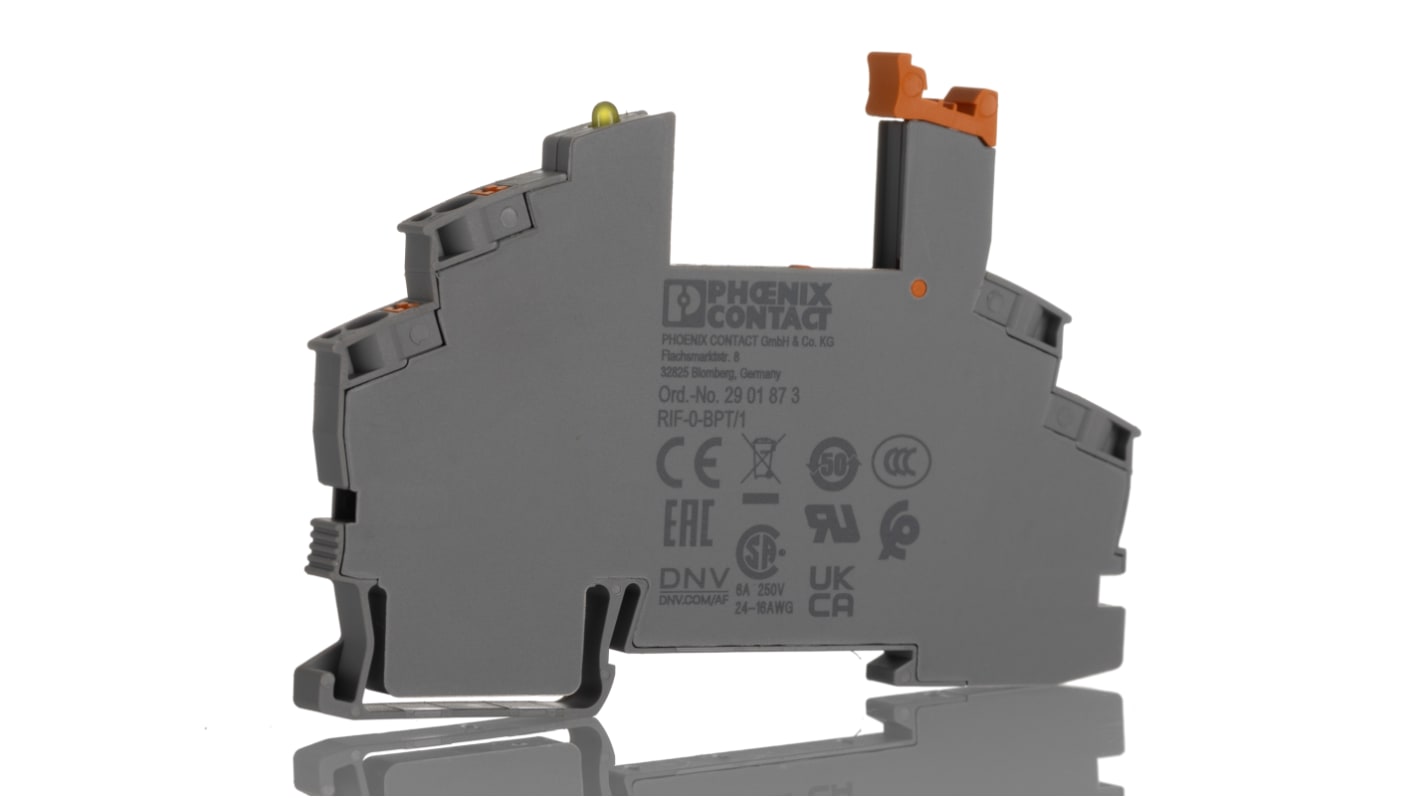

Phoenix Contact RIF-0-BPT/1 1 Pin 12 → 24V dc DIN Rail Relay Base

Voir l’ensemble des Relay Sockets

Sous-total (1 paquet de 10 unités)*

34,17 €

(TVA exclue)

41,35 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 70 unité(s) expédiée(s) à partir du 02 mars 2026
  • Plus 70 unité(s) expédiée(s) à partir du 02 mars 2026
  • Plus 270 unité(s) expédiée(s) à partir du 02 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
le paquet*
10 +3,417 €34,17 €

*Prix donné à titre indicatif

N° de stock RS:
224-7581
Référence fabricant:
2901873
Fabricant:
Phoenix Contact
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Phoenix Contact

Voltage

12 → 24V dc

Accessory Type

Relay Base

Series

RIF-0-BPT/1

Current Rating

8A

Mounting Type

DIN Rail

Number of Contacts

1

Pays d'origine :
CN

Phoenix Contact RIF-0-BPT/1 Series Relay Base, 1 Contact, 12 to 24 V DC - 2901873


This relay base from Phoenix Contact provides a reliable solution for controlling circuits with high voltage requirements. It is designed for use with miniature power relays with a single contact. The base operates within a voltage range of 12 to 24 V DC, making it suitable for various industrial settings.

Features & Benefits


• Push-in connection for easy installation on NS 35/7.5 rails
• Damping diode for protective circuit
• Grey housing with a UL 94 V2 flammability rating
• Comes with necessary approvals from DNV GL, CSA, PRS, LR, UL Recognised, and EAC

Applications


• Suitable for automation systems requiring reliable relay bases
• Ideal for electrical control panels in industrial setups
• Used in conjunction with compatible relays for efficient circuit control
• Ensures safety and functionality in high-voltage applications
• Provides a secure mounting solution for power relays

Can it operate under extreme temperatures?


Yes, it can operate in temperatures ranging from -40°C to 85°C.

Is it compatible with all miniature power relays?


The relay base is designed to work with relays with 1 N/O contact or similar solid-state relays.

Will it fit on standard DIN rails?


Yes, the base is specifically designed for mounting on NS 35/7.5 rails.

What are the colour options available?


The relay base comes in a standard grey colour.

Do I need additional accessories for installation?


Basic accessories such as end clamps and insulating sleeves are available for enhanced functionality.
