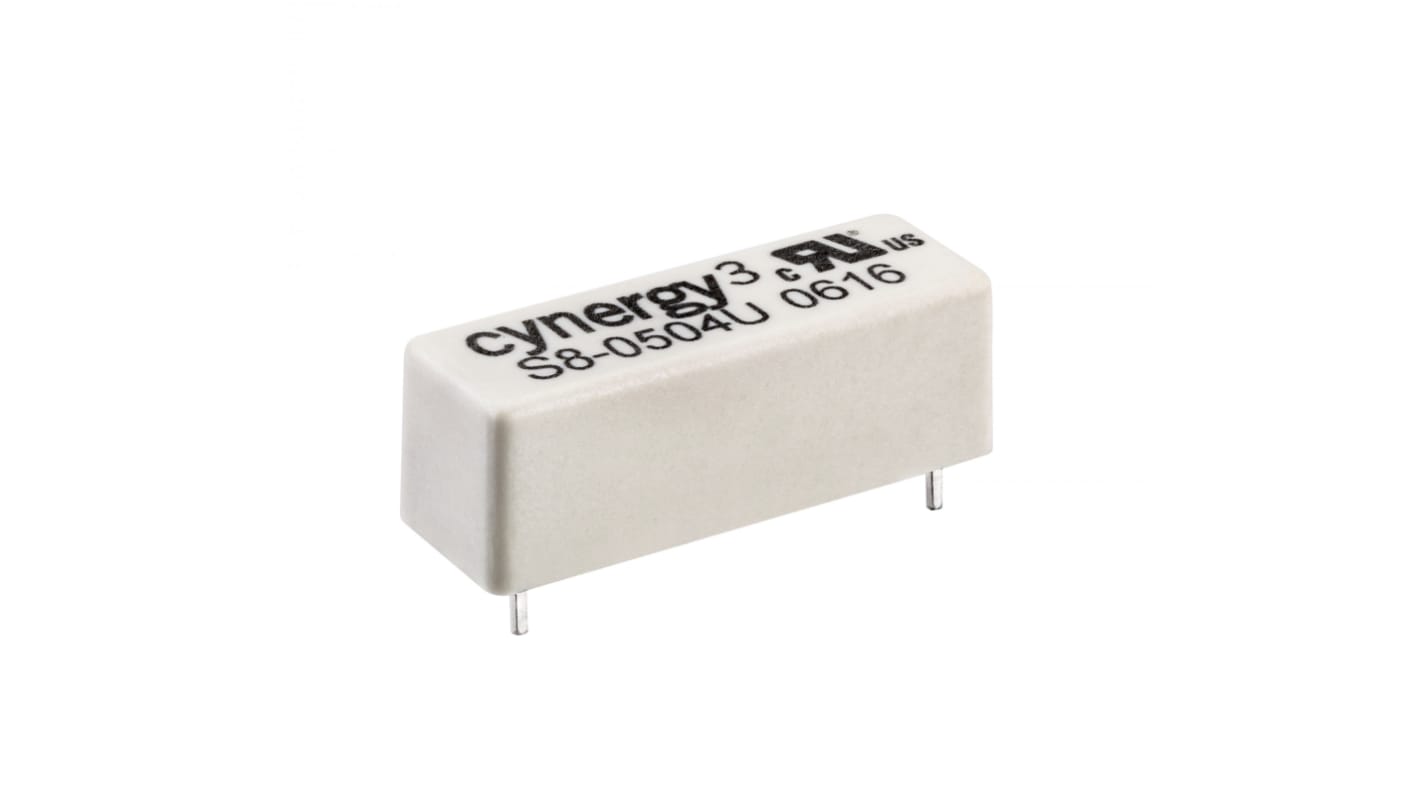

Cynergy3 PCB Reed Relay, 5V dc Coil, SPST, 350V dc Max, 1A Max, 120 Ω
- N° de stock RS:
- 124-5133
- Référence fabricant:
- S8-0504U/RS
- Fabricant:
- Cynergy3
Sous-total (1 unité)*
15,65 €
(TVA exclue)
18,94 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 03 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 15,65 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 124-5133
- Référence fabricant:
- S8-0504U/RS
- Fabricant:
- Cynergy3
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Cynergy3 | |
| Contact Configuration | SPST | |
| Product Type | Reed Relay | |
| Mount Type | PCB | |
| Coil Power | 100VA | |
| Coil Resistance | 120Ω | |
| Terminal Type | PCB Terminal | |
| Operating Time | 1ms | |
| Switching Power | 100VA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UR | |
| Series | S8 (UL) | |
| Length | 30mm | |
| Height | 12mm | |
| Isolation Coil To Contact | 7kV | |
| Latching | No | |
| Contact Resistance | 150mΩ | |
| Sélectionner tout | ||
|---|---|---|
Marque Cynergy3 | ||
Contact Configuration SPST | ||
Product Type Reed Relay | ||
Mount Type PCB | ||
Coil Power 100VA | ||
Coil Resistance 120Ω | ||
Terminal Type PCB Terminal | ||
Operating Time 1ms | ||
Switching Power 100VA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UR | ||
Series S8 (UL) | ||
Length 30mm | ||
Height 12mm | ||
Isolation Coil To Contact 7kV | ||
Latching No | ||
Contact Resistance 150mΩ | ||
- Pays d'origine :
- GB
Miniature high voltage relay
The Cynergy3 S8 series miniature high voltage reed relay is perfect for applications where space saving is a prime consideration. To give improved isolation between the high voltage contacts and the low voltage coil S8 miniature reed relays have the coil pins positioned near the centre of the relay while the contact pins are near the ends.
Space saving package
Isolation Voltage across contacts 4kV or 5kV (dependant on coil voltage)
Isolation Voltage 7kV contact to coil
2.5A carry current
Cynergy3 - S8 relay series
