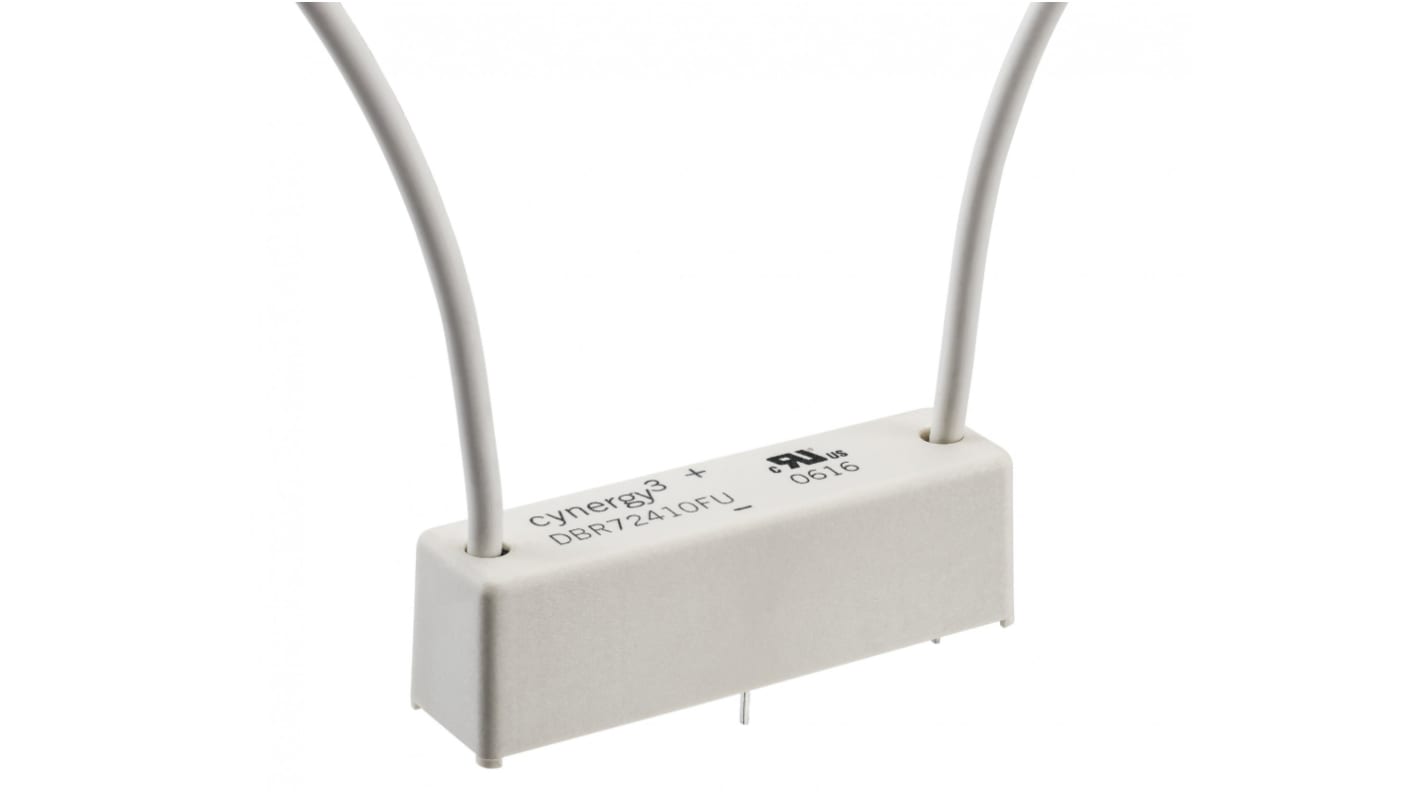

Sensata / Cynergy3 PCB Reed Relay, 24 V dc Coil, SPNC, 7000 V dc Max, 2 A Max, 925 Ω
- N° de stock RS:
- 124-5113
- Référence fabricant:
- DBT72410FU/RS
- Fabricant:
- Sensata / Cynergy3
Offre groupée disponible
Sous-total (1 unité)*
81,33 €
(TVA exclue)
98,41 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Dernier stock RS
- 2 dernière(s) unité(s), prête(s) à l'envoi
Unité | Prix par unité |
|---|---|
| 1 - 24 | 81,33 € |
| 25 - 49 | 77,26 € |
| 50 - 99 | 73,44 € |
| 100 - 249 | 66,03 € |
| 250 + | 59,45 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 124-5113
- Référence fabricant:
- DBT72410FU/RS
- Fabricant:
- Sensata / Cynergy3
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Sensata / Cynergy3 | |
| Product Type | Reed Relay | |
| Contact Configuration | SPNC | |
| Mount Type | PCB | |
| Coil Power | 50W | |
| Coil Resistance | 925Ω | |
| Switching Power | 50W | |
| Operating Time | 2ms | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 18.5mm | |
| Length | 60mm | |
| Series | DB (UL) | |
| Standards/Approvals | UL Approved | |
| Isolation Coil To Contact | 17kV | |
| Latching | No | |
| Contact Resistance | 250mΩ | |
| Sélectionner tout | ||
|---|---|---|
Marque Sensata / Cynergy3 | ||
Product Type Reed Relay | ||
Contact Configuration SPNC | ||
Mount Type PCB | ||
Coil Power 50W | ||
Coil Resistance 925Ω | ||
Switching Power 50W | ||
Operating Time 2ms | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Height 18.5mm | ||
Length 60mm | ||
Series DB (UL) | ||
Standards/Approvals UL Approved | ||
Isolation Coil To Contact 17kV | ||
Latching No | ||
Contact Resistance 250mΩ | ||
- Pays d'origine :
- GB
Cynergy 3 DA (UL) Series Reed Relay
The UL approved reed relays have very high isolation voltages. UL reed relays are ideal for applications that require high reliability, these include cardiac defibrillators, test equipment and high voltage power supplies.
Features and Benefits
10kV isolation
Low contact resistance
Panel mount or PCB
HV connections through Flying Leads, Solder Turret (wire wrap) or 1/4inch Spade Terminals
AC characteristics
Cynergy3 DA (UL) Series Reed Relay
Note
The rhodium contact relays have low contact resistance, the tungsten contact relays can switch to higher voltages.
Approvals
UL
