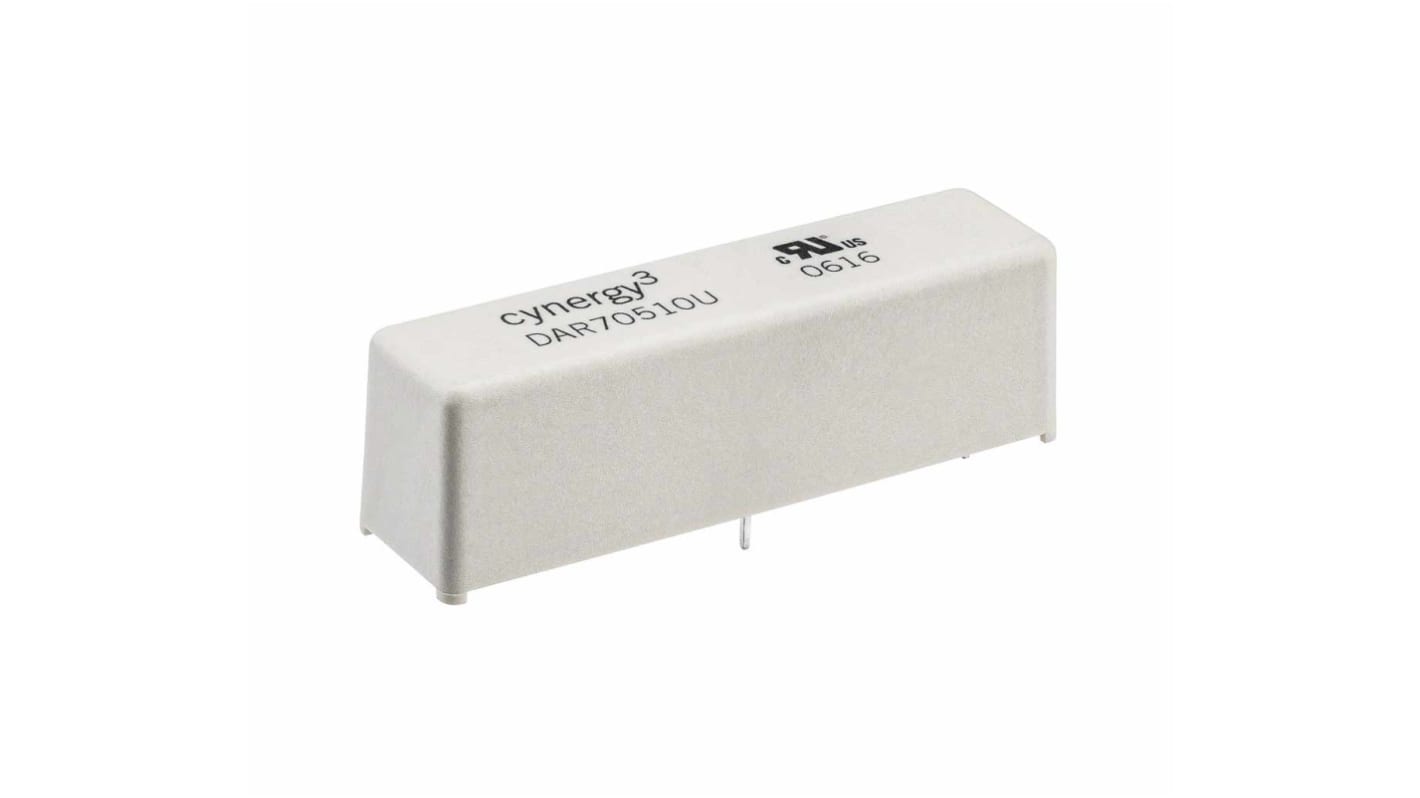

Sensata Cynergy3 PCB Mount Reed Relay, 5V dc Coil, 7000V Max, 2 A Max, 38Ω

Voir l’ensemble des Reed Relays

Sous-total (1 boîte de 20 unités)*

893,84 €

(TVA exclue)

1 081,55 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • Expédition à partir du 04 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Boîte(s)
La Boite
Prix par unité*
1 +893,84 €44,692 €

*Prix donné à titre indicatif

N° de stock RS:
189-2162
Référence fabricant:
DBT70505U
Fabricant:
Sensata / Cynergy3
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Sensata / Cynergy3

Coil Voltage

5V dc

Mounting Type

PCB Mount

Maximum Switching Current AC

2 A

Maximum Switching Current DC

2 A

Maximum Switching Voltage AC

7000V

Maximum Switching Voltage DC

7000V

Coil Resistance

38Ω

Length

60mm

Height

18.5mm

Depth

15.8mm

Dimensions

60 x 15.8 x 18.5mm

Isolation Coil To Contact

17kV

Operating Time Including Bounce

2ms

Terminal Type

PCB Pin

Operating Temperature Range

-20 → +70°C

Contact Material

Tungsten

Maximum Switching Power DC

50 W

Electrical Life

10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles

Maximum Operating Temperature

+70°C

Life

10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles

Minimum Operating Temperature

-20°C

Standards Met

UL Approved

Number of Poles

1

Contact Resistance

250 mΩ

Special Features

7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt

Relay Switching Classification

General Purpose Relay

Very high isolation voltages (up to 10kV) are achieved through the use of high vacuum reed switches with Tungsten or Rhodium contacts and make these relays suitable for high reliability applications, such as cardiac defibrillators, test equipment and high voltage power supplies. The Tungsten contact relays can switch high voltages, up to 7000Vdc/ac peak to peak PCB or Panel Mount, via Nylon studs, versions are available. Connection options, for the HV, include PCB, solder turret(wire wrap), flying lead and 0.25” spade terminals.

Choice of 10kV, 7.5kV or 5kV isolation
Low contact resistance
PCB or panel mount
HV connections via flying leads, solder turret (wire wrap), or 1/4" spade terminals
Excellent AC characteristics
