EAO 84 Series Illuminated Push Button Switch, Momentary, Panel, 22.5 mm Cutout, SPST, Yellow LED, IP67, 42 V dc 42 V ac
- N° de stock RS:
- 762-2477
- Référence fabricant:
- K84-603.4609
- Fabricant:
- EAO
Sous-total (1 unité)*
31,64 €
(TVA exclue)
38,28 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 7 unité(s) prête(s) à être expédiée(s)
- Plus 45 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 31,64 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 762-2477
- Référence fabricant:
- K84-603.4609
- Fabricant:
- EAO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | EAO | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Silver | |
| Illuminated | Yes | |
| Series | 84 | |
| Panel Cutout Size | 22.5 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| LED Colour | Yellow | |
| IP Rating | IP67 | |
| Actuator Style | Button | |
| Contact DC Voltage | 42V dc | |
| Contact AC Voltage | 42V ac | |
| Switch Configuration | MOM | |
| Standards/Approvals | CB, CE, RoHS, UL | |
| Length | 300mm | |
| Switch Contact Current | 100mA | |
| Sélectionner tout | ||
|---|---|---|
Marque EAO | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Silver | ||
Illuminated Yes | ||
Series 84 | ||
Panel Cutout Size 22.5 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
LED Colour Yellow | ||
IP Rating IP67 | ||
Actuator Style Button | ||
Contact DC Voltage 42V dc | ||
Contact AC Voltage 42V ac | ||
Switch Configuration MOM | ||
Standards/Approvals CB, CE, RoHS, UL | ||
Length 300mm | ||
Switch Contact Current 100mA | ||
- Pays d'origine :
- CH

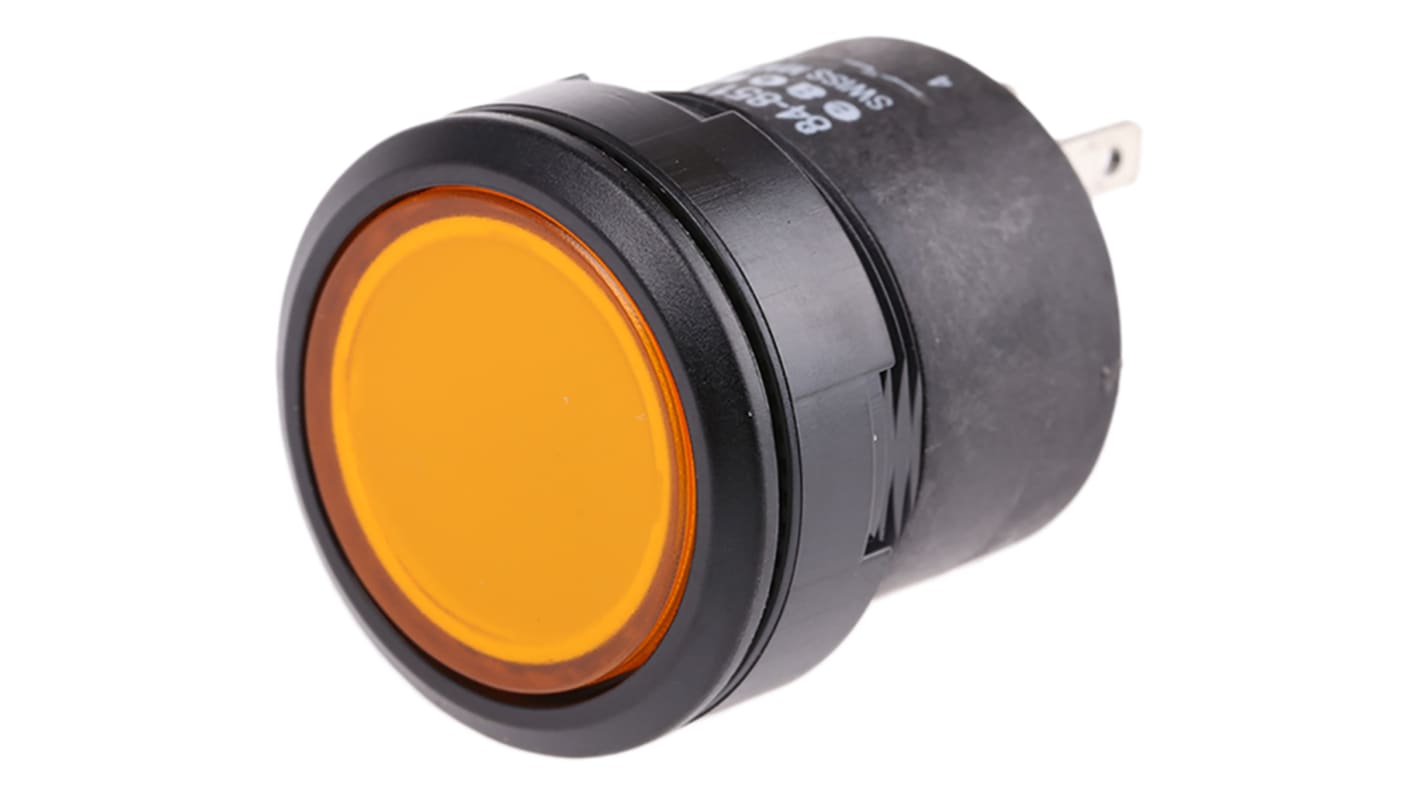

EAO Push Button Switch, 25mm Front Diameter, Yellow Lens Colour - 84 Series - K84-603.4609
Are you looking for an easy way to control a circuit in your industrial process? Take charge with this EAO push button switch. Pressing on its flat round face causes the contacts at the bottom to either make or break an electrical circuit. Stopping this action is as simple as removing pressure from the device's surface, so it's a good choice for temporary machine activation. A bright LED bulb lets you know whether your equipment is on or off, so personnel can determine operating status at a glance.
• Maximum switching voltage of 42V AC/DC for use in powerful electrical systems
• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• Gold-plated contacts offer a high level of conductivity and resistance to corrosion for a reliable connection
Applications
• Reset switches
• Lighting networks
• Shower systems
• Platform lifts
What's the current rating of this push button?
This push button has a low current rating of 10mA, so it minimises energy use in your electrical system.
