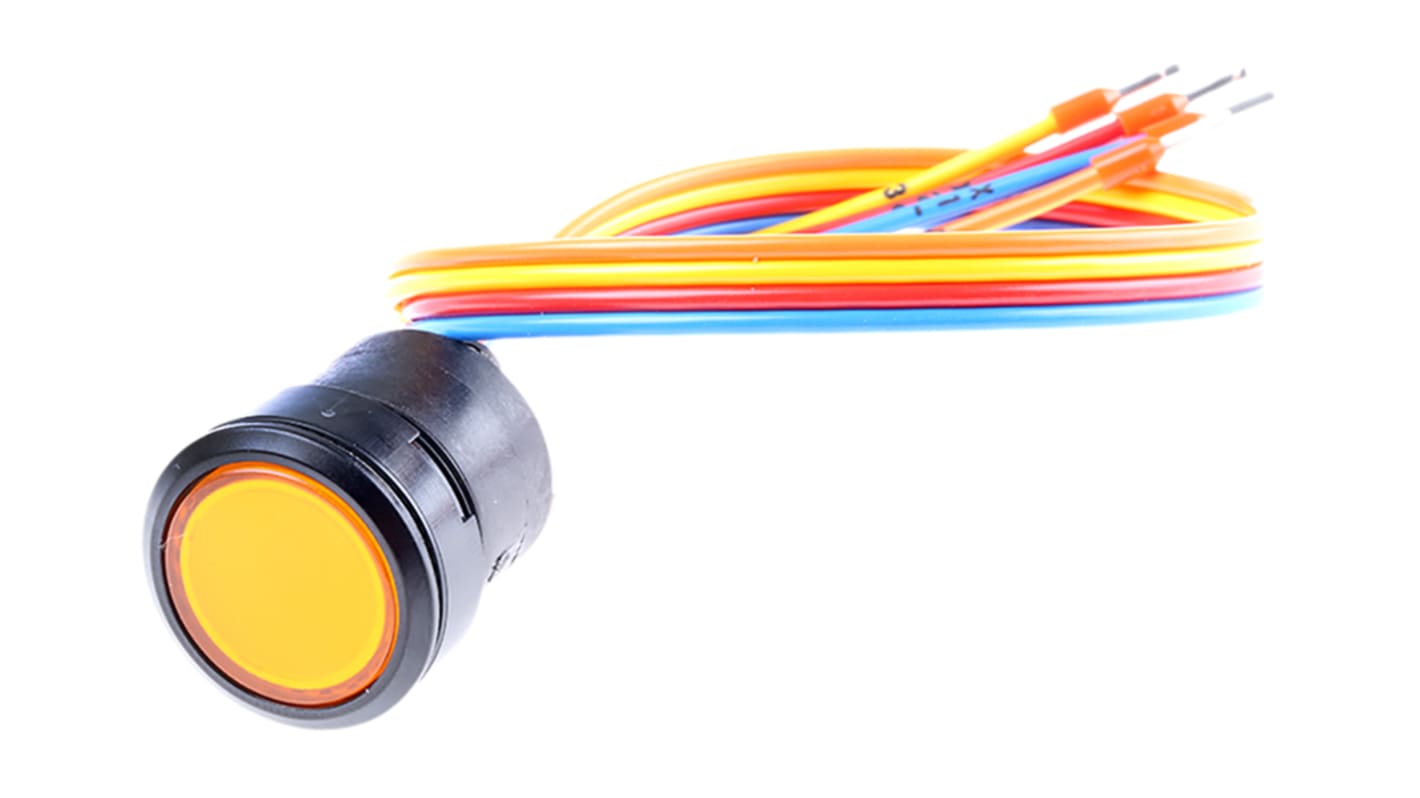

EAO Illuminated Push Button Switch, Momentary, Panel, 22.5 mm Cutout, SPST, Yellow LED, IP67, 42 V dc 42 V ac
- N° de stock RS:
- 762-2470
- Référence fabricant:
- K84-603.4709S
- Fabricant:
- EAO
Offre groupée disponible
Sous-total (1 unité)*
36,91 €
(TVA exclue)
44,66 €
(TVA incluse)
Ajouter 3 unités pour bénéficier d'une livraison gratuite
En stock
- 1 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 36,91 € |
| 10 - 49 | 33,33 € |
| 50 - 99 | 29,71 € |
| 100 - 249 | 27,39 € |
| 250 + | 26,46 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 762-2470
- Référence fabricant:
- K84-603.4709S
- Fabricant:
- EAO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | EAO | |
| Product Type | Push Button Switch | |
| Actuator Colour | Yellow | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cutout Size | 22.5 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Flying Lead | |
| LED Colour | Yellow | |
| IP Rating | IP67 | |
| Contact DC Voltage | 42V dc | |
| Contact AC Voltage | 42V ac | |
| Actuator Style | Button | |
| Switch Configuration | 1 NO | |
| Width | 25 mm | |
| Standards/Approvals | CB, CE, RoHS, UL | |
| Length | 300mm | |
| Switch Contact Current | 100 mA | |
| Sélectionner tout | ||
|---|---|---|
Marque EAO | ||
Product Type Push Button Switch | ||
Actuator Colour Yellow | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cutout Size 22.5 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Flying Lead | ||
LED Colour Yellow | ||
IP Rating IP67 | ||
Contact DC Voltage 42V dc | ||
Contact AC Voltage 42V ac | ||
Actuator Style Button | ||
Switch Configuration 1 NO | ||
Width 25 mm | ||
Standards/Approvals CB, CE, RoHS, UL | ||
Length 300mm | ||
Switch Contact Current 100 mA | ||
- Pays d'origine :
- CH
Full Face Flush Illuminated Switch
Brought to you by EAO, this selection of illuminated push-button switches feature full-face, high brightness LED illumination. Low profile with a flush fitting, these illuminated switches also assure a high degree of environmental protection.
Features and Benefits:
• IP rating: IP67
• Contact rating: 200mA @ 42Vac/dc (Max. power 2W)
• Low profile switch; 2mm high
• Depth behind panel: 31mm
• LED Voltage: 24V dc
• Gold plated N/O contacts
