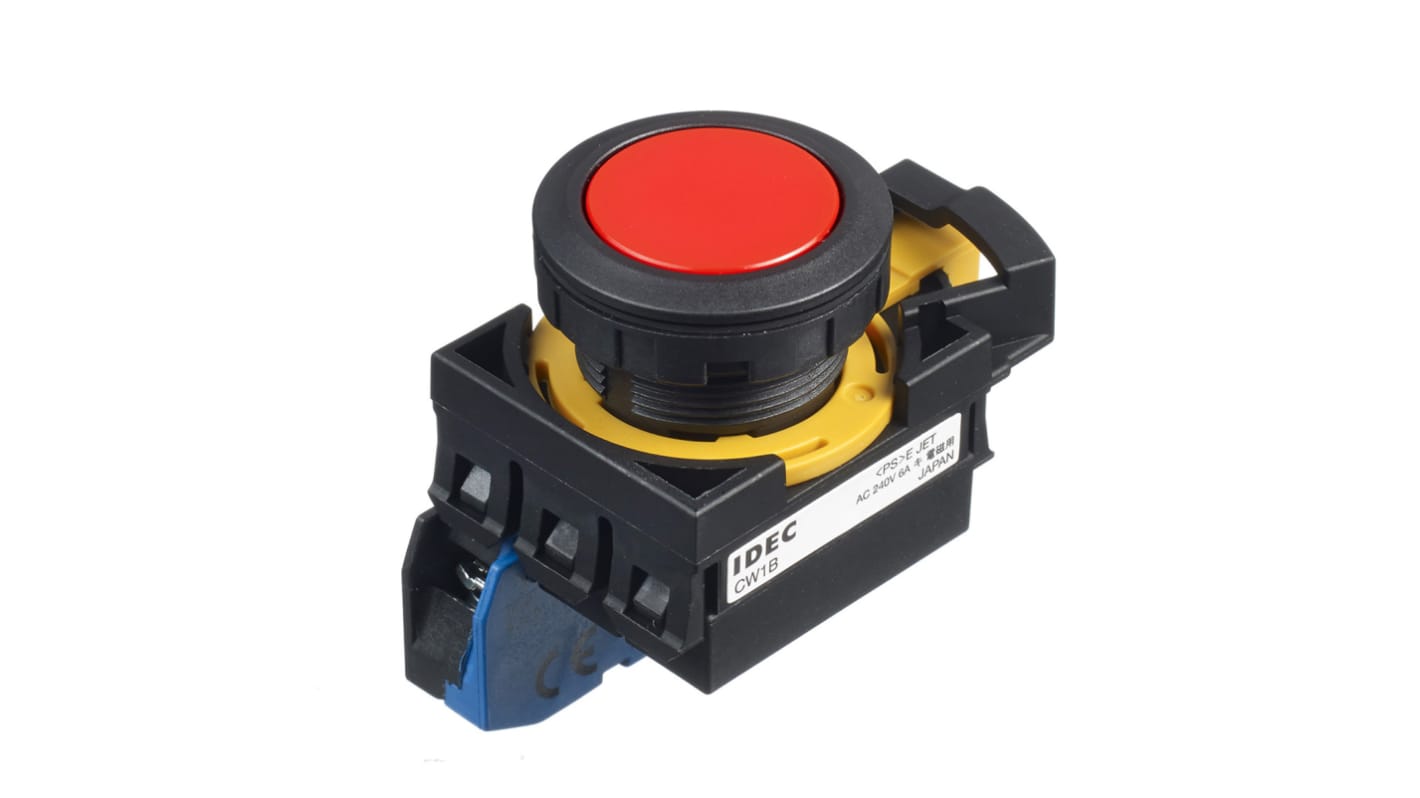

Idec CW Series Illuminated Push Button Switch, Maintained, Panel, 22 mm Cutout, SPST, IP65
- N° de stock RS:
- 168-2691
- Référence fabricant:
- CW1B-A1E10R
- Fabricant:
- Idec
Sous-total (1 unité)*
21,87 €
(TVA exclue)
26,46 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 07 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 21,87 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 168-2691
- Référence fabricant:
- CW1B-A1E10R
- Fabricant:
- Idec
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Idec | |
| Actuator Colour | Red | |
| Product Type | Push Button Switch | |
| Switch Operation | Maintained | |
| Illuminated | Yes | |
| Series | CW | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC 60947-5-1UL508CSA C22.2 No.14UL/c-UL File No. E68961EN60947-5-1EU Low Voltage DirectiveGB14048.5 | |
| Switch Contact Current | 10 A | |
| Sélectionner tout | ||
|---|---|---|
Marque Idec | ||
Actuator Colour Red | ||
Product Type Push Button Switch | ||
Switch Operation Maintained | ||
Illuminated Yes | ||
Series CW | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC 60947-5-1UL508CSA C22.2 No.14UL/c-UL File No. E68961EN60947-5-1EU Low Voltage DirectiveGB14048.5 | ||
Switch Contact Current 10 A | ||
- Pays d'origine :
- JP
The CW series gives a sleek, stylish image to your machines or control panels. The surface is safer with less chance of unexpected operation or accidents by hitting the projections, and also is cleaner with less dust build-up.
Flush silhouette switches
34.5mm depth behind the panel
locking removable contacts
Metallic/Block plastic bezels
light duty switches
