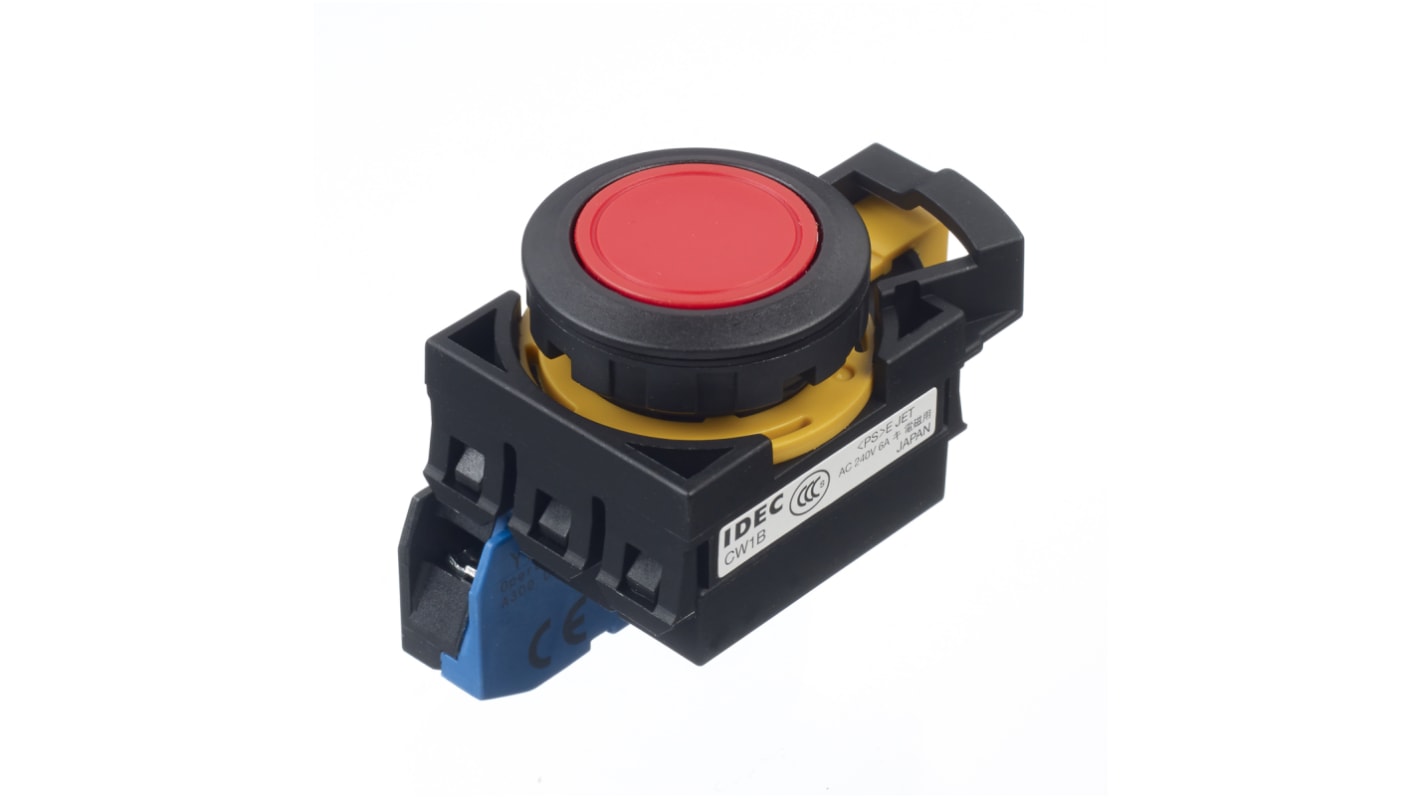

Idec IDEC CW Series Push Button Switch, Momentary, Panel, 22 mm Cutout
- N° de stock RS:
- 831-8043
- Référence fabricant:
- CW1B-M1E10R
- Fabricant:
- Idec
Offre groupée disponible
Sous-total (1 unité)*
16,92 €
(TVA exclue)
20,47 €
(TVA incluse)
Ajouter 5 unités pour bénéficier d'une livraison gratuite
Informations sur le stock actuellement non accessibles
Unité | Prix par unité |
|---|---|
| 1 - 4 | 16,92 € |
| 5 - 11 | 16,43 € |
| 12 + | 15,89 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 831-8043
- Référence fabricant:
- CW1B-M1E10R
- Fabricant:
- Idec
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Idec | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Actuator Colour | Red | |
| Illuminated | No | |
| Series | IDEC CW | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Round | |
| Maximum Operating Temperature | 60°C | |
| Switch Contact Current | 10 A | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Idec | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Actuator Colour Red | ||
Illuminated No | ||
Series IDEC CW | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Round | ||
Maximum Operating Temperature 60°C | ||
Switch Contact Current 10 A | ||
Standards/Approvals No | ||
IDEC CW 22mm Momentary Flush Push Buttons
The CW series of momentary flush push buttons from IDEC are designed to offer a heavy-duty rugged solution to panel mount control applications perfect for use with in harsh wearing industrial environments. The aesthetics of the push buttons have also been deeply considered leading to a sleek, stylish and low profile product when panel mounted. The momentary flush push buttons feature an IP65 level of ingress protection for the front of panel components and IP20 level of ingress protection for the terminal covers. A protected locking lever provides the ability to visually check the contact block is installed correctly along with preventing unexpected release.
Innovative protected plastic locking lever
Compact and light-weight
Two action removable contact blocks
Sleek, stylish and low profile
