Vishay TSMP77000 PIR Sensor 1.8 m 2.5 V 6V 4 Heimdall
- N° de stock RS:
- 244-4797
- Référence fabricant:
- TSMP77000TT
- Fabricant:
- Vishay
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 244-4797
- Référence fabricant:
- TSMP77000TT
- Fabricant:
- Vishay
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Vishay | |
| Product Type | PIR Sensor | |
| Maximum Output Current | 5mA | |
| Maximum Output Voltage | 6.3V | |
| Sensing Distance | 1.8m | |
| Output Type | Active Low | |
| Mount Type | Surface | |
| Package Type | Heimdall | |
| Pin Count | 4 | |
| Length | 6.8mm | |
| Height | 3mm | |
| Width | 3.2mm | |
| Maximum Supply Voltage | 6V | |
| Series | TSMP77000 | |
| Minimum Supply Voltage | 2.5V | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Vishay | ||
Product Type PIR Sensor | ||
Maximum Output Current 5mA | ||
Maximum Output Voltage 6.3V | ||
Sensing Distance 1.8m | ||
Output Type Active Low | ||
Mount Type Surface | ||
Package Type Heimdall | ||
Pin Count 4 | ||
Length 6.8mm | ||
Height 3mm | ||
Width 3.2mm | ||
Maximum Supply Voltage 6V | ||
Series TSMP77000 | ||
Minimum Supply Voltage 2.5V | ||
Automotive Standard No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||

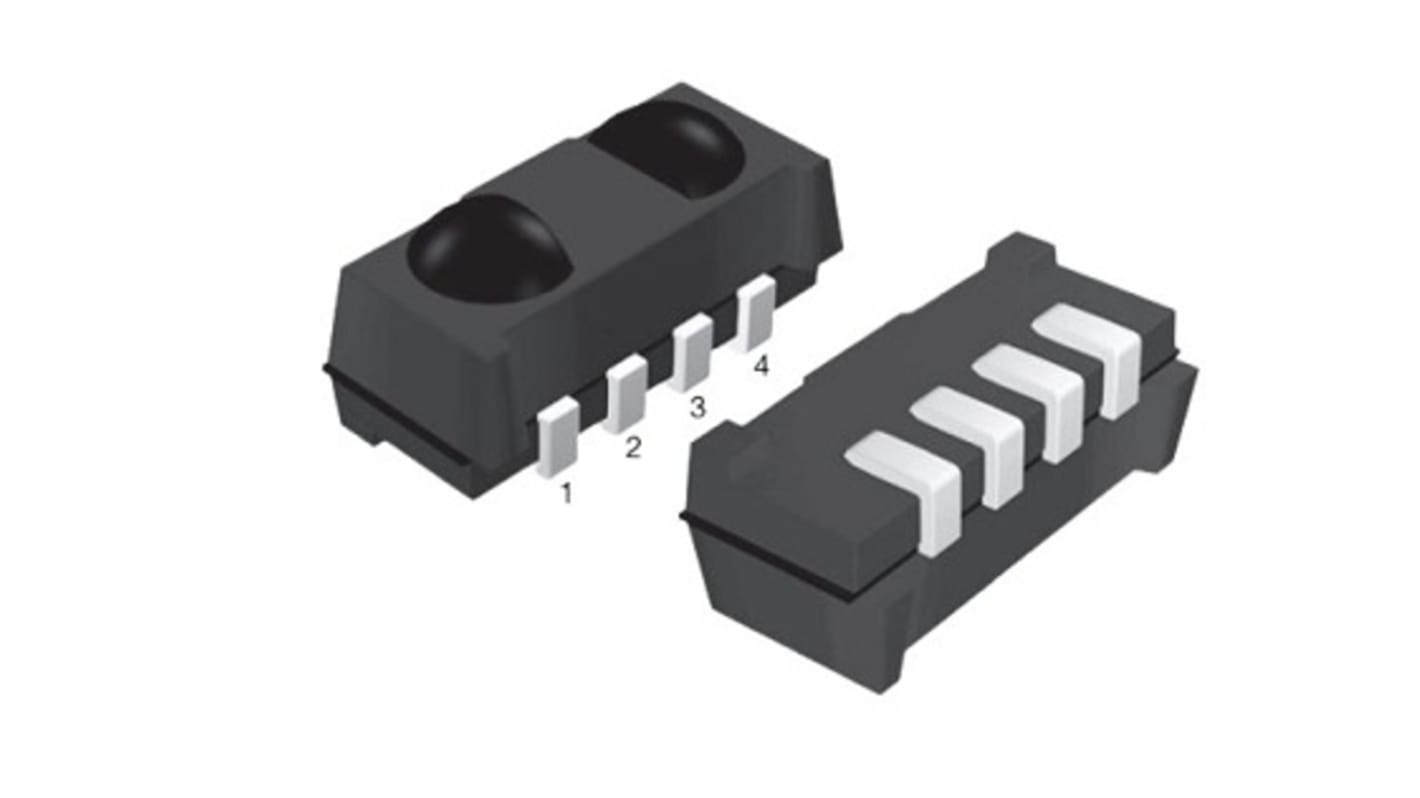

The Vishay IR sensor module is a two lens miniaturized sensor for receiving various kinds of modulated IR signals. Two PIN diodes and a preamplifier are assembled on a lead frame, the epoxy package is designed as an IR filter. The modulated output signal carrier out, can be used for code learning applications
Improved shielding against electrical field disturbance
TTL and CMOS compatibility
Output active low
Photo detector and preamplifier in one package
