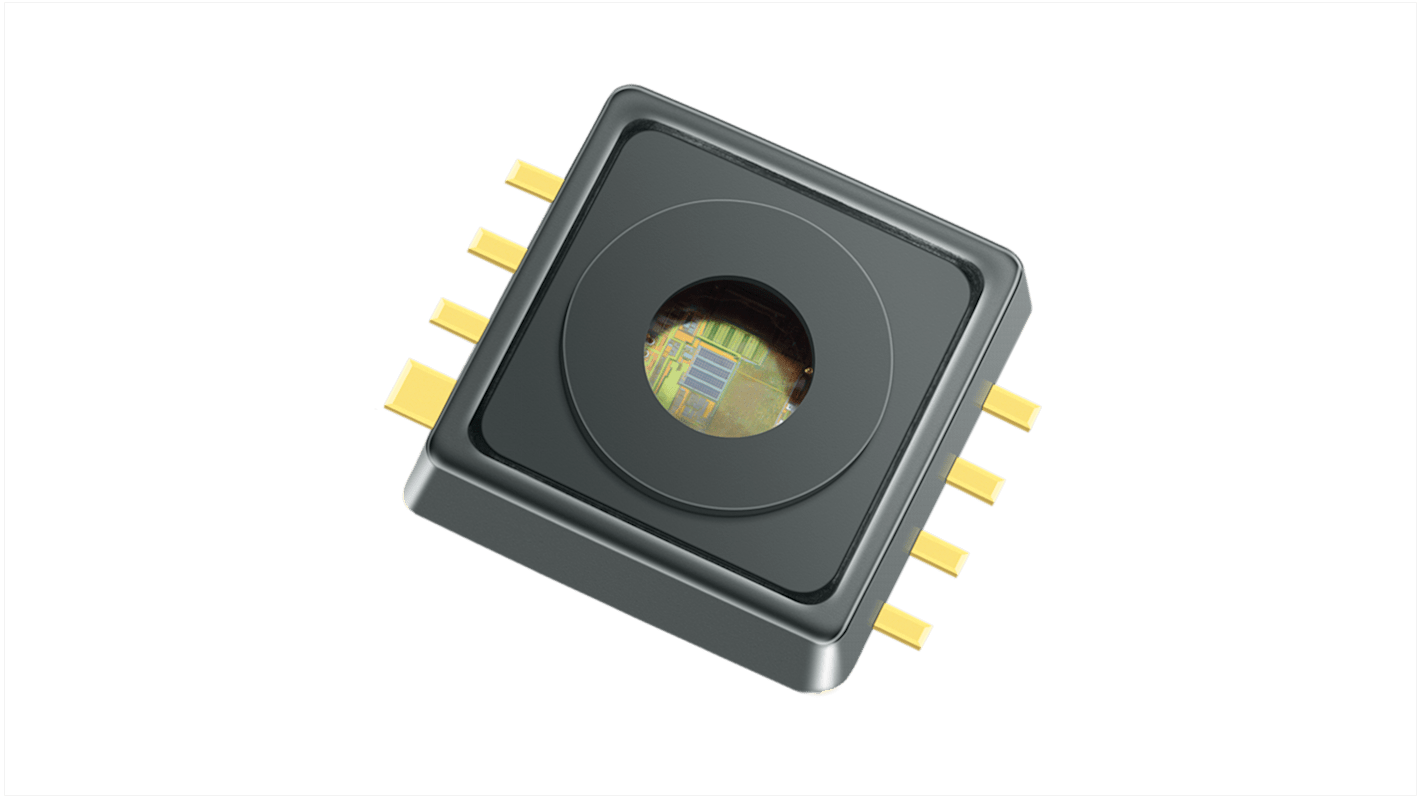

Infineon KP229E3111XTMA1 Absolute Pressure Sensor 300 kPa 8 PG-DSOF-8-16
- N° de stock RS:
- 260-5227
- Référence fabricant:
- KP229E3111XTMA1
- Fabricant:
- Infineon
Offre groupée disponible
Sous-total (1 unité)*
2,69 €
(TVA exclue)
3,25 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 1 438 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 49 | 2,69 € |
| 50 - 99 | 2,14 € |
| 100 - 249 | 2,09 € |
| 250 - 499 | 2,03 € |
| 500 + | 1,98 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 260-5227
- Référence fabricant:
- KP229E3111XTMA1
- Fabricant:
- Infineon
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Infineon | |
| Maximum Overload Pressure | 300kPa | |
| Sensor Type | Absolute Pressure Sensor | |
| Product Type | Absolute Pressure Sensor | |
| Typical Sensitivity | 15.2mV/kPa | |
| Package Type | PG-DSOF-8-16 | |
| Pin Count | 8 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 300 kPa | |
| Maximum Supply Voltage | 16.5V | |
| Accuracy | ±2.5 kPa | |
| Maximum Operating Temperature | 140°C | |
| Width | 8.6 mm | |
| Height | 2.8mm | |
| Standards/Approvals | RoHS | |
| Maximum Output Voltage | 4.65V | |
| Series | TurboMAP | |
| Length | 7mm | |
| Minimum Operating Pressure | 20kPa | |
| Automotive Standard | AEC | |
| Minimum Output Voltage | 0.4V | |
| Minimum Operating Temperature | -40°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Infineon | ||
Maximum Overload Pressure 300kPa | ||
Sensor Type Absolute Pressure Sensor | ||
Product Type Absolute Pressure Sensor | ||
Typical Sensitivity 15.2mV/kPa | ||
Package Type PG-DSOF-8-16 | ||
Pin Count 8 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 300 kPa | ||
Maximum Supply Voltage 16.5V | ||
Accuracy ±2.5 kPa | ||
Maximum Operating Temperature 140°C | ||
Width 8.6 mm | ||
Height 2.8mm | ||
Standards/Approvals RoHS | ||
Maximum Output Voltage 4.65V | ||
Series TurboMAP | ||
Length 7mm | ||
Minimum Operating Pressure 20kPa | ||
Automotive Standard AEC | ||
Minimum Output Voltage 0.4V | ||
Minimum Operating Temperature -40°C | ||
The Infineon miniaturized analogue manifold air pressure sensor IC based on a capacitive principle. It is surface micro machined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into an analogue output signal.
High precision pressure sensing
Ratio metric analogue output
Broken wire detection
