Infineon Absolute Pressure Sensor, SMD Mount, 8-Pin, PG-DSOF-8-16

Voir la catégorie
Offre groupée disponible

Sous-total (1 bobine de 1500 unités)*

3 096,00 €

(TVA exclue)

3 745,50 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 1 500 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
la bobine*
1500 - 15002,064 €3 096,00 €
3000 - 30001,94 €2 910,00 €
4500 +1,892 €2 838,00 €

*Prix donné à titre indicatif

N° de stock RS:
258-4023
Référence fabricant:
KP212K1409XTMA1
Fabricant:
Infineon
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Infineon

Sensor Type

Absolute Pressure Sensors

Typical Sensitivity

40mV/kPa

Mounting Type

SMD

Package Type

PG-DSOF-8-16

Pin Count

8

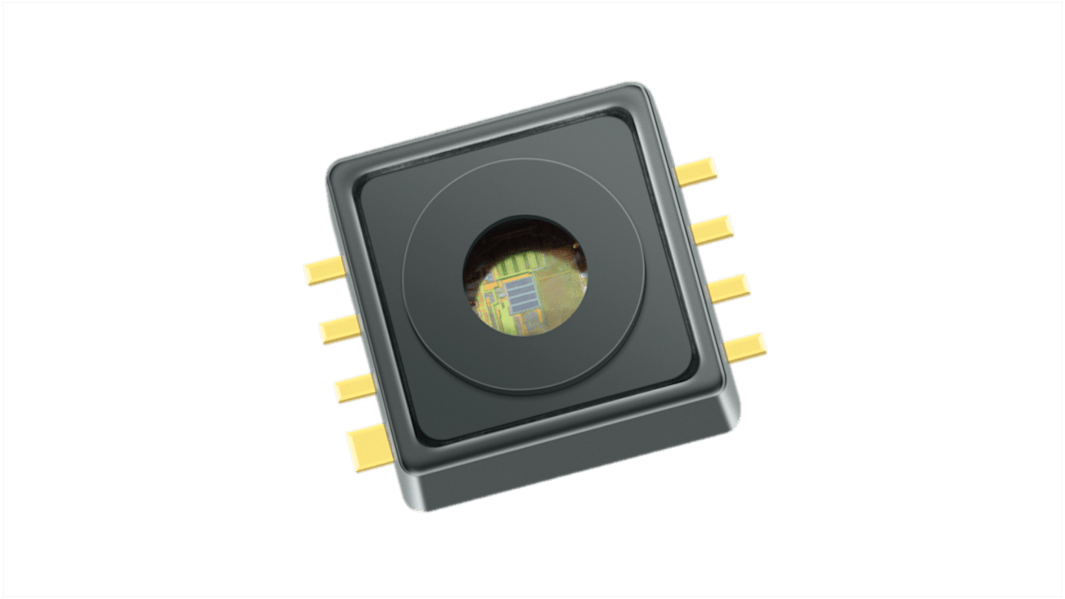

Infineon Absolute Pressure Sensor, 115kPa Maximum Overload Pressure, 40 mV/kPa Typical Sensitivity - KP212K1409XTMA1


This absolute pressure sensor is a highly efficient SMD pressure sensor designed for a wide range of applications. This is characterised by its compact PG-DSOF-8-16 package, measuring 8.6 x 7 x 2.8 mm. It accurately converts pressure readings between 15kPa to 115kPa into a corresponding analogue signal, making it suitable for precise measurement tasks.

Features & Benefits


• Provides high precision pressure sensing up to ±1.0kPa
• Ratiometric analogue output enhances reliability in signal processing
• Integrated broken wire detection simplifies error handling
• Ideal for automotive and industrial applications due to high sensitivity

Applications


• Utilised for manifold air pressure measurement in motorbikes
• Engaged in industrial control systems for accuracy
• Integrated into consumer product designs requiring pressure monitoring
• Applied in medical devices needing precise pressure readings

How does the sensor handle extreme temperatures?


It operates effectively in a wide range of temperatures, from -40°C to +125°C, ensuring consistent performance in varied environmental conditions.

What makes the output signal reliable for real-time applications?


The sensor features a ratiometric output, which adjusts proportionally to the supply voltage, ensuring accurate readings even when voltage fluctuations occur.

Can the sensor identify wiring issues during operation?


Yes, it includes a built-in broken wire detection system that detects interruptions in the supply line, providing alerts for quick troubleshooting.
