Honeywell Technologies Differential Pressure SensorSurface 8 SMT
- N° de stock RS:
- 214-1524
- Numéro d'article Distrelec:
- 301-59-460
- Référence fabricant:
- SSCMRRV015PD2A3
- Fabricant:
- Honeywell
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
36,13 €
(TVA exclue)
43,72 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 116 unité(s) expédiée(s) à partir du 26 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 36,13 € |
| 10 - 24 | 35,19 € |
| 25 + | 34,32 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 214-1524
- Numéro d'article Distrelec:
- 301-59-460
- Référence fabricant:
- SSCMRRV015PD2A3
- Fabricant:
- Honeywell
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Honeywell | |
| Product Type | Differential Pressure Sensor | |
| Sensor Type | Differential Pressure Sensor | |
| Maximum Overload Pressure | 60psi | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 15 psi | |
| Accuracy | ±0.25 % | |
| Port Type | Dual Radial Barbed | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | 85°C | |
| Length | 10mm | |
| Series | SSC | |
| Standards/Approvals | No | |
| Height | 13.75mm | |
| Minimum Operating Pressure | -15psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Honeywell | ||
Product Type Differential Pressure Sensor | ||
Sensor Type Differential Pressure Sensor | ||
Maximum Overload Pressure 60psi | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 15 psi | ||
Accuracy ±0.25 % | ||
Port Type Dual Radial Barbed | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature 85°C | ||
Length 10mm | ||
Series SSC | ||
Standards/Approvals No | ||
Height 13.75mm | ||
Minimum Operating Pressure -15psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||

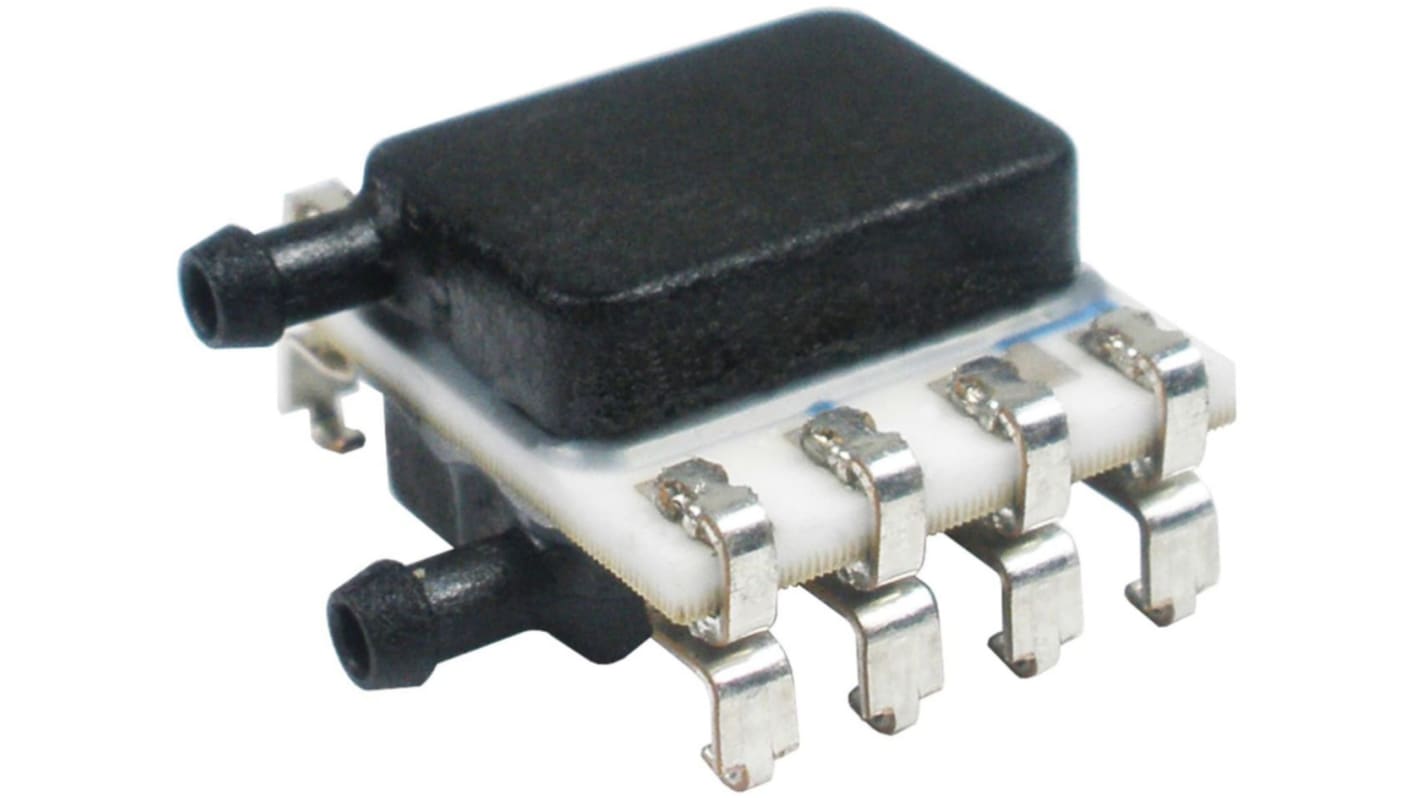

Honeywell SSC Series Differential Pressure Sensor, ±0.25% Accuracy -15 to 15psi Differential Pressure - SSCMRRV015PD2A3
This differential pressure sensor measures pressure differences between two points and outputs an electrical signal suitable for low-voltage systems. It is designed for surface-mounted PCB installation and connects via dual radial barbed ports for simple tubing attachment. The device operates across typical ambient and industrial conditions and supports low-power supply voltages for integration into control and monitoring electronics.
Features and Benefits:
• 3.3 to 5V supply range reduces system power consumption
• ±0.25% accuracy improves measurement repeatability
• Differential range ±15 psi enables bi-directional sensing
• 8-pin SMT package simplifies Compact PCB layout
• Operates from -40 to 85°C for broad temperature tolerance
• ±0.25% accuracy improves measurement repeatability
• Differential range ±15 psi enables bi-directional sensing
• 8-pin SMT package simplifies Compact PCB layout
• Operates from -40 to 85°C for broad temperature tolerance
Applications
• Suitable for HVAC airflow monitoring in duct systems
• Ideal for cleanroom differential pressure control
• Used with pneumatic manifolds in laboratory equipment
• Can be used for filter clogging detection in industrial vents
• Suitable for building management systems requiring Compact sensors
• Ideal for cleanroom differential pressure control
• Used with pneumatic manifolds in laboratory equipment
• Can be used for filter clogging detection in industrial vents
• Suitable for building management systems requiring Compact sensors
What mounting method is required for the device?
It is intended for surface mounting using an SMT package on a compatible PCB.
What connection type is provided for pressure lines?
Dual radial barbed ports allow straightforward tubing attachment for both ports.
What electrical pin count is available for integration?
The component presents eight pins for signal and supply connections.
What overload capability does the unit tolerate?
It can withstand transient overpressure events up to 60 psi.
What are the operational supply voltage limits?
The sensor functions between 3.3V minimum and 5V maximum.
