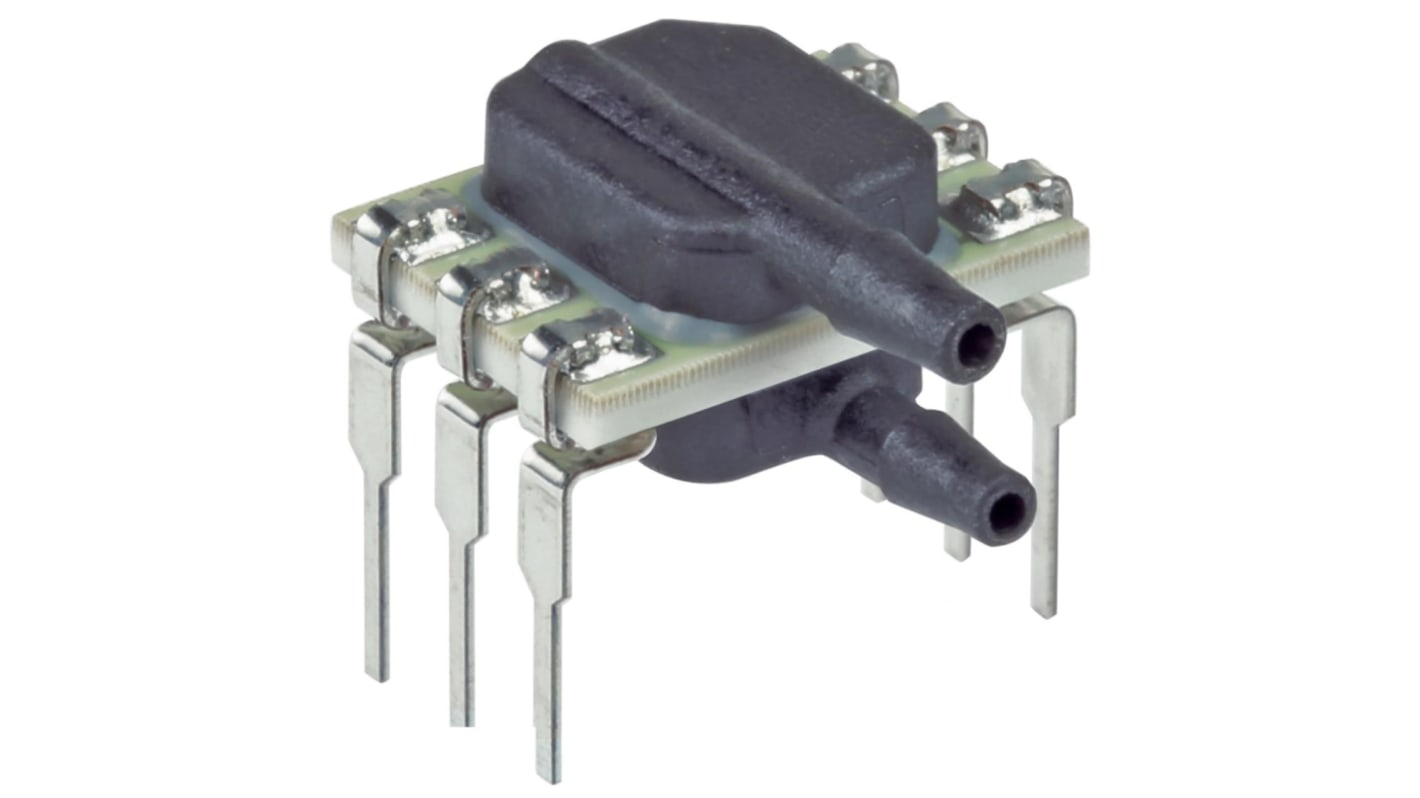

Honeywell Technologies ABPDRRV015PDAA5 Pressure SensorBoard 6 DIP

This differential pressure sensor measures gauge and differential pressure for integration on a PCB, providing ratiometric analogue or 12‑bit digital output for monitoring pressures in gas or liquid environments. It is temperature‑compensated and calibrated via an on‑board ASIC so output tracks changes in pressure and temperature across the compensated range. The device operates from a single low‑voltage supply and is available with options for wet‑media protection or dry‑gas use, meeting food‑safety material certifications.

• ±0.25% accuracy pressure sensor improves measurement precision
• Total Error Band ±1.5%FSS ensures predictable worst‑case error
• Low‑voltage 5V pressure sensor option supports 3.3V or 5.0V supplies
• 2kHz digital update rate and 1kHz analogue update rate enable fast readings
• Sleep mode with μA‑level current reduces battery consumption
• Dual radial barbed pressure port sensor allows wet/wet differential sensing

• Used for industrial HVAC differential pressure sensor monitoring
• Suitable for CPAP and ventilator pressure measurement systems
• Ideal for blood analysis and patient monitoring instruments
• Used with coffee makers and washing machines pressure control
• Can be used for pneumatic valve positioning and regulation

Ranges cover low mbar up to high psi values including 0ps to 15psi and up to 150psi options.

A liquid‑media option adds a silicone‑based gel under the primary port to protect electronics for non‑corrosive liquids and condensation conditions.

Outputs include ratiometric analogue, I2C or SPI‑compatible 12‑bit digital interfaces with defined pinouts for each protocol.

Operating temperature extends from -40 to 85°C with humidity tolerance to 95%RH non‑condensing and higher for liquid‑media variants.

Sensor wetted materials are certified to NSF‑169, LFGB and are BPA‑free.
