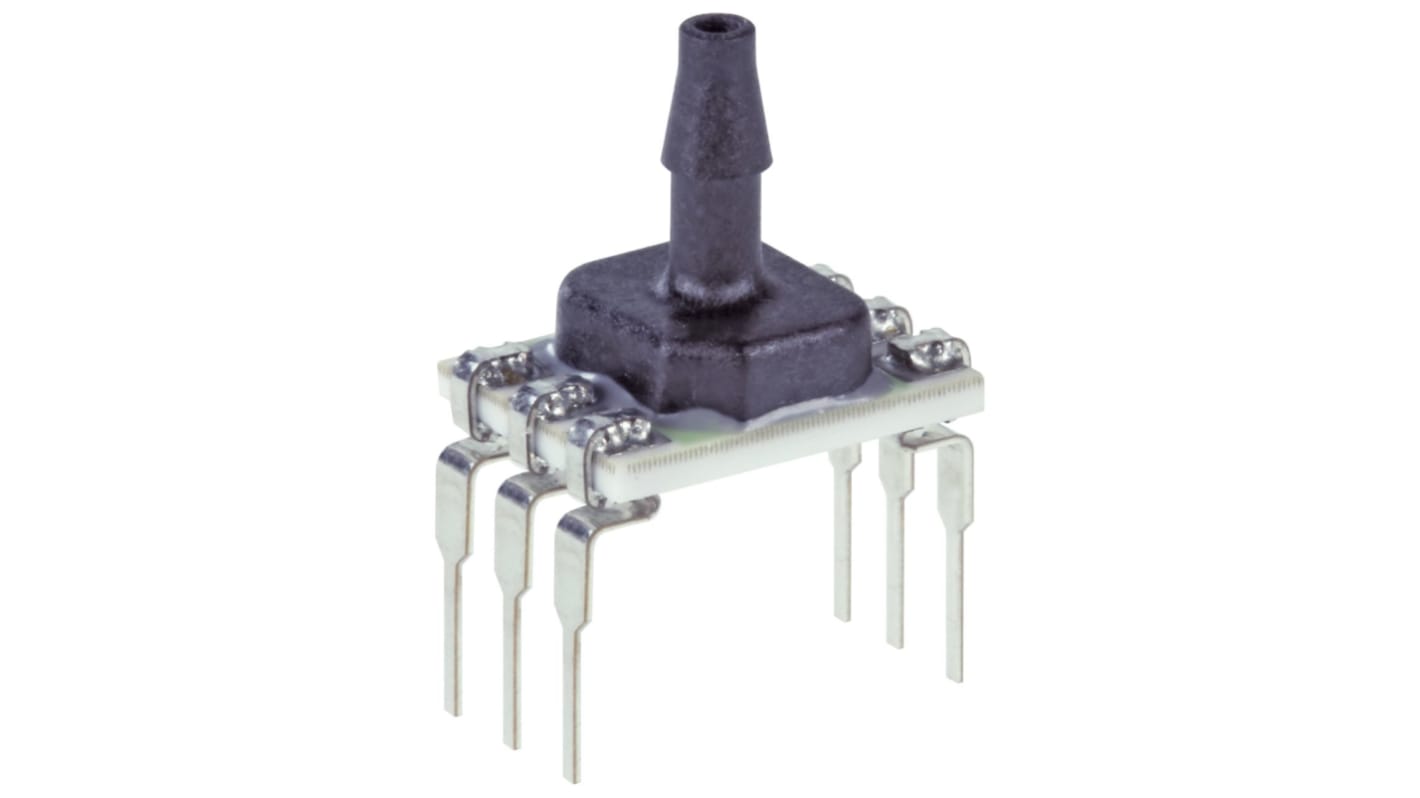

Honeywell Technologies Pressure SensorBoard 6 DIP
- N° de stock RS:
- 214-1390
- Référence fabricant:
- ABPDANN001PGAA5
- Fabricant:
- Honeywell
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
32,78 €
(TVA exclue)
39,66 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 33 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 32,78 € |
| 10 - 24 | 28,59 € |
| 25 + | 27,88 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 214-1390
- Référence fabricant:
- ABPDANN001PGAA5
- Fabricant:
- Honeywell
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Honeywell | |
| Maximum Overload Pressure | 30psi | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Product Type | Pressure Sensor | |
| Mount Type | Board | |
| Package Type | DIP | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 1 psi | |
| Accuracy | ±0.25 % | |
| Port Type | Single Axial Barbed | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | +85°C | |
| Standards/Approvals | BPA Free, LFGB, NSF-169 | |
| Series | ABP | |
| Width | 6.3mm | |
| Height | 3.63mm | |
| Length | 7.3mm | |
| Minimum Operating Pressure | 0psi | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | ISO 9001 | |
| Sélectionner tout | ||
|---|---|---|
Marque Honeywell | ||
Maximum Overload Pressure 30psi | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Product Type Pressure Sensor | ||
Mount Type Board | ||
Package Type DIP | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 1 psi | ||
Accuracy ±0.25 % | ||
Port Type Single Axial Barbed | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature +85°C | ||
Standards/Approvals BPA Free, LFGB, NSF-169 | ||
Series ABP | ||
Width 6.3mm | ||
Height 3.63mm | ||
Length 7.3mm | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard ISO 9001 | ||
Honeywell ABP Series Gauge Pressure Sensor, 1psi Maximum Operating Pressure, ±0.25% Accuracy - ABPDANN001PGAA5
This gauge pressure sensor measures pressure relative to ambient and provides ratiometric analogue or digital outputs for reading low-pressure ranges in board-mounted systems. Calibrated and temperature-compensated using an on-board ASIC, it updates calibrated pressure values at approximately 1 kHz analogue and 2 kHz digital while operating from a single 3.3 V or 5.0 V supply in applications requiring Compact board-mount transducers.
Features and Benefits:
• ±0.25% FSS long-term stability for minimal drift
• ±0.25% FSS BFSL accuracy for precise low-pressure measurement
• Operates from 3.3 V or 5.0 V supply for flexible designs
• Total Error Band ±1.5% FSS across compensated range
• 2 μA sleep-mode consumption to extend battery life
• Calibrated output update at 1 kHz analogue and 2 kHz digital
• ±0.25% FSS BFSL accuracy for precise low-pressure measurement
• Operates from 3.3 V or 5.0 V supply for flexible designs
• Total Error Band ±1.5% FSS across compensated range
• 2 μA sleep-mode consumption to extend battery life
• Calibrated output update at 1 kHz analogue and 2 kHz digital
Applications
• Suitable for CPAP and ventilator pressure monitoring
• Ideal for blood analysis and patient monitoring devices
• Used with liquid-compatible ports for saline measurement
• Can be used for HVAC and pneumatic control systems
• Suitable for coffee-machine and washing-machine pressure sensing
• Ideal for blood analysis and patient monitoring devices
• Used with liquid-compatible ports for saline measurement
• Can be used for HVAC and pneumatic control systems
• Suitable for coffee-machine and washing-machine pressure sensing
What media can be measured when liquid compatibility is required?
A silicone-based gel option protects electronics under port P1, enabling use with non-corrosive liquids and applications where condensation may occur.
How does the device handle harsh environmental conditions during storage and assembly?
It meets Moisture Sensitivity Level 2 and has unlimited storage life inside sealed moisture barrier bags with a one-year floor life after removal under <30°C and <60% RH.
What electrical interfaces and output resolutions are available?
Outputs include ratiometric analogue or 12-bit digital compatible with I2C or SPI, with digital resolution corresponding to 12 bits.
What pressure ranges and port types does it support for low-pressure applications?
Pressure ranges include 0-1 psi gauge and differential options and it is available with a single axial barbed port for tubing connections.
Which safety and food-contact standards apply for use in regulated products?
The sensor materials are certified to NSF-169, BPA-free and LFGB standards and devices are manufactured to ISO 9001 processes.
