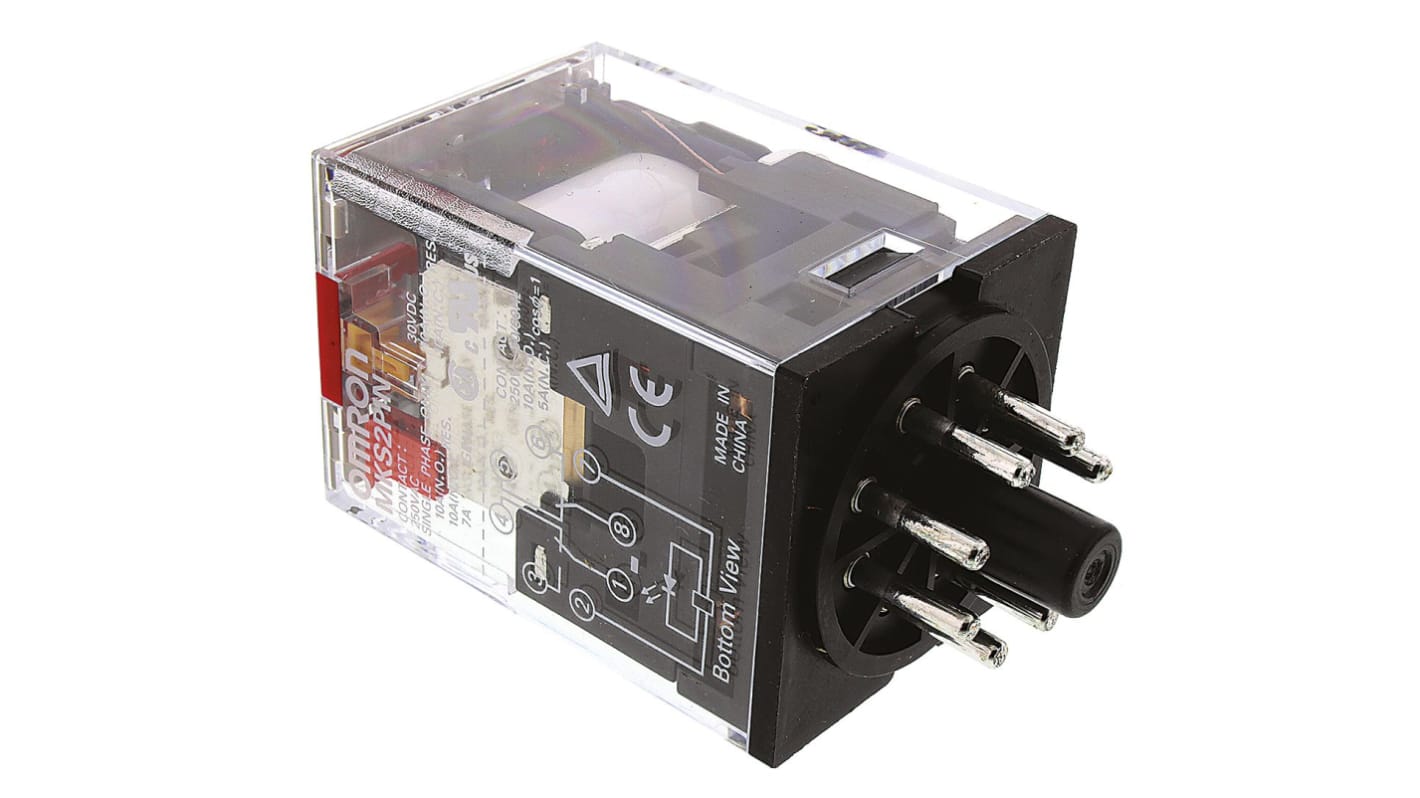

Omron Power Relay, 110V ac Coil, 10A Switching Current, DPDT
- N° de stock RS:
- 536-944
- Numéro d'article Distrelec:
- 301-62-897
- Référence fabricant:
- MKS2PIN 110VAC
- Fabricant:
- Omron
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
16,40 €
(TVA exclue)
19,84 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 43 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 16,40 € |
| 5 - 9 | 15,59 € |
| 10 + | 15,10 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 536-944
- Numéro d'article Distrelec:
- 301-62-897
- Référence fabricant:
- MKS2PIN 110VAC
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Coil Voltage | 110V ac | |
| Product Type | Power Relay | |
| Contact Configuration | DPDT | |
| Series | MKS | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching Power | 2.5kVA | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 60°C | |
| Coil Resistance | 932Ω | |
| Height | 53.3mm | |
| Standards/Approvals | RoHS | |
| Width | 34.5mm | |
| Length | 34.5mm | |
| Coil Power | 2.7VA | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Coil Voltage 110V ac | ||
Product Type Power Relay | ||
Contact Configuration DPDT | ||
Series MKS | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching Power 2.5kVA | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 60°C | ||
Coil Resistance 932Ω | ||
Height 53.3mm | ||
Standards/Approvals RoHS | ||
Width 34.5mm | ||
Length 34.5mm | ||
Coil Power 2.7VA | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
Omron MKS Series Power Relay, 110V AC Coil Voltage, 10A Switching Current - MKS2PINAC110
This power relay is a versatile solution ideal for automation and industrial applications. It is a general-purpose relay featuring a contact configuration of DPDT and operates on a coil voltage of 110V AC. Measuring 34.5mm in length and depth with a height of 53.3mm, this relay offers robust switching capabilities of up to a maximum of 10A.
Features & Benefits
• Maximum switching power of 2.5kVA for reliable operation
• Plug-in terminal type ensures simple installation and maintenance
• Contact material of AgSnIn promotes long-lasting performance
• UL certified for safety and reliability in industrial use
Applications
• Used for automating control circuits in industrial machinery
• Ideal for requiring reliable circuit validation
• Utilised in control panels where robust relays are crucial
• Effective for switching operations in various electrical systems
What type of control circuits can benefit from incorporating this relay?
This relay is suitable for automating control circuits in machinery where precise switching is essential. Its specifications allow it to handle significant loads safely and efficiently.
How does the coil resistance impact overall performance in this relay?
The coil resistance of 932Ω allows for lower energy consumption while ensuring quick activation. This efficiency contributes to the relay's suitability for various applications without overheating.
Are there any limitations in operating temperature for this relay to function effectively?
The device operates effectively within a temperature range of -25°C to +60°C, ensuring reliability in harsh environmental conditions commonly encountered in industrial settings.
What benefits does the DPDT configuration offer compared to other types of contact arrangements?
The DPDT configuration enables flexibility in circuit designs, allowing for multiple control options and circuits within one relay. This versatility is essential in sophisticated automation systems.
