Omron Relay, 110V ac Coil, 10A Switching Current, DPDT
- N° de stock RS:
- 536-871
- Numéro d'article Distrelec:
- 301-62-896
- Référence fabricant:
- MKS2PI 110VAC
- Fabricant:
- Omron
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
14,58 €
(TVA exclue)
17,64 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 147 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 36 unité(s) expédiée(s) à partir du 27 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 14,58 € |
| 5 - 9 | 13,83 € |
| 10 + | 13,40 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 536-871
- Numéro d'article Distrelec:
- 301-62-896
- Référence fabricant:
- MKS2PI 110VAC
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Coil Voltage | 110V ac | |
| Product Type | Relay | |
| Contact Configuration | DPDT | |
| Series | MKS2 | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 250V dc | |
| Switching Power | 3kVA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Coil Resistance | 932Ω | |
| Length | 34.5mm | |
| Height | 53.3mm | |
| Width | 34.5mm | |
| Coil Power | 240mW | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Alloy | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Coil Voltage 110V ac | ||
Product Type Relay | ||
Contact Configuration DPDT | ||
Series MKS2 | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 250V dc | ||
Switching Power 3kVA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Coil Resistance 932Ω | ||
Length 34.5mm | ||
Height 53.3mm | ||
Width 34.5mm | ||
Coil Power 240mW | ||
Standards/Approvals RoHS | ||
Contact Material Silver Alloy | ||

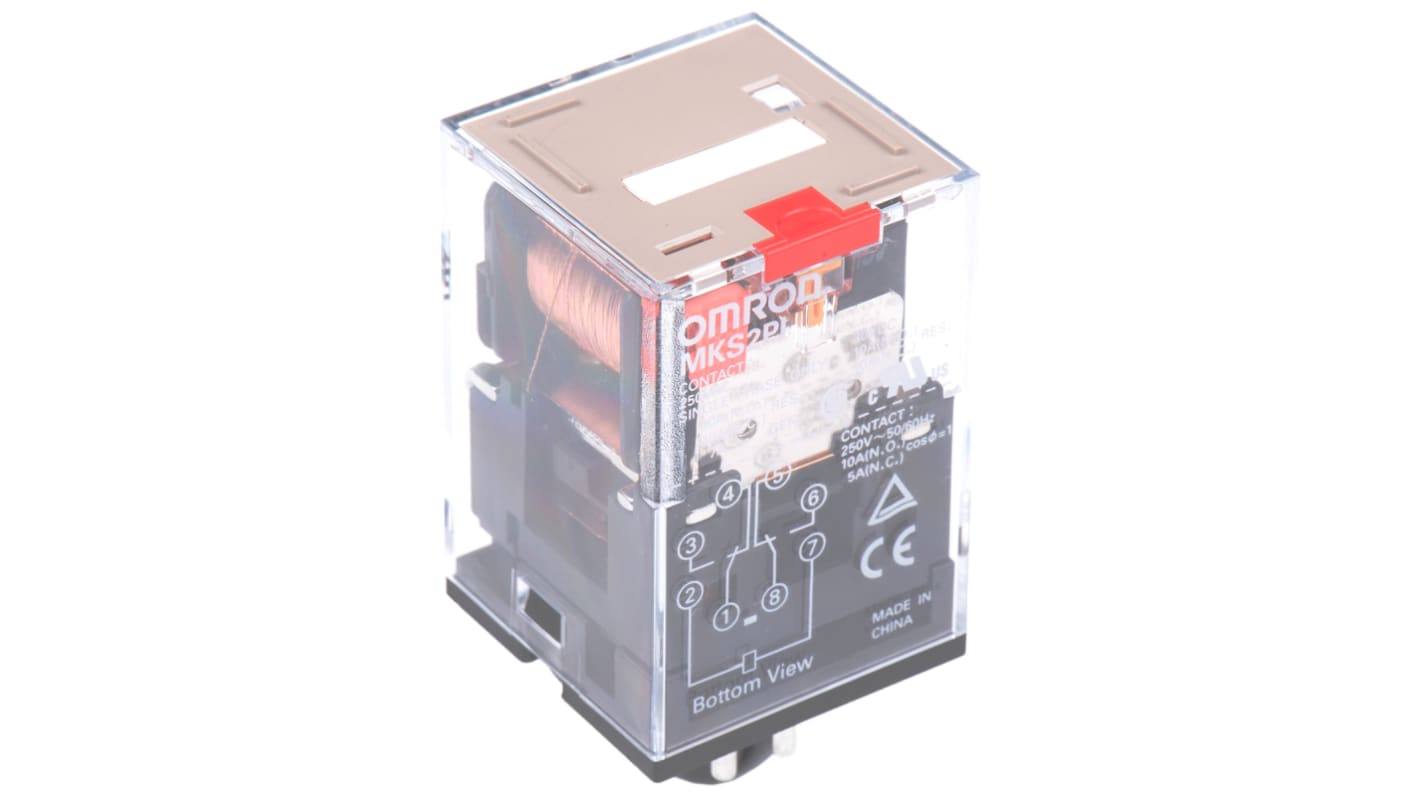

Omron MKS2 Series Relay, DPDT Contact Configuration, 932 Ω Coil Resistance - MKS2PI AC110
This general-purpose relay is ideal for various automation and electrical applications. Its compact design, with dimensions of 34.5mm x 34.5mm x 53.3mm, makes it suitable for limited spaces. Operating on a coil voltage of 110V AC, it provides dependable performance for multiple tasks. With a dual-pole, dual-throw (DPDT) contact configuration, the plug-in relay effectively manages circuit operations in diverse environments.
Features & Benefits
• High maximum switching voltage of 250V AC ensures safety
• Coil resistance of 932Ω contributes to low energy consumption
• Designed for plug-in mounting for straightforward replacement
• Operating temperature range from -40 to +60°C accommodates various conditions
• Constructed from RoHS-compliant materials for environmental consideration
• Mechanical indicator allows for simple operation verification
Applications
• Used in industrial control systems for automation
• Suitable for relay sequence operations in machinery
• Employed in electrical panels for circuit management
• Utilised in temperature control systems
Can it withstand extreme temperatures?
Yes, it operates reliably from -40°C to +60°C.
Will it safely manage high voltage loads?
Yes, it can handle a maximum switching voltage of 250V AC.
Is it suitable for all types of circuits?
It is intended for general-purpose applications, ensuring versatility.
Can it be easily replaced?
Yes, its plug-in mounting allows for quick replacement.
Does it comply with environmental regulations?
Yes, all materials used are RoHS compliant.
