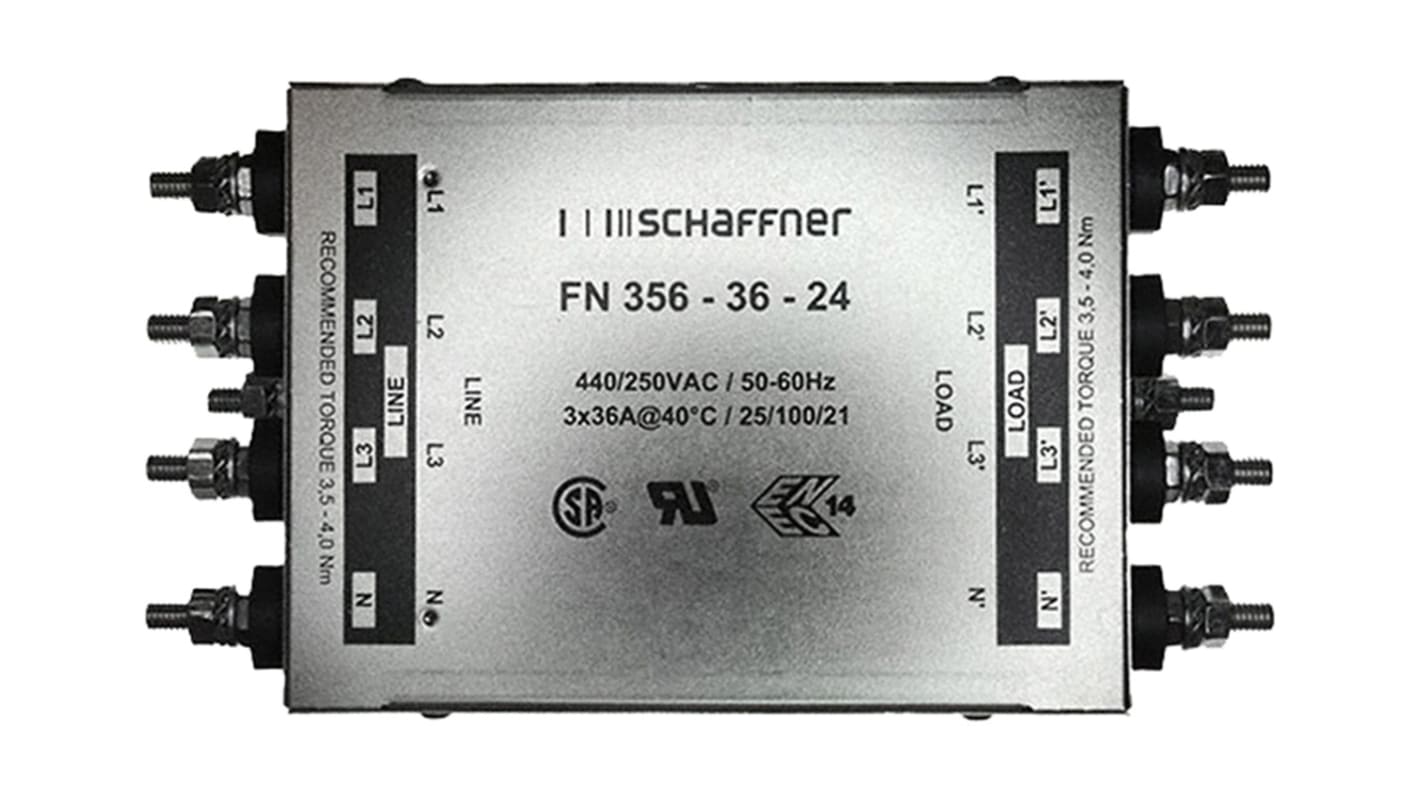

Schaffner, FN356 36A 440/250 V ac 60Hz, Chassis Mount EMI Filter, Tab 3 Phase
- N° de stock RS:
- 167-4472
- Référence fabricant:
- FN356-36-24
- Fabricant:
- Schaffner
Offre groupée disponible
Sous-total (1 unité)*
400,37 €
(TVA exclue)
484,45 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 09 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 400,37 € |
| 5 - 9 | 372,34 € |
| 10 + | 348,32 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 167-4472
- Référence fabricant:
- FN356-36-24
- Fabricant:
- Schaffner
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schaffner | |
| Maximum Current Rating | 36A | |
| Maximum Voltage Rating | 440/250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Tab | |
| Number of Phases | 3 | |
| Series | FN356 | |
| Number of Stages | Single Stage | |
| Operating Frequency | 60Hz | |
| Length | 105mm | |
| Depth | 190.8mm | |
| Height | 80mm | |
| Dimensions | 105 x 190.8 x 80mm | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 0.43 mA | |
| Maximum Operating Temperature | +100°C | |
| Power Loss | 10.9W | |
| Sélectionner tout | ||
|---|---|---|
Marque Schaffner | ||
Maximum Current Rating 36A | ||
Maximum Voltage Rating 440/250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Tab | ||
Number of Phases 3 | ||
Series FN356 | ||
Number of Stages Single Stage | ||
Operating Frequency 60Hz | ||
Length 105mm | ||
Depth 190.8mm | ||
Height 80mm | ||
Dimensions 105 x 190.8 x 80mm | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 0.43 mA | ||
Maximum Operating Temperature +100°C | ||
Power Loss 10.9W | ||
- Pays d'origine :
- TH
FN 356 series three-phase power filters
Schaffner's FN356 filters provide high attenuation of both symmetrical and asymmetrical interference. Solid touch-safe terminal blocks offer a generous contacting cross section and contribute to overall safety.
Can be used in a wide range of applications such as general purpose four-wire filtering, mainframe computer systems and office equipment.
Can be used in a wide range of applications such as general purpose four-wire filtering, mainframe computer systems and office equipment.
Compact filters featuring excellent attenuation characteristics
Choice of connection styles
Low operating leakage current
Choice of connection styles
Low operating leakage current
