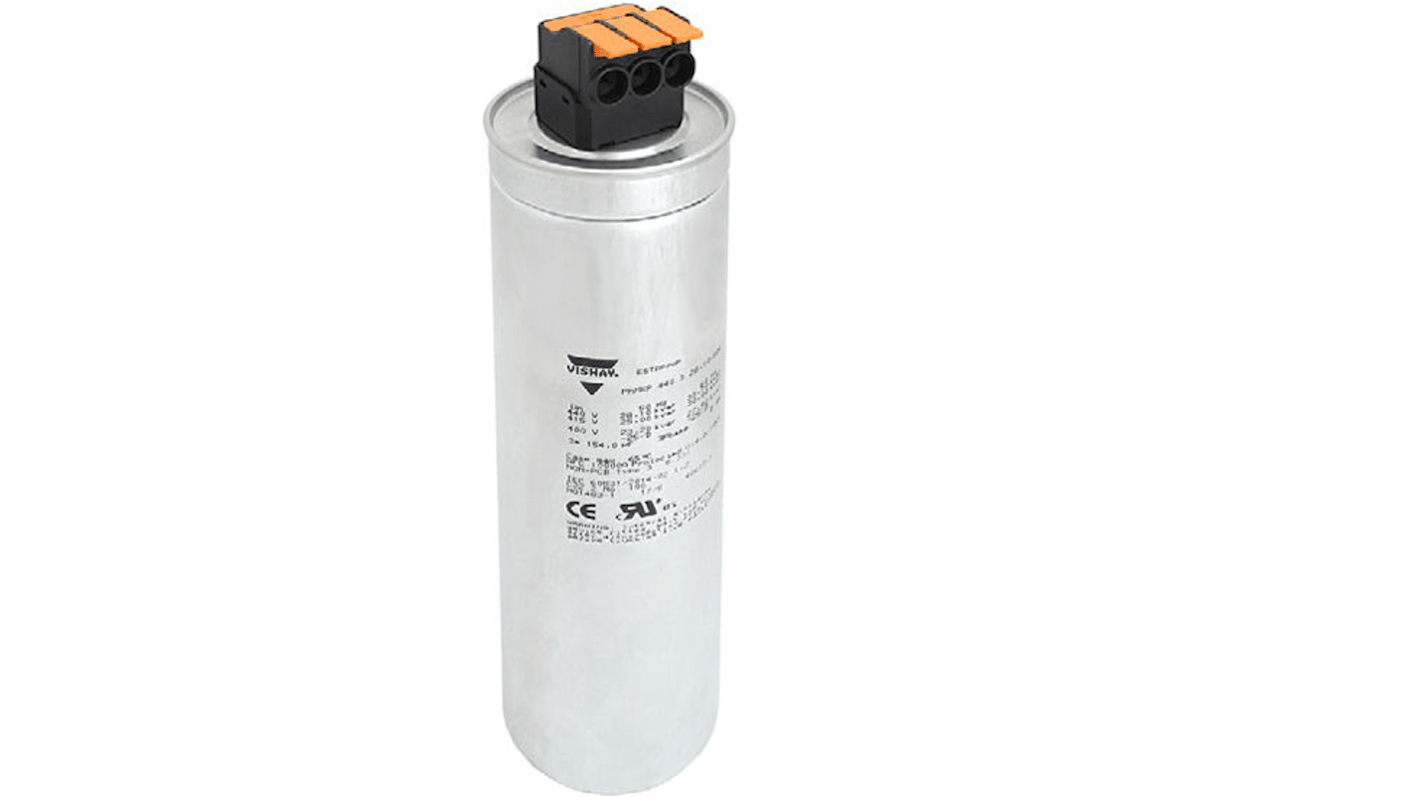

Vishay Power Factor Correction Capacitor 20.3 μF 8.33 kvar 3
- N° de stock RS:
- 225-8910
- Référence fabricant:
- PhMKP660.3.08,33-S84
- Fabricant:
- Vishay
Offre groupée disponible
Sous-total (1 boîte de 4 unités)*
511,992 €
(TVA exclue)
619,512 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 8 unité(s) expédiée(s) à partir du 04 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | La Boite* |
|---|---|---|
| 4 - 8 | 127,998 € | 511,99 € |
| 12 + | 115,198 € | 460,79 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 225-8910
- Référence fabricant:
- PhMKP660.3.08,33-S84
- Fabricant:
- Vishay
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Vishay | |
| Product Type | Power Factor Correction Capacitor | |
| Rated AC Voltage | 660V ac | |
| Rated DC Voltage | 660V dc | |
| Dielectric | Self-Healing, Polypropylene Film | |
| Standards/Approvals | IEC 61249-2-21, IEC 60831-1 + 2, EN 60831- 1 + 2, ESTA LVAC, UL/ULC - FILE E97723, UL 810 | |
| Weight | 1kg | |
| Mount Type | Screw | |
| Series | PHMKP | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 65°C | |
| Width | 67.6mm | |
| Number of Phases | 3 | |
| Tolerance | ±5 % | |
| kVAr 50Hz | 8.33kvar | |
| Length | 265mm | |
| Capacitance | 20.3μF | |
| Height | 265mm | |
| Terminal Type | Screw | |
| Sélectionner tout | ||
|---|---|---|
Marque Vishay | ||
Product Type Power Factor Correction Capacitor | ||
Rated AC Voltage 660V ac | ||
Rated DC Voltage 660V dc | ||
Dielectric Self-Healing, Polypropylene Film | ||
Standards/Approvals IEC 61249-2-21, IEC 60831-1 + 2, EN 60831- 1 + 2, ESTA LVAC, UL/ULC - FILE E97723, UL 810 | ||
Weight 1kg | ||
Mount Type Screw | ||
Series PHMKP | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 65°C | ||
Width 67.6mm | ||
Number of Phases 3 | ||
Tolerance ±5 % | ||
kVAr 50Hz 8.33kvar | ||
Length 265mm | ||
Capacitance 20.3μF | ||
Height 265mm | ||
Terminal Type Screw | ||
The Vishay PhMKP capacitors are metallized polypropylene film capacitors with self-healing properties. The current-carrying metal layer of an MKP capacitor is vaporized onto one side of the polypropylene film. 3-phase capacitor with 660 Vac voltage and 8.33 Kvar reactive power at 50 Hz.
Maintenance free
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
Optical connection check - lever closed = successfully contacted
2.5 mm2 up to 25 mm2 with wire-end sleeve
Defined continuous contact force through spring technology
Stainless steel spring
Corrosion proof
Fast and easy lever-operated wire connection
Copper alloy for conductor material
UL and cUL
