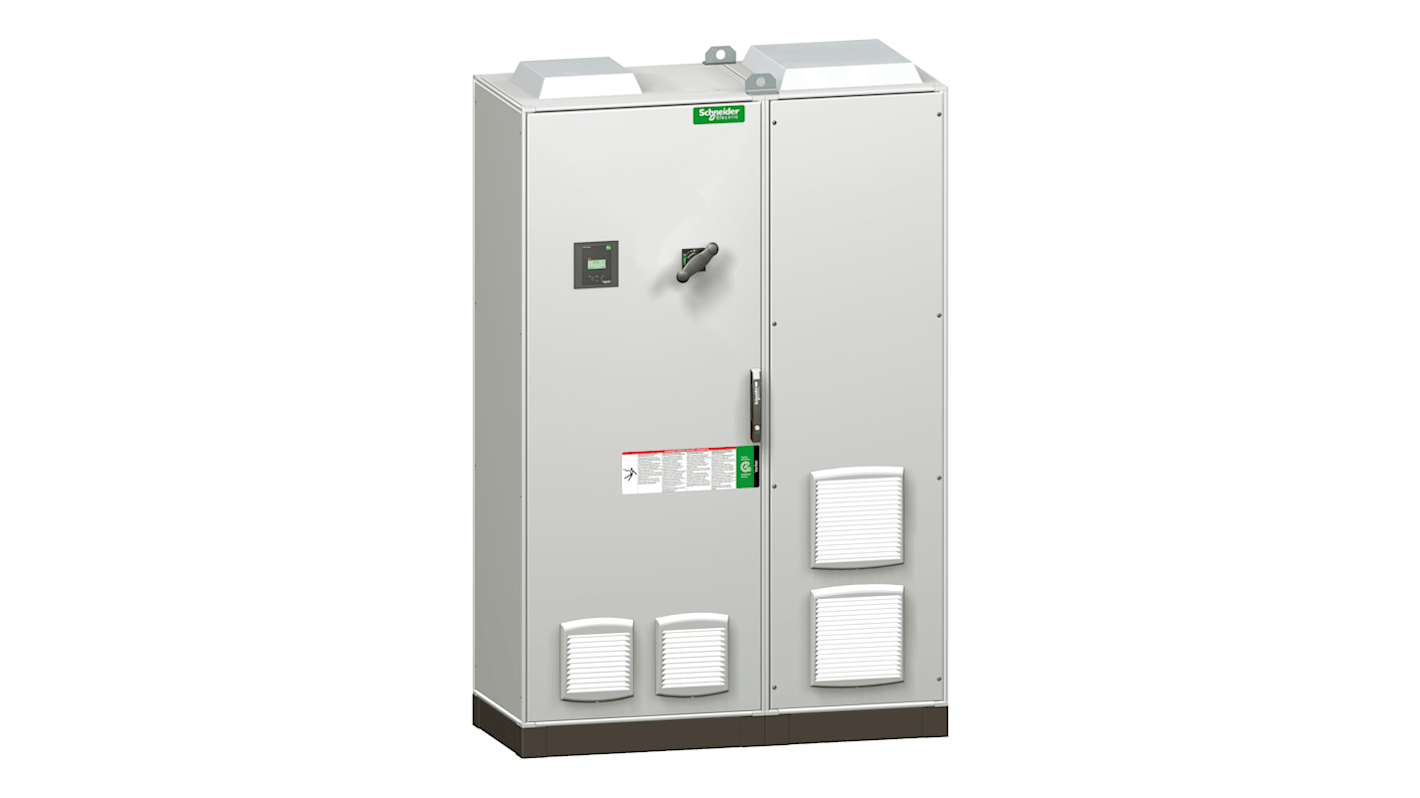

Schneider Electric Power Factor Correction Capacitor PFC 500 kvar 3
- N° de stock RS:
- 211-2809
- Référence fabricant:
- VLVAF6P03520AA
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
39 904,65 €
(TVA exclue)
48 284,63 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 + | 39 904,65 € |
*Prix donné à titre indicatif
Better World
Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables. Cliquez ici pour en savoir plus.
- N° de stock RS:
- 211-2809
- Référence fabricant:
- VLVAF6P03520AA
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Power Factor Correction Capacitor PFC | |
| Weight | 952kg | |
| Standards/Approvals | IEC 61439-1, IEC 61921, IEC 61439-2 | |
| Minimum Operating Temperature | -5°C | |
| Width | 800mm | |
| Mount Type | Indoor | |
| Series | VarSet | |
| Number of Phases | 3 | |
| Maximum Operating Temperature | 45°C | |
| Better World Product | Yes | |
| Tolerance | -5 to 10 % | |
| kVAr 50Hz | 500kvar | |
| Length | 600mm | |
| Height | 2200mm | |
| Better World Claim | Designed for Disassembly | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Power Factor Correction Capacitor PFC | ||
Weight 952kg | ||
Standards/Approvals IEC 61439-1, IEC 61921, IEC 61439-2 | ||
Minimum Operating Temperature -5°C | ||
Width 800mm | ||
Mount Type Indoor | ||
Series VarSet | ||
Number of Phases 3 | ||
Maximum Operating Temperature 45°C | ||
Better World Product Yes | ||
Tolerance -5 to 10 % | ||
kVAr 50Hz 500kvar | ||
Length 600mm | ||
Height 2200mm | ||
Better World Claim Designed for Disassembly | ||
- Pays d'origine :
- FR
The Schneider Electric VarSet capacitor banks are optimized to give best performance for standard operating conditions. They come with robust enclosure system IP31 protection for indoor application and IP54 kit available for dusty and harsh environment. The VarSet range is manufactured with meticulous quality means and designed to deliver reliable performance, it's the easy choice for savings and fast return on investment.
Long-life performance
Easy installation & commissioning
Fully type-tested according to IEC 61921 & IEC 61439- 1 & 2
Easy maintenance
Thermal monitoring device
