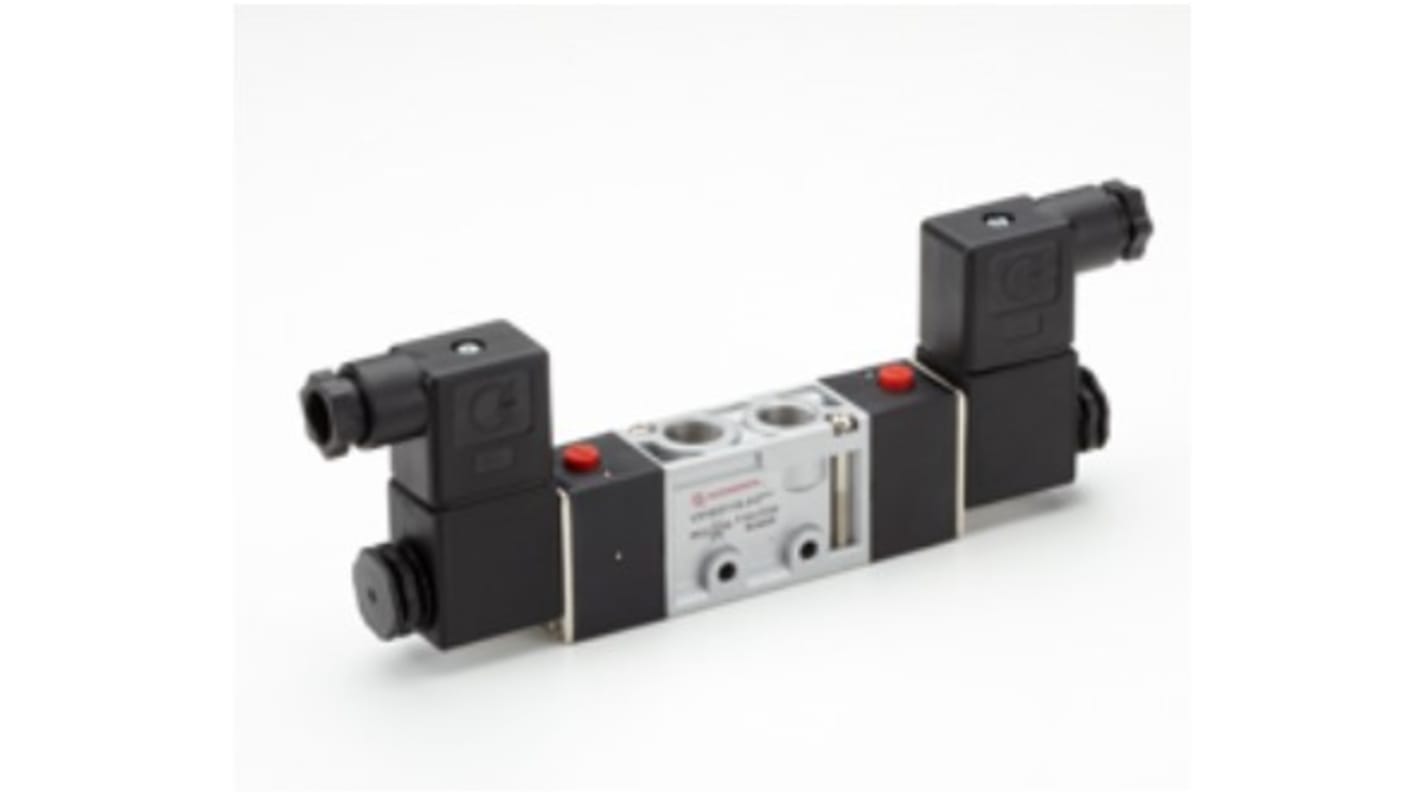

RS PRO Pneumatic Solenoid Valve - Solenoid G V51 Series 24V dc

Sous-total (1 unité)*

190,85 €

(TVA exclue)

230,93 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 2 unité(s) prête(s) à être expédiée(s)
  • Plus 31 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +190,85 €

*Prix donné à titre indicatif

N° de stock RS:
907-6380
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Product Type

Pneumatic Solenoid Valve

Port Size

1/4 in

Connection Thread Standard

G

Actuation Type

Solenoid

Seal Material

Nitrile Rubber (NBR)

Voltage

24V dc

Series

V51

Solenoid Type

Single

Mount Type

Manifold, In-Line

Number of Ports

5

Maximum Operating Pressure

8 bar

Body Material

Die Cast Aluminium

Maximum Pilot Pressure

8bar

Maximum Flow Rate

1020L/min

Minimum Pilot Pressure

2bar

Port Gender

Female

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

50°C

Solenoid Power Consumption

2W

Width

22.5mm

Standards/Approvals

RoHS

Hazardous Area Certification

No

Height

67mm

Length

173mm

Electrical Connection Type

Plug Socket

Number of Positions

2

RS PRO Pneumatic Solenoid Valve - Solenoid/Solenoid, G 1/4, V51 Series, 24 V DC


Use this RS PRO solenoid valve to regulate your pneumatic circuits using an electrical connection. You can mount it either as a manifold configuration or inline, so it's a versatile option for setting up your pneumatic system.The valve is compatible with both lubricated and non-lubricated gas or air, meaning it's safe to use whether your pneumatic system has been oiled or not. It's also an energy-efficient option that saves you money and reduces your environmental impact.Thanks to the valve's soft-seal spool design, it creates a tight seal to prevent leaks. You can simply push or turn the lock to manually override the valve, making it easy to control.

Features and Benefits


  • Solenoid/air actuation type

  • Die-cast aluminium body material

  • 44232 port configuration

  • G 1/4 connection port thread

  • Maximum flow rate of 1020 L/min

  • Maximum operating pressure of 8 bar

  • Minimum operating pressure of 2 bar

  • Operating temperature range of -5°C to +50°C

  • Inline and manifold mounting styles

  • Five ports

  • Two positions

  • Solenoid power consumption of 2 W

  • Solenoid voltage of 24 V DC

  • Compact, robust design

  • High-flow inline valves

  • Low-power, energy-efficient solenoid
