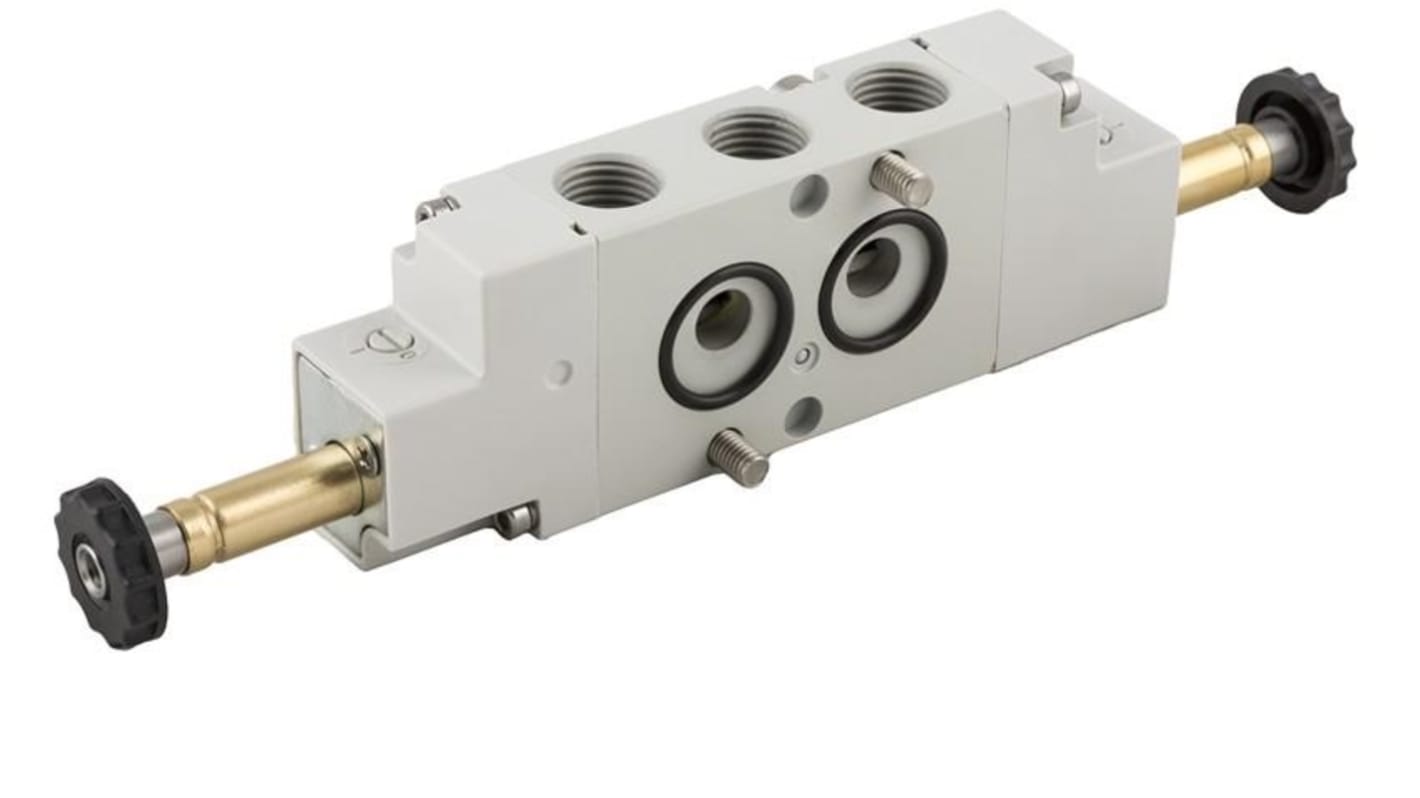

RS PRO Solenoid Valve - Bistable Solenoid BSP

N° de stock RS:: 231-2552
Fabricant:: RS PRO

RS PRO Solenoid Valve - Bistable Solenoid BSP

Sous-total (1 unité)*

139,39 €

(TVA exclue)

168,66 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

7 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	139,39 €

*Prix donné à titre indicatif

N° de stock RS:: 231-2552
Fabricant:: RS PRO

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	RS PRO
	Product Type	Solenoid Valve
	Port Size	1/4 in
	Connection Thread Standard	BSP
	Actuation Type	Solenoid
	Series	RS PRO
	Seal Material	Nitrile Rubber (NBR)
	Solenoid Type	Single
	Mount Type	NAMUR
	Number of Ports	5
	Body Material	Aluminium
	Maximum Operating Pressure	10 bar
	Valve Function	Bistable
	Maximum Flow Rate	1200NL/min
	Port Gender	Female
	Minimum Pilot Pressure	2bar
	Minimum Operating Temperature	-10°C
	Maximum Pilot Pressure	10bar
	Solenoid Power Consumption	2W
	Maximum Operating Temperature	60°C
	Width	40mm
	Standards/Approvals	RoHS
	Hazardous Area Certification	No
	Length	189.6mm
	Height	22mm
	Number of Positions	2

	Sélectionner tout
	Marque RS PRO
	Product Type Solenoid Valve
	Port Size 1/4 in
	Connection Thread Standard BSP
	Actuation Type Solenoid
	Series RS PRO
	Seal Material Nitrile Rubber (NBR)
	Solenoid Type Single
	Mount Type NAMUR
	Number of Ports 5
	Body Material Aluminium
	Maximum Operating Pressure 10 bar
	Valve Function Bistable
	Maximum Flow Rate 1200NL/min
	Port Gender Female
	Minimum Pilot Pressure 2bar
	Minimum Operating Temperature -10°C
	Maximum Pilot Pressure 10bar
	Solenoid Power Consumption 2W
	Maximum Operating Temperature 60°C
	Width 40mm
	Standards/Approvals RoHS
	Hazardous Area Certification No
	Length 189.6mm
	Height 22mm
	Number of Positions 2

Se connecter pour voir les modèles CAO

Pays d'origine :: IT

RS PRO Pneumatic Solenoid Valve

Introducing the range of RS PRO Pneumatic Solenoid Valve Fittings, designed for controlling air flow in pneumatic systems and applications. This high-quality and durable pneumatic valve fitting ensures optimum performance for operations that use high pressure and high temperature, without compromising the longevity of the fitting. Available in a wide range of sizes, the fitting allows easy connection and installation with other components, saving on valuable time and resource.

Features and Benefits:

The range of RS PRO solenoid valve fittings are specially designed for controlling air flow in pneumatic systems and are suitable for applications such as pressure release and vacuum systems

The valve has a 5/2 configuration means it has five ports and two switching positions and works on solenoid actuation

The solenoid coils are energy-saving and available in a range of voltages

It has been designed to support large flow capacity, short change-over times and low change-over pressure in a range of applications

In addition to this, the valve is also ATEX-approved for use in hazardous or explosive areas

Applications:

Pneumatic solenoid valves are included in a range of pneumatic accessories that are primarily used to manage air, liquid or gas flow in a variety of industrial settings, as well as pneumatic, automation and control applications. These include:

Textile production

Pneumatic automation

Pneumatic presses and equipment used in the food and beverage industry
