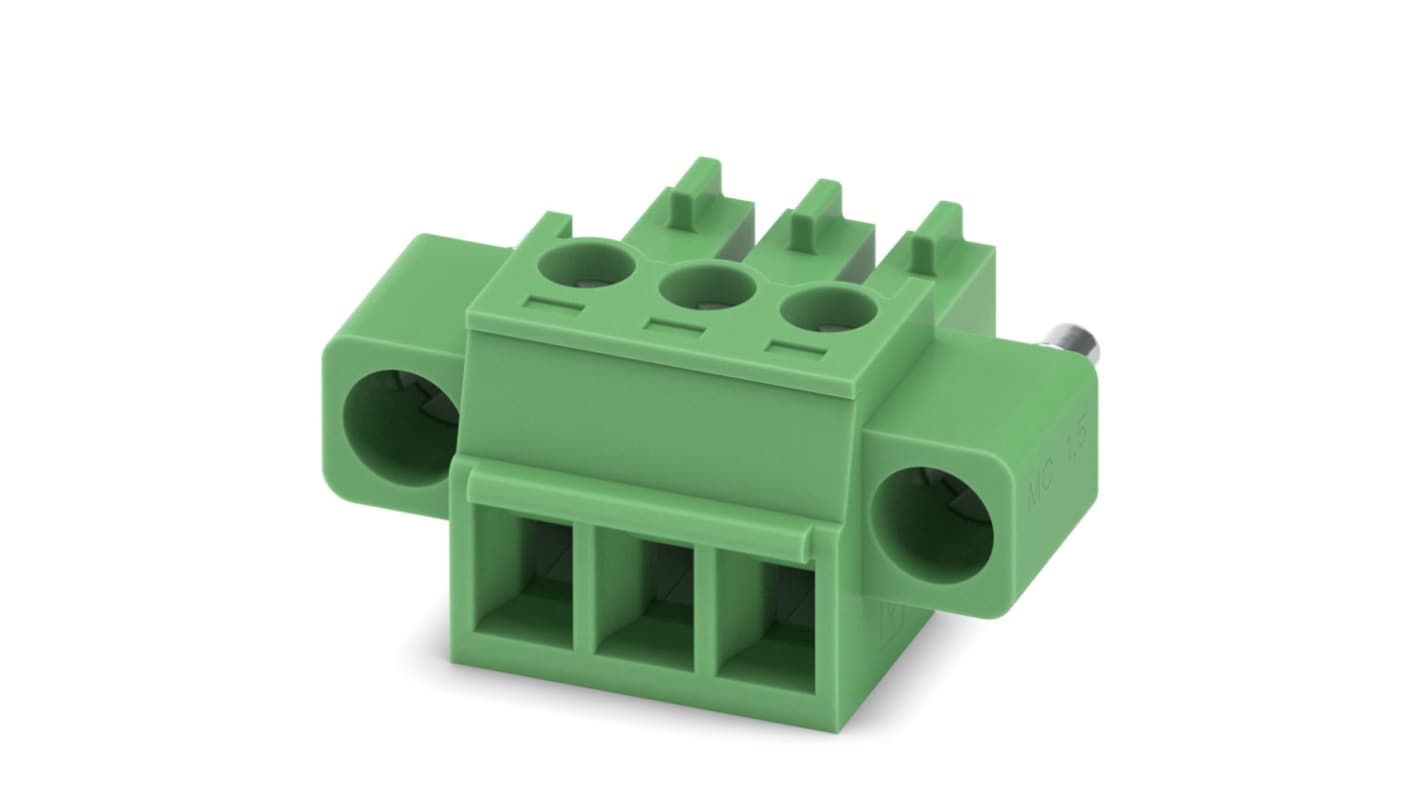

Phoenix Contact, 3.81mm Pitch, MC 1.5/ 3-STF-3.81, 3 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw

Phoenix brings you a series of MC PCB terminal connectors. Featuring a 3.81mm pitch and a well-known name, these connectors are brilliant. They allow a wire from 0.14mm² up to 1.5mm² with a simple screw connection with a tension sleeve and horizontal wire entry. Each connector can have a maximum of two connections with a rated current of 8A.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

• Maximum reliability due to high quality materials
• 3.81mm pitch
• Screw connection with termination device to help prevent loosening of wire in high vibration
• Copper alloy contact material with tin plated terminal points
• -40°c to +70°c operating temperatures
• Height of only 8mm above the board for a small compact fit

These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”

Other accessories:
• Marker cards – 648-5508
• Cable housing – 742-7409

Use this pluggable terminal block from Phoenix Contact to seamlessly transfer data, signals and power to your printed circuit board. You can use wires sized between 0.14 and 1.5mm² between the poles in this terminal, and the 3.81mm pitch will give you plenty of room for them.
The three contacts are made from a copper alloy that’s highly effective at conducting electrical current, so you can be sure of stable operation. The robust polyamide housing will stand up well to tough working conditions. Cable mounting and screw termination methods allow for straightforward and secure female-to-male pairing, while the straight body orientation means that this device will fit into your system efficiently.

• Compact dimensions of 16.1 (W) x 21.82 (L) x 11.1mm (D) to save space in your setup
• Current rating of 8A and voltage rating of 320V allow for use in low-power systems
• Maximum contact force ensures a low temperature rise during operation, minimising energy wastage
• Allows a connection of two conductors for greater system efficiency
• Easy-to-use screwable flange for better stability
