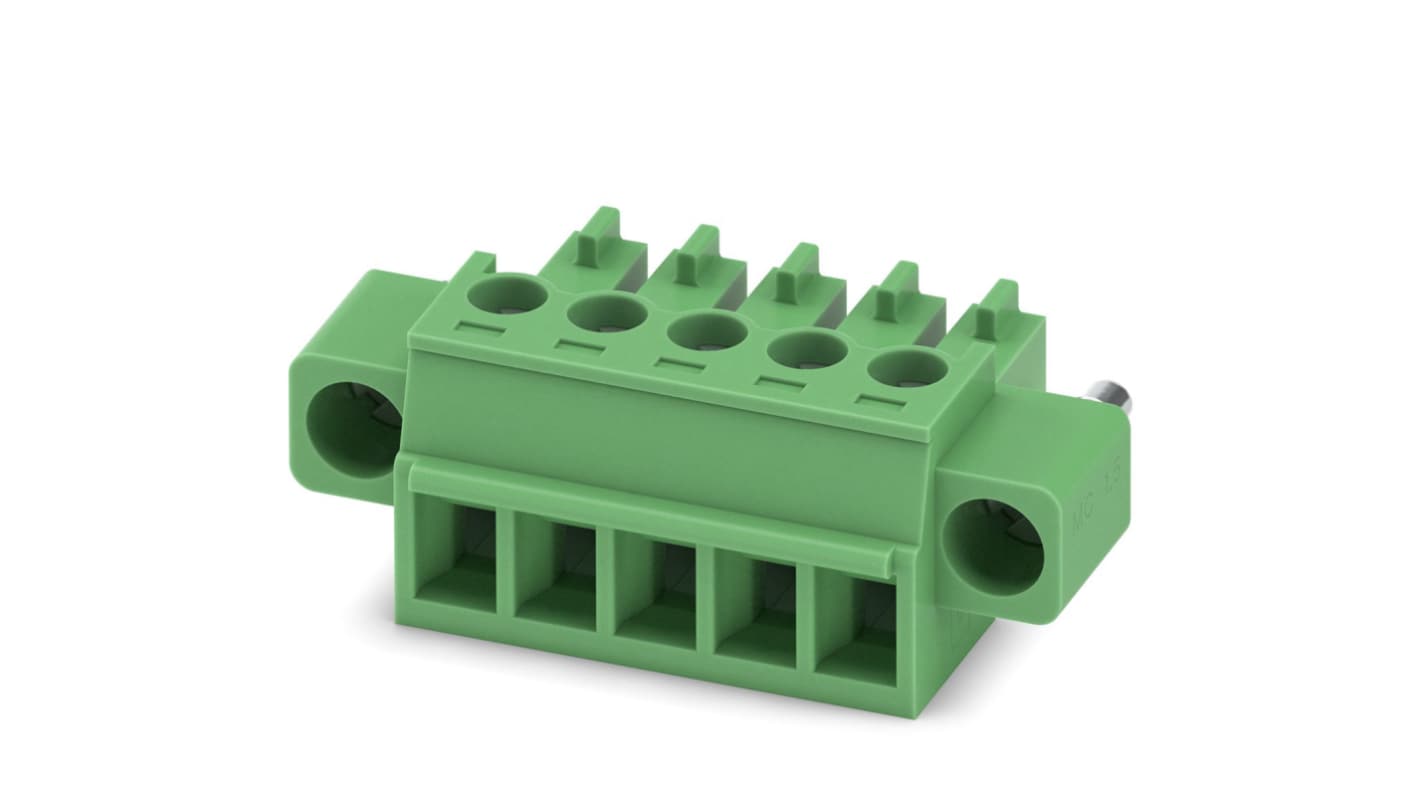

Phoenix Contact, 3.81mm Pitch, MC 1.5/ 5-STF-3.81, 5 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw

Phoenix brings you a series of MC PCB terminal connectors. Featuring a 3.81mm pitch and a well-known name, these connectors are brilliant. They allow a wire from 0.14mm² up to 1.5mm² with a simple screw connection with a tension sleeve and horizontal wire entry. Each connector can have a maximum of two connections with a rated current of 8A.

These terminal blocks allow you to transfer data, signals and power directly to your PCB safely. They make ideal use as permanent solution however can be used in temporary circuitry.

• Maximum reliability due to high quality materials
• 3.81mm pitch
• Screw connection with termination device to help prevent loosening of wire in high vibration
• Copper alloy contact material with tin plated terminal points
• -40°c to +70°c operating temperatures
• Height of only 8mm above the board for a small compact fit

These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “125-3078”

Other accessories:
• Marker cards – 648-5508
• Cable housing – 742-7409

This pluggable terminal block is intended for reliable connections in a variety of automation, electronics, and electrical systems. Its compact design and straightforward screw termination method make it suitable for multiple applications while ensuring secure connections, catering to the needs of contemporary industrial settings.

• Screw locking mechanism enhances security
• Current rating of up to 8A for solid performance
• Constructed from green polyamide, ensuring durability and environmental compliance
• Compact design with a 3.81mm pitch optimises space
• Supports up to 5 contacts, offering versatility
• Simplified cable mounting for easy installation

• Interconnecting wires in control cabinets
• Terminal strips in automation configurations
• Power distribution systems
• PCB connections in electronic devices
• Machinery and equipment for signal transmission

The secure screw termination method provides mechanical stability, preventing loosening and disconnections.

It operates effectively up to 320V, making it suitable for a variety of applications.

It accommodates rigid and flexible conductors from 0.14 to 1.5mm², making it adaptable for various wiring needs.

A standard screwdriver is sufficient for connecting conductors using the screw locking mechanism.

Yes, it functions effectively within a wide temperature range from -40 to 100°C.
