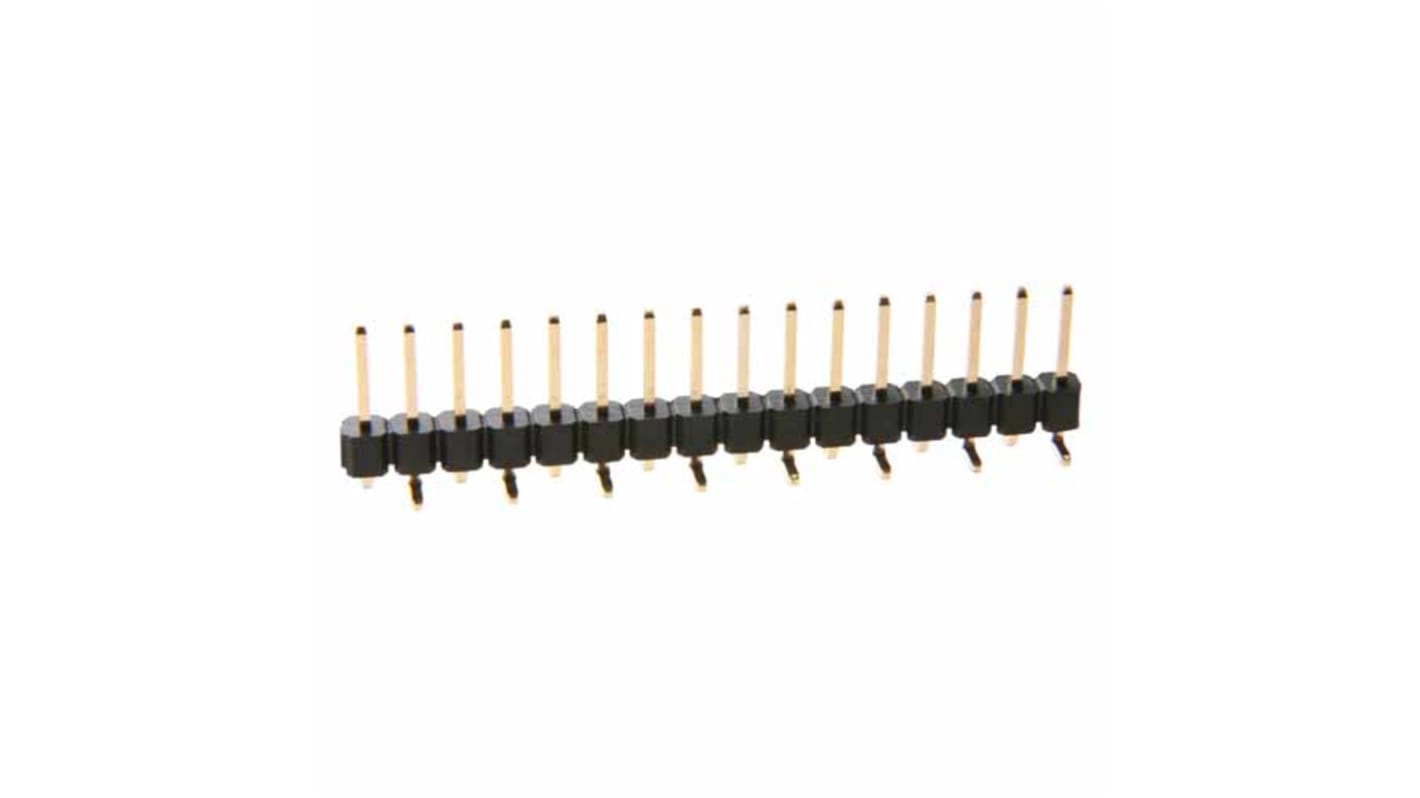

HARWIN M20 Series Vertical Surface Pin Header, 3 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded
- N° de stock RS:
- 247-9122
- Référence fabricant:
- M20-8770342R
- Fabricant:
- HARWIN
Sous-total (1 bobine de 450 unités)*
225,45 €
(TVA exclue)
272,70 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 01 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 450 + | 0,501 € | 225,45 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 247-9122
- Référence fabricant:
- M20-8770342R
- Fabricant:
- HARWIN
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARWIN | |
| Series | M20 | |
| Product Type | Pin Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 105°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Standards/Approvals | UL | |
| Mating Pin Length | 5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque HARWIN | ||
Series M20 | ||
Product Type Pin Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Thermoplastic | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Minimum Operating Temperature 105°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature -40°C | ||
Contact Gender Male | ||
Standards/Approvals UL | ||
Mating Pin Length 5mm | ||
Statut RoHS non applicable
- Pays d'origine :
- TW
The HARWIN PCB connectors has contact pitch of 2.54 mm and have 0.64 mm square pins and suitable for interconnecting board to board and board to wire. The plug pin is held in a moulding and is available for either horizontal or vertical, surface mount or through board solder mounting.
Contact gender male/plug
Connector orientation vertical
Connection type surface mount
Mating pin size 0.64mm square
