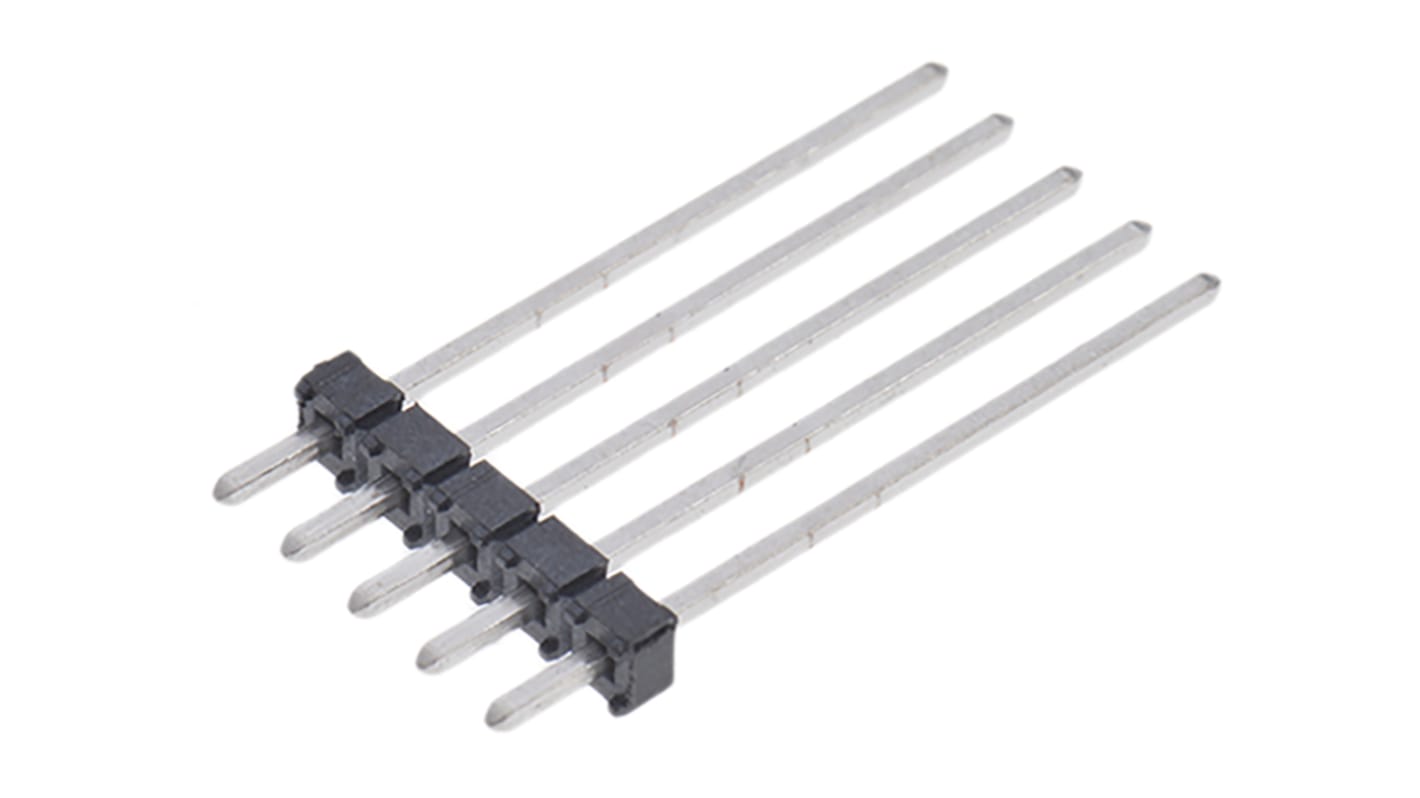

Samtec MTMM Series Straight Through Hole Pin Header, 5 Contact(s), 2 mm Pitch, 1 Row, Unshrouded
- N° de stock RS:
- 451-708
- Référence fabricant:
- MTMM-105-14-T-S-590
- Fabricant:
- Samtec
Offre groupée disponible
Sous-total (1 unité)*
0,97 €
(TVA exclue)
1,17 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 49 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 12 unité(s) expédiée(s) à partir du 06 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 19 | 0,97 € |
| 20 - 74 | 0,77 € |
| 75 - 299 | 0,68 € |
| 300 - 599 | 0,62 € |
| 600 + | 0,59 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 451-708
- Référence fabricant:
- MTMM-105-14-T-S-590
- Fabricant:
- Samtec
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Samtec | |
| Series | MTMM | |
| Product Type | Pin Header | |
| Pitch | 2mm | |
| Current | 3A | |
| Housing Material | Polymer | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Row Pitch | 2mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Samtec | ||
Series MTMM | ||
Product Type Pin Header | ||
Pitch 2mm | ||
Current 3A | ||
Housing Material Polymer | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Connector System Board-to-Board, Wire-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Row Pitch 2mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
The Samtec Pin Header MTMM FleXYZ series is a signal/power combo terminal strip. The MTMM is a header strip for through-hole termination. Available in custom configurations up to 200 pins in 4 rows, this 2. 00 mm (. 0787") pitch connector offers the customer huge flexibility and current ratings of up to 3. 2 Amps per pin. The customer can specify the exact post height to suit their application.
Choice of single, double or quad row
