Pico Technology 5444D MSO PicoScope 5000D Series, 200MHz PC Based Oscilloscope, 4 Analogue Channels, 16 Digital

Voir l’ensemble des Oscilloscopes

Sous-total (1 unité)*

3 653,34 €

(TVA exclue)

4 420,54 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 3 unité(s) expédiée(s) à partir du 15 décembre 2025
  • Plus 3 unité(s) expédiée(s) à partir du 24 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +3 653,34 €

*Prix donné à titre indicatif

N° de stock RS:
174-9619
Référence fabricant:
PicoScope 5444D MSO
Fabricant:
Pico Technology
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Pico Technology

Bandwidth

200MHz

Number of Analogue Channels

4

Number of Digital Channels

16

Calibrated

UKAS

Oscilloscope Type

PC Based

Oscilloscope Form

Mixed Signal

Interface

CAN, LIN, RS232, RS422, RS485, SPI, UART, USB

Sample Rate Random

10 Gsps

Series

PicoScope 5000D

Rise Time

1.75ns

Minimum Time Base

1ns/div

Dimensions

190 x 170 x 40mm

Vertical Resolution

16 bit

Maximum Time Base

5000s/div

Weight

0.5kg

Minimum Vertical Sensitivity

2mV/div

Maximum Vertical Sensitivity

4V/div

Power Source

AC Adapter, USB

Digital/Analogue

Digital

Pays d'origine :
GB

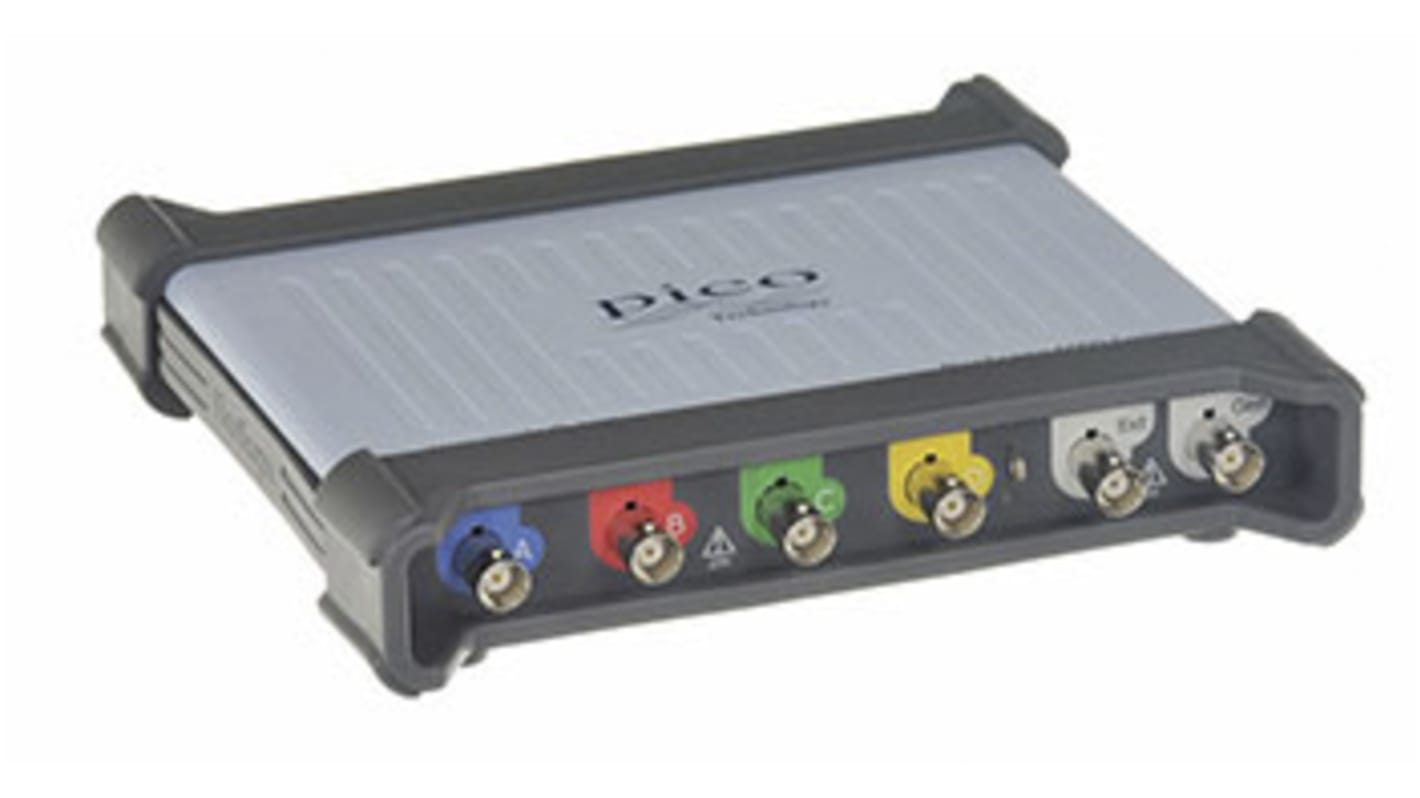

Pico Technology Picoscope 5444D MSO


The PicoScope 5444D MOS is a high-performance, 4-channel oscilloscope from Pico Technology. It's part of the PicoScope 5000 Series, known for their high speed, resolution, and sampling rates. This flexible hardware instrument has a resolution of 8 to 16 bits and an analogue bandwidth of 200MHz. The 5444D MSO USB PicoScope also has a built-in arbitrary waveform generator and mixed signal digital debug capabilities.

Features and Benefits


200 MHz analog bandwidth
FlexRes® Technology - switches between 8 and 16 bits for optimal performance
1 GS/s sampling at 8 bit resolution
500 MS/s sampling at 12 bit resolution
62.5 MS/s sampling at 16 bit resolution
512 MS buffer memory
MOS models have 16 digital channels so that you can view digital and analog signals simultaneously
100,000 waveforms per second
200 MS/s Arbitrary Waveform Generator
Serial decoding and mask testing as standard
Windows, Linux and Mac software
Multi-instrument Capabilities - can be used as a logic analyser, spectrum analyser, and more

Applications


The PicoScope 5444D MSO is a versatile and powerful tool for a wide range of applications. It's ideal for engineers, technicians, and students who need a high-quality oscilloscope with a variety of features and can be found in the following areas:
• Sciences, medicine, engineering and automotive industries
• Laboratory work and telecom industries
• Research and development
• Production testing
• Education and training
• General-purpose troubleshooting
