Pico Technology PicoScope 5000D Series, 200 MHz PC Based Oscilloscope 4-Channel - RSCAL

Voir l’ensemble des Oscilloscopes

Sous-total (1 unité)*

3 062,85 €

(TVA exclue)

3 706,05 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • 2 unité(s) expédiée(s) à partir du 15 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +3 062,85 €

*Prix donné à titre indicatif

N° de stock RS:
174-9606
Numéro d'article Distrelec:
304-46-518
Référence fabricant:
PicoScope 5444D
Fabricant:
Pico Technology
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Pico Technology

Product Type

Oscilloscope

Bandwidth

200MHz

Number of Channels

4

Oscilloscope Type

PC Based

Interface Type

CAN, LIN, RS232, RS422, RS485, SPI, UART, USB

Series

PicoScope 5000D

Standards/Approvals

No

Maximum Vertical Sensitivity

4V/div

Minimum Vertical Sensitivity

2mV/div

Rise Time

1.75ns

Vertical Resolution

16 bit

Power Source

AC Adapter, USB

Calibrated

RSCAL

Maximum Time Base

5000s/div

Minimum Time Base

1ns/div

Pays d'origine :
GB

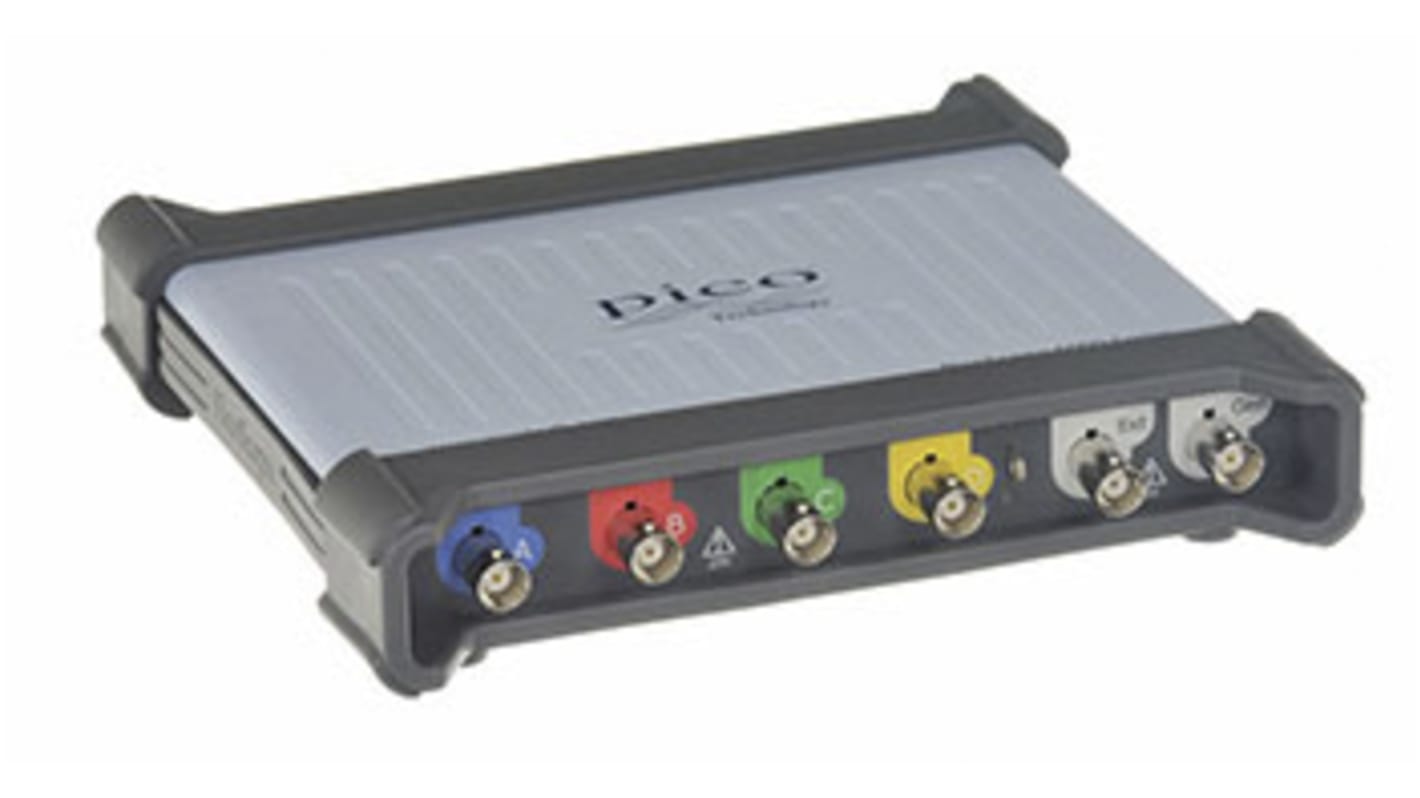

PicoScope 5444D USB Oscilloscope


The PicoScope 5444D is a 4-channel oscilloscope from Pico Technology. It's a high-performance device designed for demanding applications in research, development, and production environments.

The PicoScope 5000D 200MHz series bench oscilloscope has all the features that we can find in the highly advanced bench type oscilloscopes. This oscilloscope is a powerful and versatile device with high speed, resolution and sampling rates. It has multi-instrument and measurement capabilities, therefore proves to be an excellent tool.

The PicoScope oscilloscope has breakthrough ADC technology and switches from 8 to 16 bits in the same oscilloscope with four different independent channels.

Features and Benefits


• High bandwidth of 200MHz

• Intuitive user interface

• Flexible hardware resolution of 8 to 16 bits

• Large analogue bandwidth of 200MHz

• High sampling rate of 1GS/s at 8 bit resolution

• High sampling rate of 500MS/s at 12 bit resolution

• High sampling rate of 62.5MS/s at 16 bit resolution

• Large buffer memory 512MS

• 100,000wfms/s

• 200MS/s arbitrary waveform generator

• Serial decoding and mask testing

• Compatible with different systems like Windows, Linux and Mac

Applications


• Educational laboratories

• Electronics troubleshooting and measurement

• Embedded electronics

• Mixed signal and video designing

• Automotive electronics
