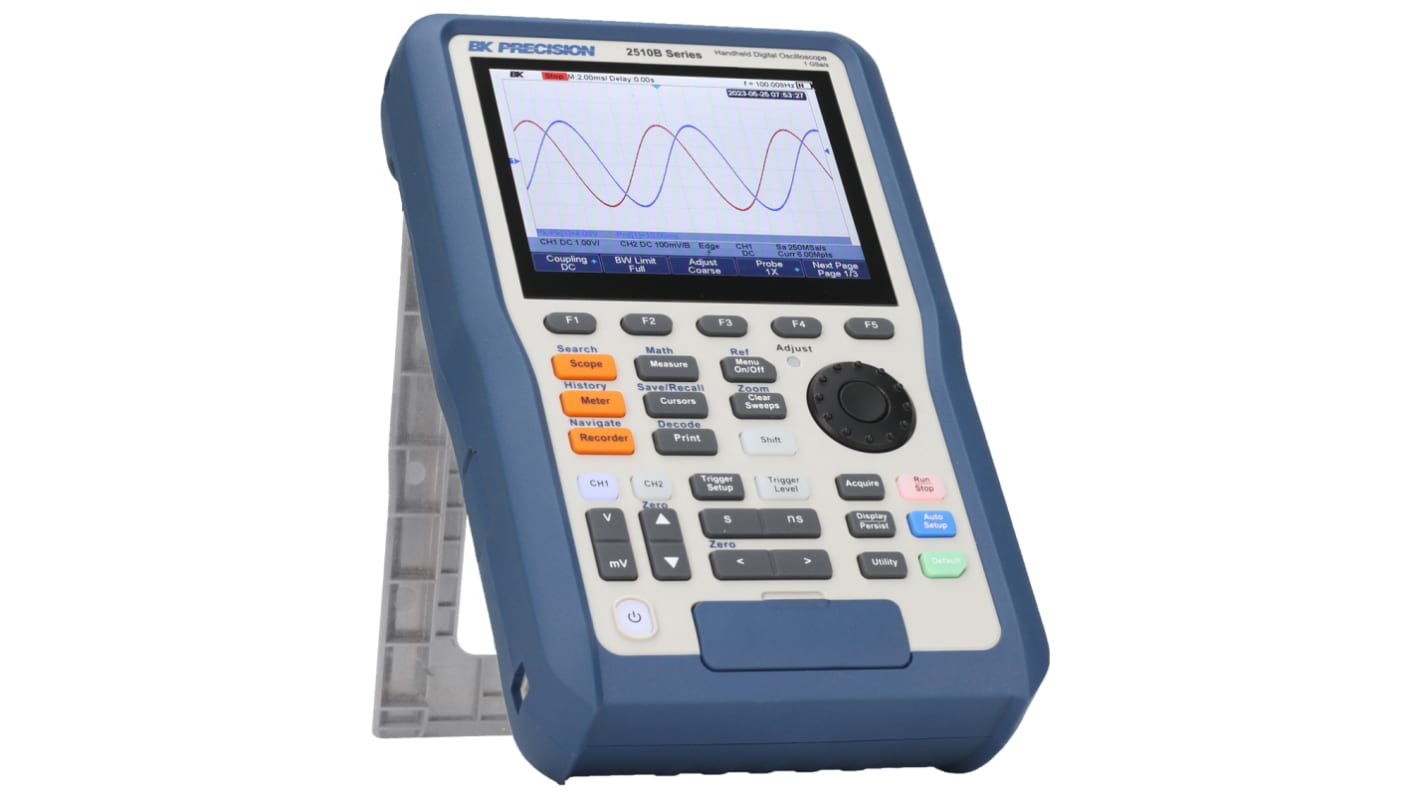

BK Precision 2510B Series, 100 MHz Handheld Digital Oscilloscope, 2 Channels - RSCAL

Voir l’ensemble des Oscilloscopes

Sous-total (1 unité)*

3 325,50 €

(TVA exclue)

4 023,86 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 2 unité(s) expédiée(s) à partir du 13 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +3 325,50 €

*Prix donné à titre indicatif

N° de stock RS:
142-244
Référence fabricant:
BK2515B
Fabricant:
BK Precision
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

BK Precision

Product Type

Digital Oscilloscope

Bandwidth

100MHz

Number of Channels

2

Oscilloscope Type

Handheld

Oscilloscope Form

Digital Storage

Memory Depth

12Mpts

Interface Type

USB

Screen Size

5.6 in

Series

2510B

Width

168mm

Standards/Approvals

EMC 2014/30/EU, IEC 613261:2012/EN613261:2013 (Basic)

Depth

68mm

Height

276mm

Rise Time

2ns

Calibrated

RSCAL

Vertical Resolution

8 bit

Display Type

TFT

Power Source

Adapter

Safety Category Voltage

1000V

Safety Category Level

CAT II, CAT III

Pays d'origine :
CN
The BK Precision 2510B Series handheld digital storage oscilloscopes combine floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 100 MHz and 200 MHz bandwidth scopes provide two channels with 1 GSa/s sample rates, 12 Mpts memory depth, 38 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input, and the USB host and device ports.

100 MHz and 200 MHz bandwidth

1 GSa/s sample rate

Fully isolated 1000 V CAT II and 600 V CAT III input rating (models 2515B / 2516B)

Non-isolated 300 V CAT II input rating (models 2511B / 2512B)

12 Mpts memory depth

Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols

FFT Plus 7 additional math functions

Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test

Recorder and trend plot functions to log data

USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive

Standard micro-USB device port for remote PC control
