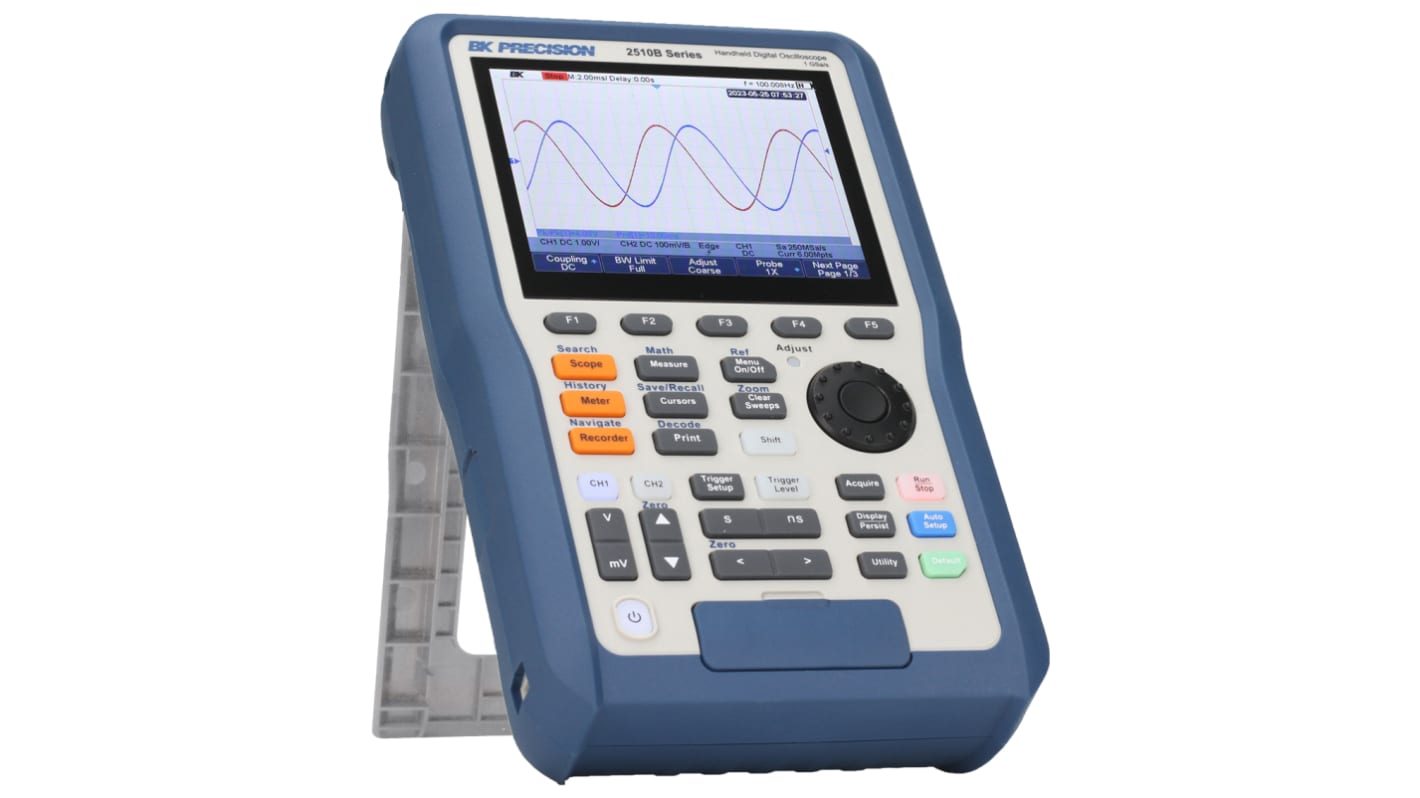

BK Precision 2510B Series, 2515B, 100 MHz Handheld Digital Oscilloscope, 2 Channels
- N° de stock RS:
- 142-243
- Référence fabricant:
- BK2515B
- Fabricant:
- BK Precision
Sous-total (1 unité)*
3 193,00 €
(TVA exclue)
3 863,53 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 17 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 3 193,00 € |
*Prix donné à titre indicatif
Options d'étalonnage
la pièce
3 313,06 €
(TVA exclue)
4 008,80 €
(TVA incluse)
la pièce
3 351,34 €
(TVA exclue)
4 055,12 €
(TVA incluse)
- N° de stock RS:
- 142-243
- Référence fabricant:
- BK2515B
- Fabricant:
- BK Precision
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | BK Precision | |
| Product Type | Digital Oscilloscope | |
| Bandwidth | 100MHz | |
| Number of Channels | 2 | |
| Model Number | 2515B | |
| Oscilloscope Type | Handheld | |
| Oscilloscope Form | Digital Storage | |
| Memory Depth | 12Mpts | |
| Interface Type | USB | |
| Screen Size | 5.6 in | |
| Series | 2510B | |
| Height | 276mm | |
| Depth | 68mm | |
| Width | 168mm | |
| Standards/Approvals | EMC 2014/30/EU, IEC 613261:2012/EN613261:2013 (Basic) | |
| Vertical Resolution | 8 bit | |
| Display Type | TFT | |
| Rise Time | 2ns | |
| Safety Category Level | CAT II, CAT III | |
| Safety Category Voltage | 1kV | |
| Power Source | Adapter | |
| Sélectionner tout | ||
|---|---|---|
Marque BK Precision | ||
Product Type Digital Oscilloscope | ||
Bandwidth 100MHz | ||
Number of Channels 2 | ||
Model Number 2515B | ||
Oscilloscope Type Handheld | ||
Oscilloscope Form Digital Storage | ||
Memory Depth 12Mpts | ||
Interface Type USB | ||
Screen Size 5.6 in | ||
Series 2510B | ||
Height 276mm | ||
Depth 68mm | ||
Width 168mm | ||
Standards/Approvals EMC 2014/30/EU, IEC 613261:2012/EN613261:2013 (Basic) | ||
Vertical Resolution 8 bit | ||
Display Type TFT | ||
Rise Time 2ns | ||
Safety Category Level CAT II, CAT III | ||
Safety Category Voltage 1kV | ||
Power Source Adapter | ||
- Pays d'origine :
- CN
The BK Precision 2510B Series handheld digital storage oscilloscopes combine floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 100 MHz and 200 MHz bandwidth scopes provide two channels with 1 GSa/s sample rates, 12 Mpts memory depth, 38 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input, and the USB host and device ports.
100 MHz and 200 MHz bandwidth
1 GSa/s sample rate
Fully isolated 1000 V CAT II and 600 V CAT III input rating (models 2515B / 2516B)
Non-isolated 300 V CAT II input rating (models 2511B / 2512B)
12 Mpts memory depth
Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols
FFT Plus 7 additional math functions
Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
Recorder and trend plot functions to log data
USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
Standard micro-USB device port for remote PC control
