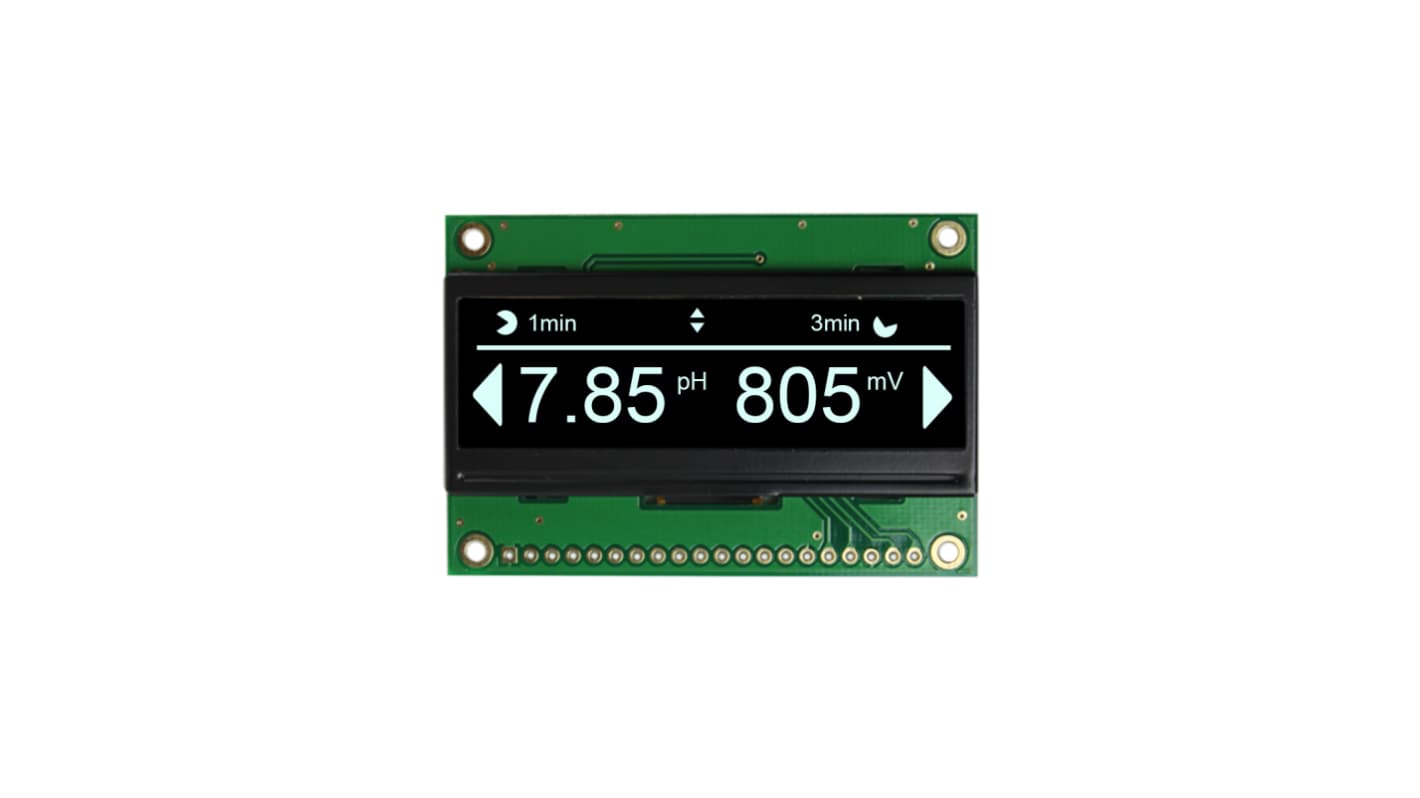

NEWHAVEN DISPLAY INTERNATIONAL 2.23 in Passive matrix White OLED Display 128 x 32 pixel PCB I2C, Parallel, SPI
- N° de stock RS:
- 181-321
- Référence fabricant:
- NHD-2.23-12832UCW3
- Fabricant:
- NEWHAVEN DISPLAY INTERNATIONAL
Sous-total (1 unité)*
31,27 €
(TVA exclue)
37,84 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 10 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 31,27 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 181-321
- Référence fabricant:
- NHD-2.23-12832UCW3
- Fabricant:
- NEWHAVEN DISPLAY INTERNATIONAL
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | NEWHAVEN DISPLAY INTERNATIONAL | |
| Product Type | OLED Display | |
| Diagonal Display Size | 2.23in | |
| Viewing Area Dimensions | 57.02 x 15.1 mm | |
| Aspect Ratio | 4:1 | |
| Matrix Type | Passive | |
| Screen Resolution | 128 x 32 pixel | |
| Interface Type | I2C, Parallel, SPI | |
| Contrast Ratio | 10000:1 | |
| External Depth | 5.5mm | |
| Driver Mounting | PCB | |
| Minimum Operating Temperature | -40°C | |
| External Width | 43.1mm | |
| External Height | 63.2mm | |
| Touch Screen Type | No Touch Screen | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS Compliant | |
| Forward Current | 113mA | |
| Power Dissipation | 0.37W | |
| Series | NHD-2.23-12832UCW3 | |
| Display Colour | White | |
| Forward Voltage | 3.3V | |
| Sélectionner tout | ||
|---|---|---|
Marque NEWHAVEN DISPLAY INTERNATIONAL | ||
Product Type OLED Display | ||
Diagonal Display Size 2.23in | ||
Viewing Area Dimensions 57.02 x 15.1 mm | ||
Aspect Ratio 4:1 | ||
Matrix Type Passive | ||
Screen Resolution 128 x 32 pixel | ||
Interface Type I2C, Parallel, SPI | ||
Contrast Ratio 10000:1 | ||
External Depth 5.5mm | ||
Driver Mounting PCB | ||
Minimum Operating Temperature -40°C | ||
External Width 43.1mm | ||
External Height 63.2mm | ||
Touch Screen Type No Touch Screen | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS Compliant | ||
Forward Current 113mA | ||
Power Dissipation 0.37W | ||
Series NHD-2.23-12832UCW3 | ||
Display Colour White | ||
Forward Voltage 3.3V | ||
- Pays d'origine :
- CN
The NEWHAVEN DISPLAY INTERNATIONAL OLED display module offers an impressive 128 x 32 pixel resolution, delivering crisp image quality and vibrant colours for various applications. Designed to provide exceptional performance, it is particularly suited for modern electronic devices requiring reliable visual output.
High contrast ratio ensures clear visibility even in challenging lighting conditions
Compact size fits easily into space constrained environments
Durable construction enhances longevity and reliability
RoHS compliant ensuring environmental responsibility
