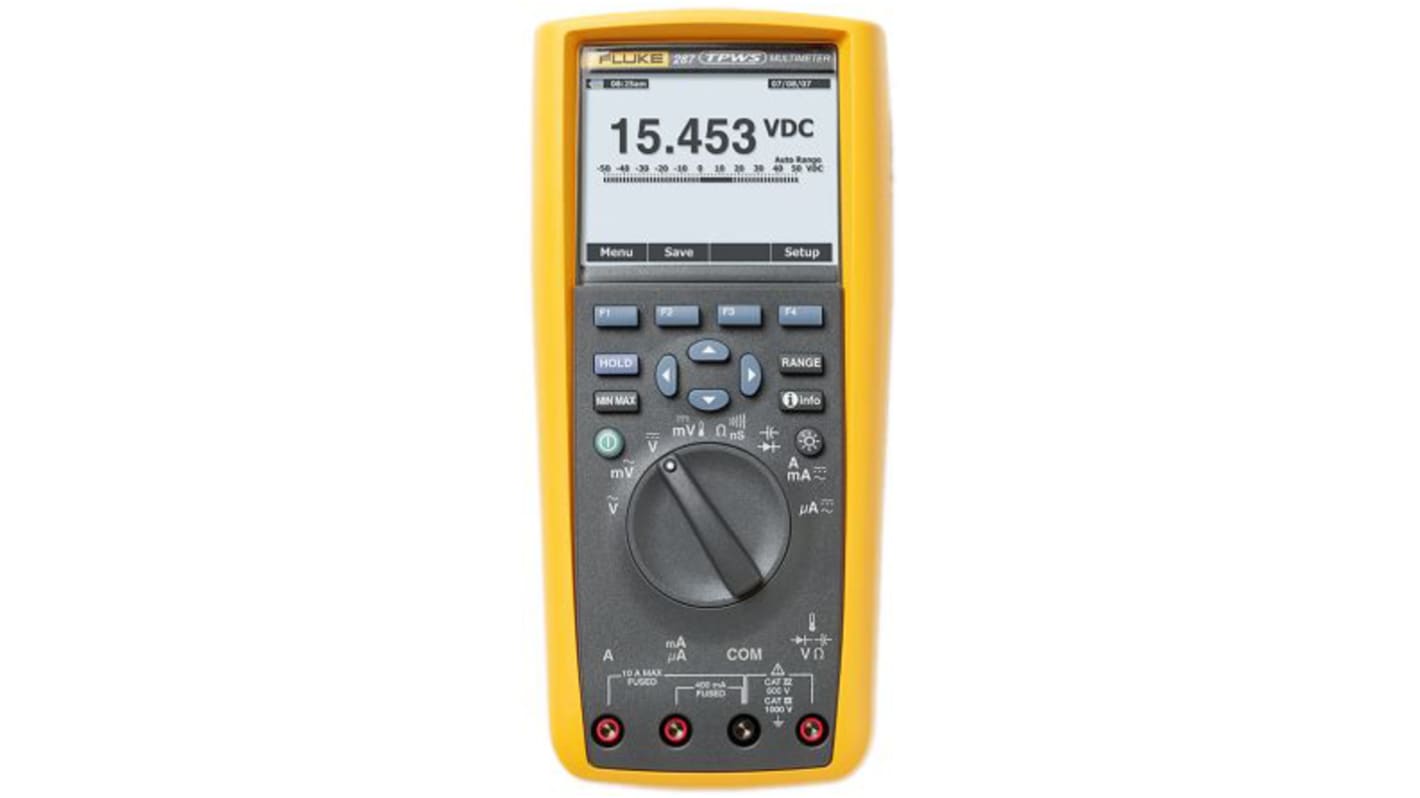

Fluke 287 Handheld Multimeter True RMS, 10 A, 10 A, 1 kV, RSCAL Calibrated

N° de stock RS:: 218-400
Référence fabricant:: 3947781
Fabricant:: Fluke

Fluke 287 Handheld Multimeter True RMS, 10 A, 10 A, 1 kV, RSCAL Calibrated

Sous-total (1 unité)*

1 075,00 €

(TVA exclue)

1 300,75 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

16 unité(s) prête(s) à être expédiée(s)
Plus 14 unité(s) expédiée(s) à partir du 15 octobre 2026
Plus 21 unité(s) expédiée(s) à partir du 22 octobre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	1 075,00 €

*Prix donné à titre indicatif

N° de stock RS:: 218-400
Référence fabricant:: 3947781
Fabricant:: Fluke

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Fluke
	Multimeter Type	Handheld
	Product Type	Multimeter
	Model Number	287
	Resistance Resolution	500Ω
	Display Type	Digital
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
	Maximum AC Current Measurement	10A
	Maximum DC Voltage Measurement	1kV dc
	Maximum AC Voltage Measurement	1kV
	Maximum Resistance Measurement	0.5GΩ
	Maximum DC Current Measurement	10A
	True RMS	Yes
	DC Current Accuracy	±0.15 %
	AC Voltage Accuracy	± 0.4 %
	AC Current Accuracy	± 0.6 %
	DC Voltage Accuracy	±0.025 %
	AC Voltage Resolution	50mV
	AC Current Resolution	500μA
	DC Current Resolution	500μA
	DC Voltage Resolution	50 mV
	Maximum Frequency	999.99kHz
	Power Source	Battery
	Resistance Measurement Accuracy	±0.05 % rdg
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	55°C
	Battery Life	200h
	Weight	870.9g
	Height	222mm
	Standards/Approvals	No
	Width	102mm
	Length	60mm
	Safety Category Level	CAT III, CAT IV
	Calibrated	RSCAL
	Safety Category Voltage	1kV
	Battery Type	AA x 6

	Sélectionner tout
	Marque Fluke
	Multimeter Type Handheld
	Product Type Multimeter
	Model Number 287
	Resistance Resolution 500Ω
	Display Type Digital
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
	Maximum AC Current Measurement 10A
	Maximum DC Voltage Measurement 1kV dc
	Maximum AC Voltage Measurement 1kV
	Maximum Resistance Measurement 0.5GΩ
	Maximum DC Current Measurement 10A
	True RMS Yes
	DC Current Accuracy ±0.15 %
	AC Voltage Accuracy ± 0.4 %
	AC Current Accuracy ± 0.6 %
	DC Voltage Accuracy ±0.025 %
	AC Voltage Resolution 50mV
	AC Current Resolution 500μA
	DC Current Resolution 500μA
	DC Voltage Resolution 50 mV
	Maximum Frequency 999.99kHz
	Power Source Battery
	Resistance Measurement Accuracy ±0.05 % rdg
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 55°C
	Battery Life 200h
	Weight 870.9g
	Height 222mm
	Standards/Approvals No
	Width 102mm
	Length 60mm
	Safety Category Level CAT III, CAT IV
	Calibrated RSCAL
	Safety Category Voltage 1kV
	Battery Type AA x 6

Statut RoHS : Exempté

Pays d'origine :: US

Fluke Multimeter, 1000V Safety Category Voltage, 10A Maximum AC Current Measurement - 3947781

This multimeter is a handheld digital instrument designed to measure electrical quantities across AC and DC systems, with extended capabilities for temperature, frequency and capacitance assessments. It operates from battery power and is intended for use in environments requiring high-voltage measurement and robust safety categorisation.

Features and Benefits:

• True RMS measurement for accurate AC readings in non‑sinusoidal signals
• 1kV DC and 1000V AC rating for high‑voltage diagnostic tasks
• 10A maximum current range supporting both AC and DC circuits
• Frequency range to 999.99kHz for detailed signal analysis
• Resistance range to 0.5GΩ for high‑impedance component testing
• Battery life approximately 200 h using six AA cells

Applications

• Suitable for industrial high‑voltage system troubleshooting
• Ideal for verification of motor drive frequency outputs
• Used for capacitance checks on control circuit components
• Can be used for HVAC temperature monitoring and diagnostics
• Used with power distribution panels requiring CAT IV safety levels

What battery type does it use and how long will it last under normal use?

It uses six AA batteries and provides approximately 200 h of operational life.

What safety categories and maximum voltages are supported for live work?

The instrument meets CAT III and CAT IV classifications and is rated for 1000 V safety category voltage.

What resolution and accuracy can I expect for DC voltage measurements?

DC voltage resolution is 50 mV with an accuracy of ±0.025% for precise readings.

How fine is the DC current measurement capability?

DC current resolution is 500 μA with an accuracy of ±0.05% for sensitive current monitoring.

What are the instrument's environmental operating limits?

It operates between −20 °C and 55 °C for typical field and workshop conditions.

Supplied with

It comes complete with test leads and alligator clips, so you're set up to tackle most applications.
