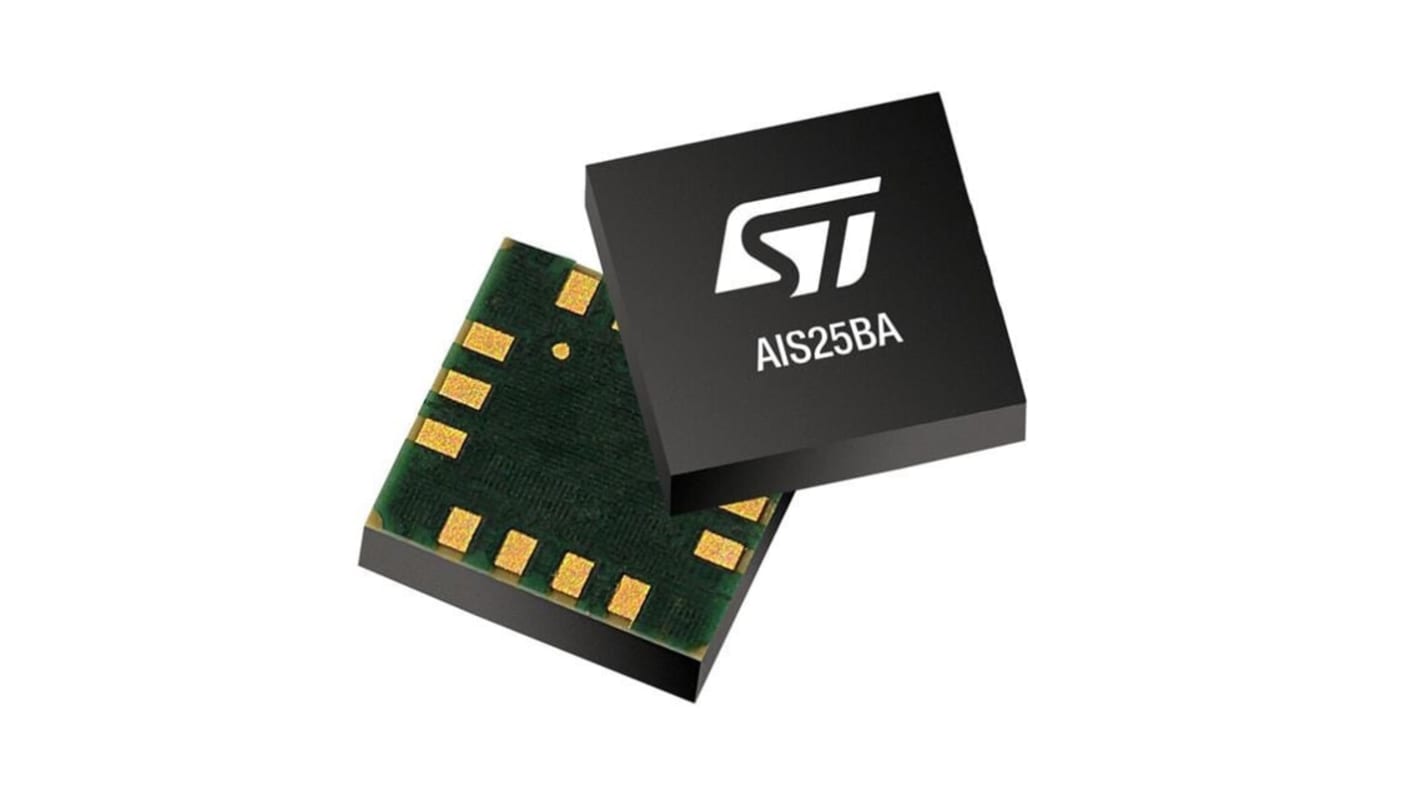

STMicroelectronics 3-Axis Surface Accelerometer 1.71 V 2.1 V, I2C, TDM, LGA-14L, 14-Pin
- N° de stock RS:
- 252-3647
- Référence fabricant:
- AIS25BATR
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Sous-total (1 bobine de 5000 unités)*
25 050,00 €
(TVA exclue)
30 300,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 07 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | la bobine* |
|---|---|---|
| 5000 - 5000 | 5,01 € | 25 050,00 € |
| 10000 - 10000 | 4,88 € | 24 400,00 € |
| 15000 + | 4,76 € | 23 800,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 252-3647
- Référence fabricant:
- AIS25BATR
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Product Type | Accelerometer | |
| Sensor Type | Accelerometer | |
| Number of Axis | 3 | |
| Technology | Digital | |
| Mount Type | Surface | |
| Interface Type | I2C, TDM | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 2.1V | |
| Package Type | LGA-14L | |
| Minimum Operating Temperature | -40°C | |
| Sensitivity | 0.12mg/LSB | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 125°C | |
| Series | AIS25BA | |
| Standards/Approvals | RoHS | |
| Height | 0.86mm | |
| Width | 2.5 mm | |
| Length | 2.5mm | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Product Type Accelerometer | ||
Sensor Type Accelerometer | ||
Number of Axis 3 | ||
Technology Digital | ||
Mount Type Surface | ||
Interface Type I2C, TDM | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 2.1V | ||
Package Type LGA-14L | ||
Minimum Operating Temperature -40°C | ||
Sensitivity 0.12mg/LSB | ||
Pin Count 14 | ||
Maximum Operating Temperature 125°C | ||
Series AIS25BA | ||
Standards/Approvals RoHS | ||
Height 0.86mm | ||
Width 2.5 mm | ||
Length 2.5mm | ||
Automotive Standard AEC-Q100 | ||
The STMicroelectronics MEMS digital output motion sensor: low noise, high bandwidth, 3-axis accelerometer with TDM interface is an ultralow noise, low latency, wide bandwidth, 3-axis digital accelerometer with a dedicated TDM interface designed to address automotive non-safety applications, in particular, wideband active noise control (ANC) and vibration monitoring. The AIS25BA has a user-selectable full-scale range of ±3.85/±7.7 g, a time-division multiplexing (TDM) interface for the sensor data, and an I²C interface for device configuration.
The AIS25BA is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +125 °C.
3-axis accelerometer with user-selectable full-scale is ±3.85/±7.7 g
Wide and flat frequency response is from dc up to 2.4 kHz (typ)
Low latency (entire reading chain) is 266 μs @ 2 kHz (typ)
Ultralow noise density (typ: 30 μg/√Hz for X and Y axes; 50 μg/√Hz for Z-axis)
TDM (8/16/24 kHz) slave interface for sensor data and I²C interface for configuration
Supply voltage is 1.71 V to 2.1 V
Extended temperature range from -40 °C to +125 °C
Embedded self-test
