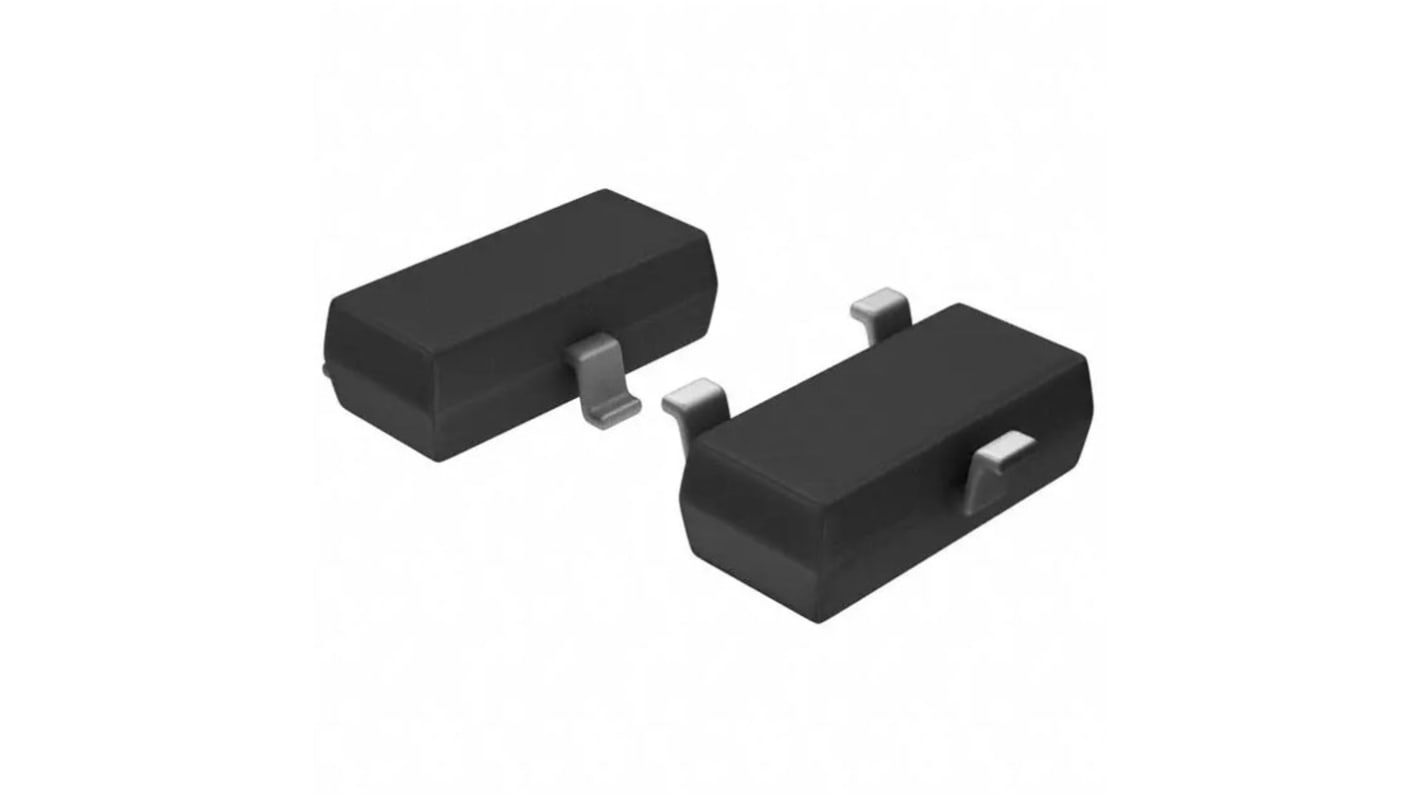

Honeywell Technologies Surface Hall Effect Sensor 3 V 26V, SOT-23, 3-Pin

Sous-total (1 bobine de 3000 unités)*

2 406,00 €

(TVA exclue)

2 910,00 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • Expédition à partir du 27 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
la bobine*
3000 +0,802 €2 406,00 €

*Prix donné à titre indicatif

N° de stock RS:
203-6325
Référence fabricant:
SS360NT
Fabricant:
Honeywell
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Honeywell

Sensor Type

Hall Effect

Product Type

Hall Effect Sensor

Technology

Digital

Mount Type

Surface

Magnetic Type

Latch

Minimum Supply Voltage

3V

Package Type

SOT-23

Maximum Supply Voltage

26V

Sensitivity

30Gauss

Minimum Operating Temperature

-40°C

Pin Count

3

Maximum Operating Temperature

150°C

Series

SS

Width

2.8mm

Standards/Approvals

RoHS-compliant

Length

2.9mm

Height

1.4mm

Automotive Standard

No

Supply Current

8mA

Pays d'origine :
CN

Honeywell Series SS Hall Effect Sensor, 3V Supply Voltage, 30 Gauss Sensitivity - SS360NT


This Hall effect sensor is a Compact digital magnetic switch designed for surface-mounted PCB integration. It operates across a wide supply range and responds to magnetic field presence with a latched digital output. The component is intended for applications requiring a low-power switching element that endures elevated ambient temperatures and conforms to environmental material restrictions.

Features and Benefits:


• Operates from 3V to 26V supply, enabling flexible system design
• Latch-type switching provides stable on/off magnetic state retention
• Low supply current of 8 mA reduces power draw in continuous use
• Withstands -40°C to 150°C environments for high-temperature resilience
• Surface-mount SOT-23 package simplifies automated PCB assembly

Applications


• Suitable for position sensing in Compact electronic assemblies
• Ideal for magnetic proximity detection in industrial controllers
• Used for contactless switching in consumer device designs
• Can be used for rotational speed sensing in small motors
• Used with low-power systems requiring small-footprint sensors

What pin configuration does it use for PCB layout?


It uses a three-pin arrangement in a SOT-23 surface-mount package suitable for standard land patterns.

How sensitive is the device to magnetic fields?


The switch responds at around 30 gauss sensitivity for actuation by a magnetic source.

What environmental restrictions apply to material use?


The component is RoHS-compliant, indicating it meets lead-free and restricted-substance requirements.

Is this component suitable for automotive qualification?


It is not designated as an automotive-standard device and should not be assumed to meet automotive qualification criteria.
