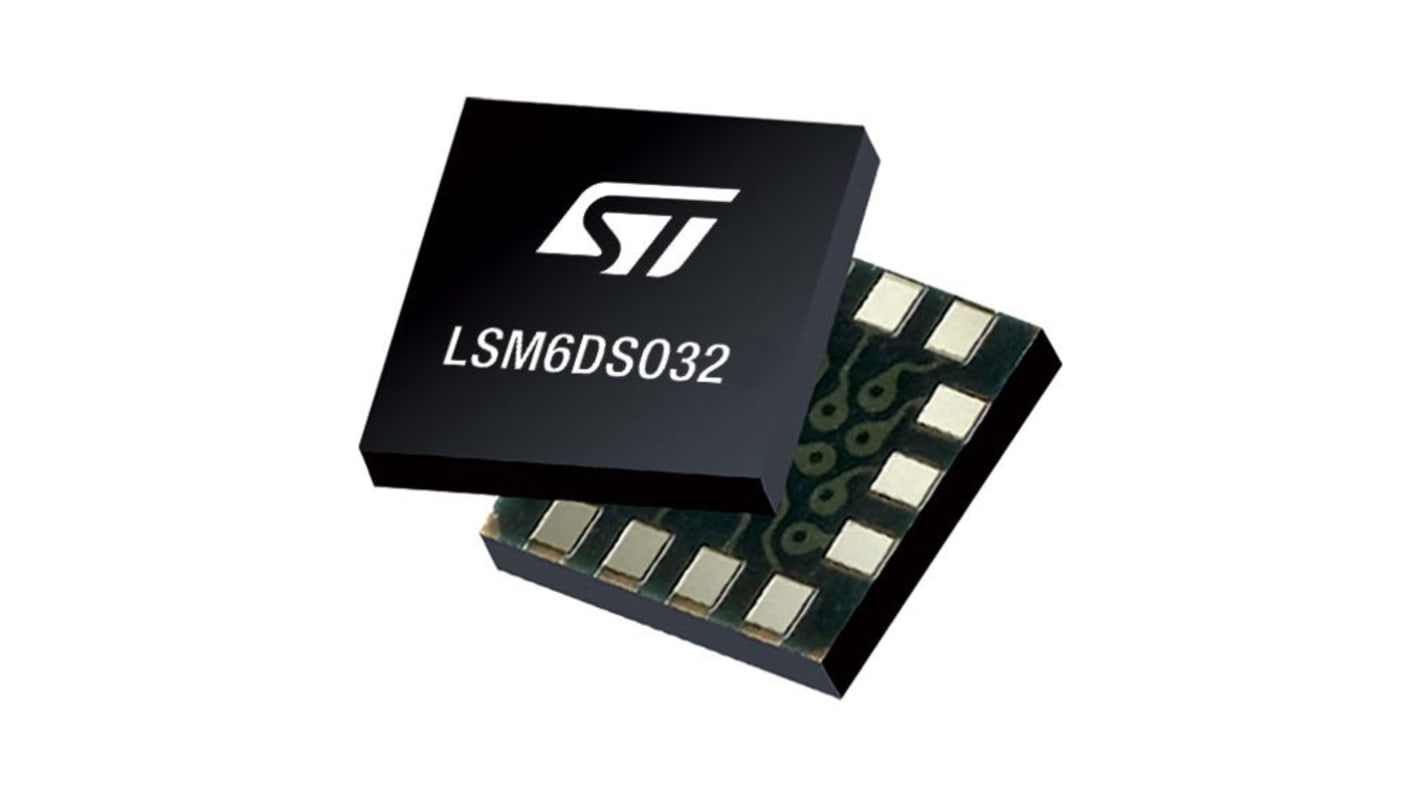

STMicroelectronics 6-Axis Surface Sensor 1.71 V 3.6 V, MIPI I3CSM, SPI, I2C, LGA-14L, 14-Pin
- N° de stock RS:
- 152-045
- Référence fabricant:
- LSM6DSO32TR
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Sous-total (1 ruban de 2 unités)*
6,41 €
(TVA exclue)
7,756 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 4 992 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le ruban* |
|---|---|---|
| 2 - 18 | 3,205 € | 6,41 € |
| 20 - 198 | 2,885 € | 5,77 € |
| 200 - 998 | 2,665 € | 5,33 € |
| 1000 - 1998 | 2,46 € | 4,92 € |
| 2000 + | 2,275 € | 4,55 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 152-045
- Référence fabricant:
- LSM6DSO32TR
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Product Type | Sensor | |
| Sensor Type | Accelerometer, Gyroscope | |
| Number of Axis | 6 | |
| Technology | Inertial Sensor | |
| Mount Type | Surface | |
| Interface Type | MIPI I3CSM, SPI, I2C | |
| Maximum Frequency Response | 1.6kHz | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA-14L | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 14 | |
| Height | 0.83mm | |
| Standards/Approvals | RoHS | |
| Length | 2.5mm | |
| Width | 3 mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Product Type Sensor | ||
Sensor Type Accelerometer, Gyroscope | ||
Number of Axis 6 | ||
Technology Inertial Sensor | ||
Mount Type Surface | ||
Interface Type MIPI I3CSM, SPI, I2C | ||
Maximum Frequency Response 1.6kHz | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA-14L | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Pin Count 14 | ||
Height 0.83mm | ||
Standards/Approvals RoHS | ||
Length 2.5mm | ||
Width 3 mm | ||
Automotive Standard No | ||
- Pays d'origine :
- PH
The STMicroelectronics system-in-package featuring a 3D digital accelerometer and 3D digital gyroscope boosting power performance to 0.55 mA in high-performance mode and enabling always-on low-power features for an optimal motion experience for the consumer.
Programmable finite state machine as accelerometer and gyroscope
Embedded temperature sensor
Significant Motion Detection
ECOPACK and RoHS compliant
Green compliant
