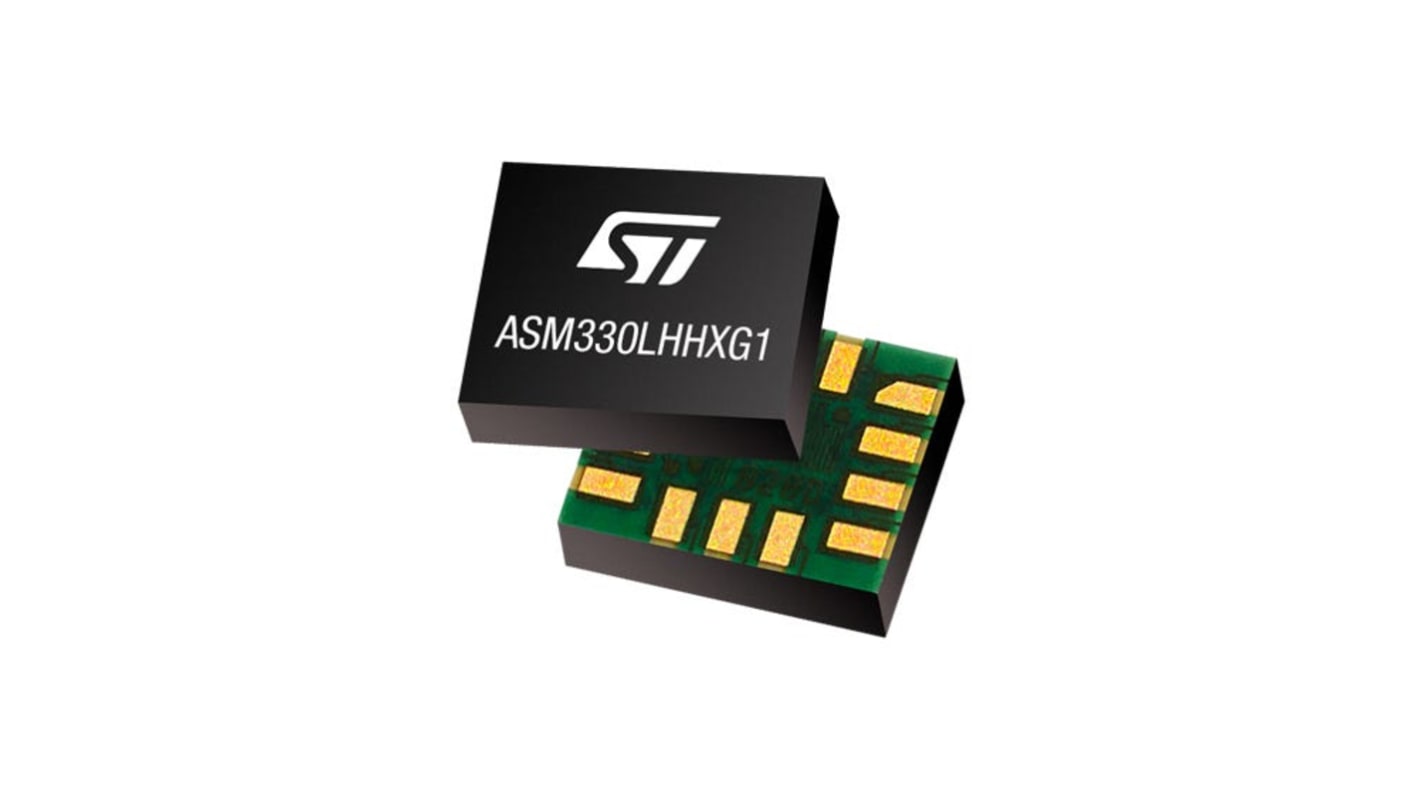

STMicroelectronics 6 Axis Surface Sensor 1.71 V 3.6V, LGA-14L, 14-Pin
- N° de stock RS:
- 151-673
- Référence fabricant:
- ASM330LHHXG1TR
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 ruban de 1 unité)*
9,36 €
(TVA exclue)
11,33 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 4 901 unité(s) expédiée(s) à partir du 27 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Ruban(s) | le ruban |
|---|---|
| 1 - 4 | 9,36 € |
| 5 - 9 | 8,47 € |
| 10 - 24 | 8,27 € |
| 25 - 49 | 8,17 € |
| 50 + | 8,08 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 151-673
- Référence fabricant:
- ASM330LHHXG1TR
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Product Type | Sensor | |
| Sensor Type | Gyroscope, Accelerometer | |
| Number of Axis | 6 | |
| Technology | Inertial Sensor | |
| Mount Type | Surface | |
| Maximum Frequency Response | 1.6kHz | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 3.6V | |
| Package Type | LGA-14L | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 14 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Width | 3mm | |
| Series | ASM330LHHXG1 | |
| Length | 2.5mm | |
| Height | 0.83mm | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Product Type Sensor | ||
Sensor Type Gyroscope, Accelerometer | ||
Number of Axis 6 | ||
Technology Inertial Sensor | ||
Mount Type Surface | ||
Maximum Frequency Response 1.6kHz | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 3.6V | ||
Package Type LGA-14L | ||
Minimum Operating Temperature -40°C | ||
Pin Count 14 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Width 3mm | ||
Series ASM330LHHXG1 | ||
Length 2.5mm | ||
Height 0.83mm | ||
Automotive Standard AEC-Q100 | ||
The STMicroelectronics IMU offers ASIL B compliance if used in conjunction with a certified software library and features a 3 Axis digital accelerometer and a 3 Axis digital gyroscope with an extended temperature range up to +125°C.
Programmable finite state machine
Machine learning core
Smart programmable interrupts
Embedded 3 KB FIFO available to underload host processor
ECOPACK and RoHS compliant
