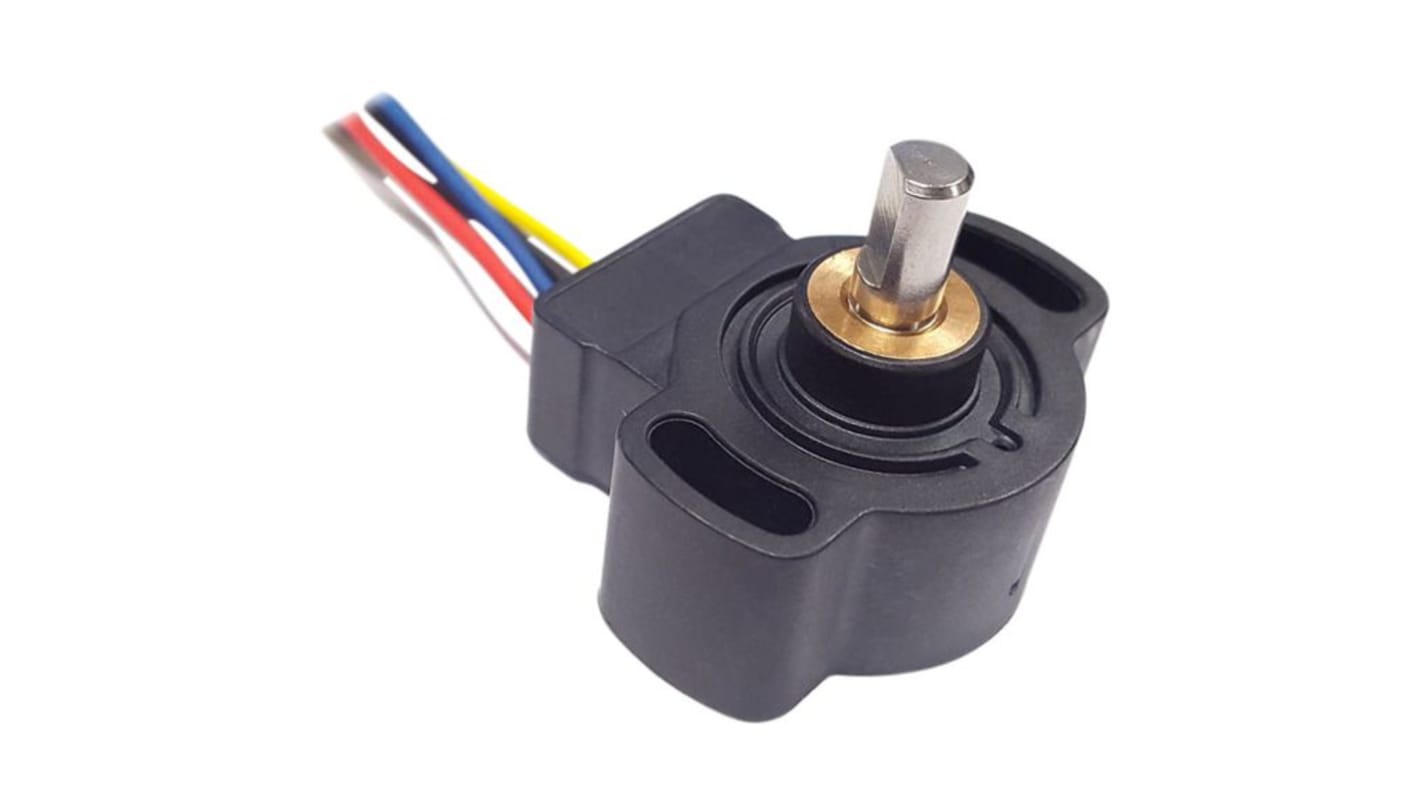

Piher-Amphenol PSC-360 Series Hall Effect Position Sensor 15V, Analogue Signal, 6 mm Shaft
- N° de stock RS:
- 288-3544
- Numéro d'article Distrelec:
- 302-75-086
- Référence fabricant:
- PSC360G2-F-1A-C0000-ERA360-REK
- Fabricant:
- Piher-Amphenol
Sous-total (1 unité)*
63,04 €
(TVA exclue)
76,28 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Dernier stock RS
- 24 dernière(s) unité(s), prête(s) à l'envoi
Unité | Prix par unité |
|---|---|
| 1 + | 63,04 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 288-3544
- Numéro d'article Distrelec:
- 302-75-086
- Référence fabricant:
- PSC360G2-F-1A-C0000-ERA360-REK
- Fabricant:
- Piher-Amphenol
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Piher-Amphenol | |
| Product Type | Position Sensor | |
| Encoder Technology | Hall Effect | |
| Series | PSC-360 | |
| Output Signal Type | Analogue | |
| Shaft Diameter | 6mm | |
| Interface Type | Analogue | |
| Terminal Type | Wire | |
| Maximum Supply Voltage | 15V | |
| Minimum Operating Temperature | -40°C | |
| Overall Depth | 31mm | |
| Overall Width | 41mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 51mm | |
| Maximum Operating Temperature | 125°C | |
| Mount Type | Chassis | |
| Sélectionner tout | ||
|---|---|---|
Marque Piher-Amphenol | ||
Product Type Position Sensor | ||
Encoder Technology Hall Effect | ||
Series PSC-360 | ||
Output Signal Type Analogue | ||
Shaft Diameter 6mm | ||
Interface Type Analogue | ||
Terminal Type Wire | ||
Maximum Supply Voltage 15V | ||
Minimum Operating Temperature -40°C | ||
Overall Depth 31mm | ||
Overall Width 41mm | ||
Standards/Approvals RoHS | ||
Overall Height 51mm | ||
Maximum Operating Temperature 125°C | ||
Mount Type Chassis | ||
- Pays d'origine :
- ES
The high-performance rotary position sensor designed for use in harsh environments. This non-contacting sensor utilizes Hall-effect technology to provide accurate and reliable position sensing without any gears or mechanical interfaces. It features a programmable angular range between 15 and 360 degrees, allowing for flexible customization. Its adaptable nature allows for programmable transfer function and switch outputs, as well as different output protocols and redundancy levels.
True contactless operation for reliable and accurate position sensing
Sealed and flange-mounted design for easy positioning and installation
Non-contacting design with no gears or mechanical interfaces, resulting in minimal wear and tear over a long product lifetime
Highly customizable with programmable angular range and support for low and high-voltage power supply
Robust construction to withstand harsh environments, including dust, moisture, vibration, and extreme temperatures
Flexible output options including analog and PWM, with the ability to configure switch output
Suitable for a wide range of applications such as industrial robotics, automation feedback, valve monitoring, and conveyor operation
