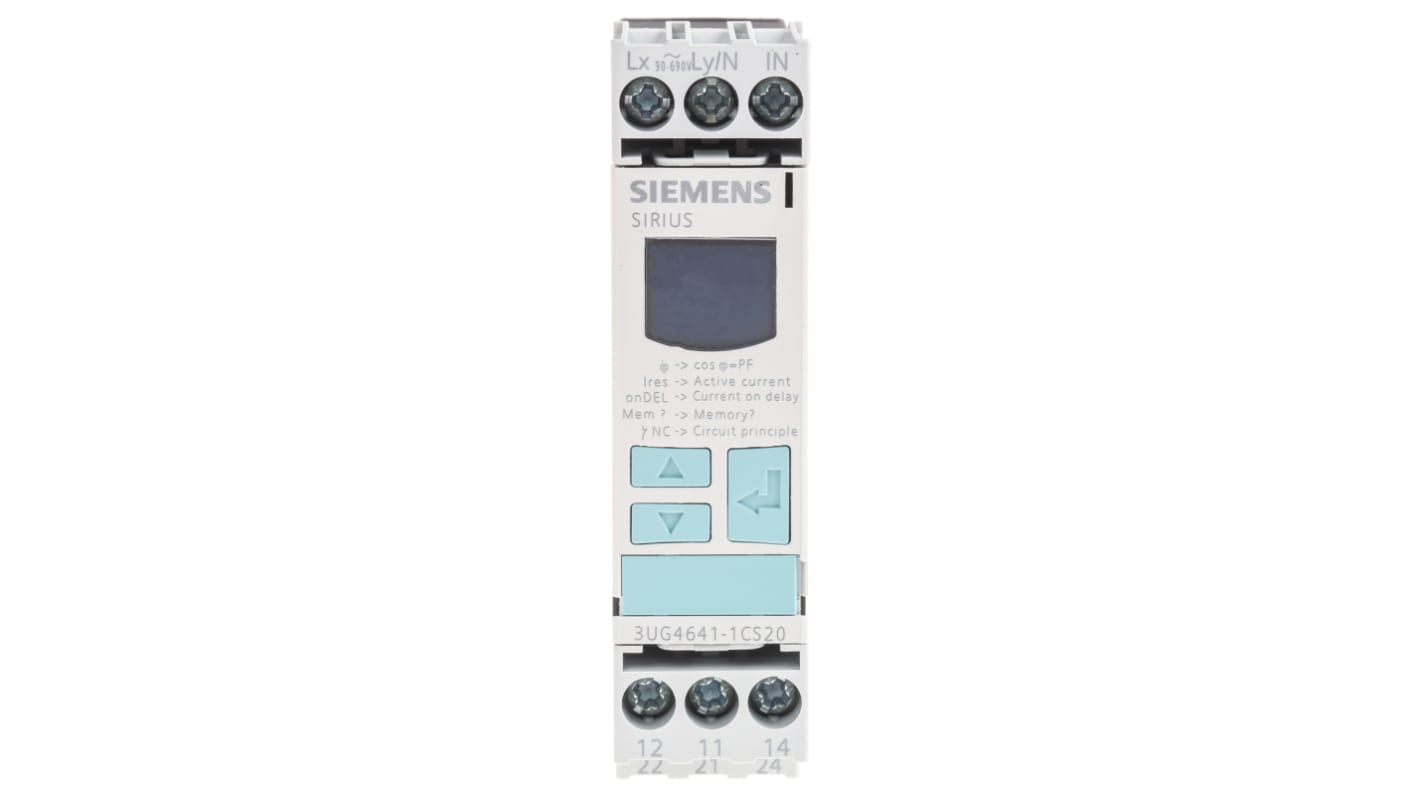

Siemens Monitoring Relay, 1 Phase, DPDT, DIN Rail, 0.2A to 10A, 275 V dc, 275V ac
- N° de stock RS:
- 758-6955
- Référence fabricant:
- 3UG4641-1CS20
- Fabricant:
- Siemens
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
642,11 €
(TVA exclue)
776,95 €
(TVA incluse)
- N° de stock RS:
- 758-6955
- Référence fabricant:
- 3UG4641-1CS20
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1 | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Minimum Current Sensed | 0.2A | |
| Maximum Current Sensed | 10A | |
| Power Consumption | 2W | |
| Switching Voltage | 275V | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Supply AC Voltage | 275V ac | |
| Supply DC Voltage | 275 V dc | |
| Minimum Operating Temperature | +60°C | |
| Maximum Operating Temperature | 60°C | |
| Series | 3UG4 | |
| Standards/Approvals | RoHS | |
| Length | 91mm | |
| Height | 102mm | |
| Width | 22.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Monitoring Relay | ||
Electrical Phase 1 | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Minimum Current Sensed 0.2A | ||
Maximum Current Sensed 10A | ||
Power Consumption 2W | ||
Switching Voltage 275V | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Supply AC Voltage 275V ac | ||
Supply DC Voltage 275 V dc | ||
Minimum Operating Temperature +60°C | ||
Maximum Operating Temperature 60°C | ||
Series 3UG4 | ||
Standards/Approvals RoHS | ||
Length 91mm | ||
Height 102mm | ||
Width 22.5mm | ||
- Pays d'origine :
- DE
Single Phase Current Monitoring Relay
Current monitoring relays to monitor single phase AC currents and DC currents against the set threshold value for undershoot and overshoot.;A current monitoring relay can differ with their measuring ranges and supply voltage types.
Features and Benefits
Real effective value measurement
Applicable for frequencies with 40-500Hz AC and DC
All devices can be digitally set and have an LCD display, a fault memory can be switched on
Simultaneous monitoring of overcurrent and undercurrent over the complete measuring range
Supply voltage 24-240Vac/dc
Starting by-pass time 0.1 -20 secs.
Off delay 0.1 - 20 secs.
Contacts 1 C/O
Product Application Information
Overcurrent and undercurrent monitoring;Monitoring the functionality of electrical loads;Open-circuit monitoring;Threshold switch for analog signals from 4 mA to 20 mA
