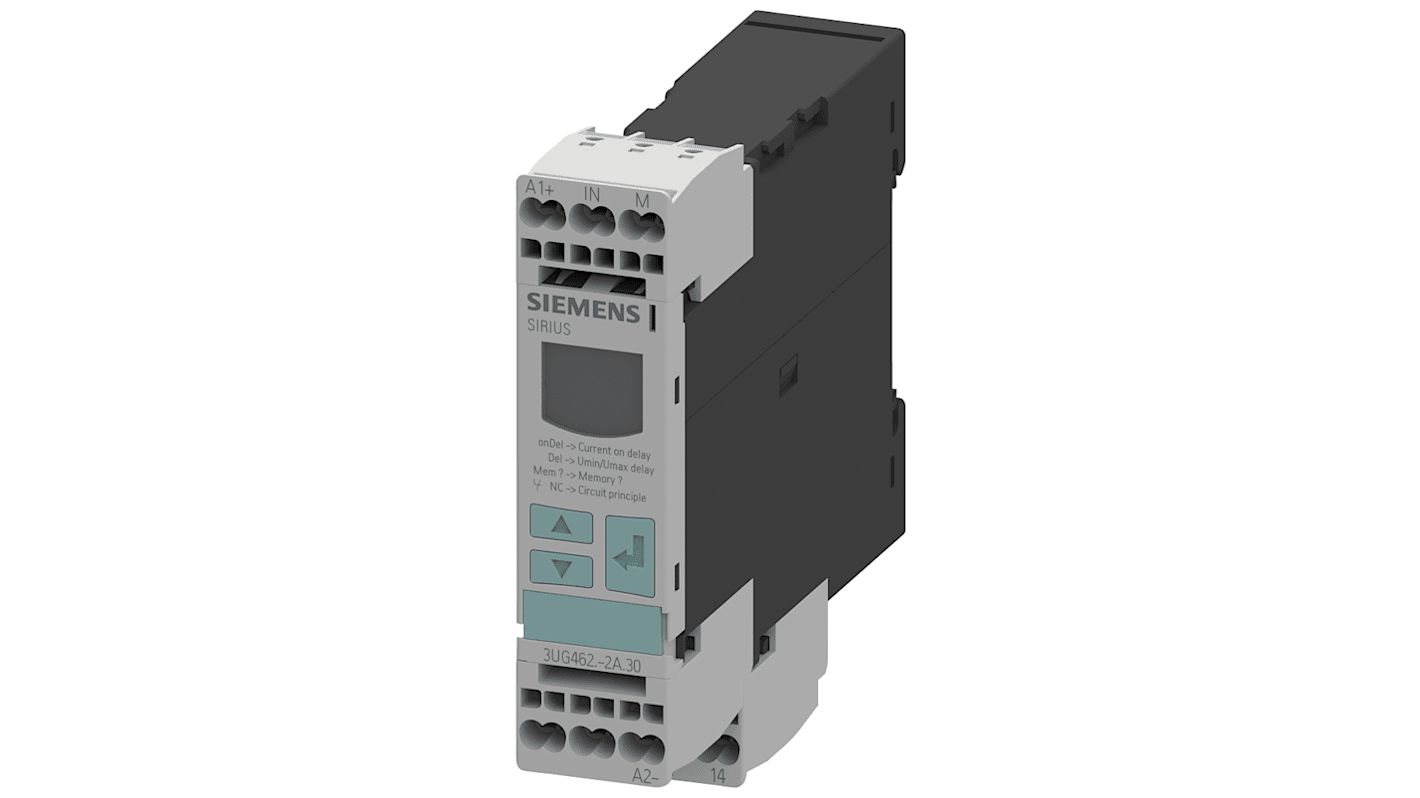

Siemens Monitoring Relay, 1 Phase, SPDT, DIN Rail, 50mA to 15A, 275 V dc, 275V ac

N° de stock RS:: 758-6930
Numéro d'article Distrelec:: 300-50-550
Référence fabricant:: 3UG4622-2AW30
Fabricant:: Siemens

Siemens Monitoring Relay, 1 Phase, SPDT, DIN Rail, 50mA to 15A, 275 V dc, 275V ac

Actuellement indisponible

Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.

Produit de remplacement

Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:

Siemens Relay, 1 Phase, 24 to 240 V AC/DC Monitor Range, 2 CO, Screw, Snap-On, 240V ac 24 to 240 V DC

N° de stock RS: 768-479

la pièce

568,42 €

(TVA exclue)

687,79 €

(TVA incluse)

N° de stock RS:: 758-6930
Numéro d'article Distrelec:: 300-50-550
Référence fabricant:: 3UG4622-2AW30
Fabricant:: Siemens

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Siemens
	Product Type	Monitoring Relay
	Electrical Phase	1
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Minimum Current Sensed	50mA
	Switching Voltage	275V
	Maximum Current Sensed	15A
	Power Consumption	2W
	Current Sensitivity	Undercurrent, Overcurrent
	Terminal Type	Screw
	Time Delay	0.1 to 20 s
	IP Rating	IP20
	Minimum Operating Temperature	+60°C
	Supply AC Voltage	275V ac
	Relay Contact Current	3A
	Supply DC Voltage	275 V dc
	Maximum Operating Temperature	60°C
	Height	96mm
	Standards/Approvals	CCC, CE, EAC, UL
	Width	22.5mm
	Length	91mm
	Series	3UG4

	Sélectionner tout
	Marque Siemens
	Product Type Monitoring Relay
	Electrical Phase 1
	Contact Configuration SPDT
	Mount Type DIN Rail
	Minimum Current Sensed 50mA
	Switching Voltage 275V
	Maximum Current Sensed 15A
	Power Consumption 2W
	Current Sensitivity Undercurrent, Overcurrent
	Terminal Type Screw
	Time Delay 0.1 to 20 s
	IP Rating IP20
	Minimum Operating Temperature +60°C
	Supply AC Voltage 275V ac
	Relay Contact Current 3A
	Supply DC Voltage 275 V dc
	Maximum Operating Temperature 60°C
	Height 96mm
	Standards/Approvals CCC, CE, EAC, UL
	Width 22.5mm
	Length 91mm
	Series 3UG4

Se connecter pour voir les modèles CAO

Pays d'origine :: DE

Siemens 3UG4 Series Monitoring Relay, SPDT Contact Configuration, Current Monitoring Application - 3UG4622-2AW30

This monitoring relay is intended for precise monitoring of current in various industrial applications. It features functionalities for overcurrent and undercurrent detection, ensuring protection and optimal operational efficiency. Its compact design allows for easy integration into DIN rail systems, making it a suitable solution for automation and management of electrical systems.

Features & Benefits

• Monitors currents from 50 mA to 15 A for versatile applications

• Adjustable response time from 0.1 to 20 seconds for customised sensitivity

• Offers both overcurrent and undercurrent detection for comprehensive protection

• Equipped with a digital display for monitoring in real-time

• Features screw terminals for secure electrical connections

• Compact dimensions enable efficient space utilisation in control panels

Applications

• Utilised in industrial automation for monitoring electrical circuits

• Suitable for that require precise current regulation

• Supports integration with machinery to enhance operational safety

• Employed in electrical panels for real-time current feedback

What types of currents can be monitored with this device?

It can monitor both AC and DC currents in the range of 50 mA to 15 A.

How does the device handle power interruptions?

It features a minimum buffering time of 10 ms to maintain functionality during outages.

Is it easy to install in existing setups?

Yes, it is designed for snap-on mounting on DIN rails, ensuring straightforward installation.

Can the display be adjusted for better visibility?

The LCD display provides clear readings that do not require adjustments for visibility.

What kind of protection does it offer for electric circuits?

The product detects both overcurrent and undercurrent, providing thorough circuit protection.
