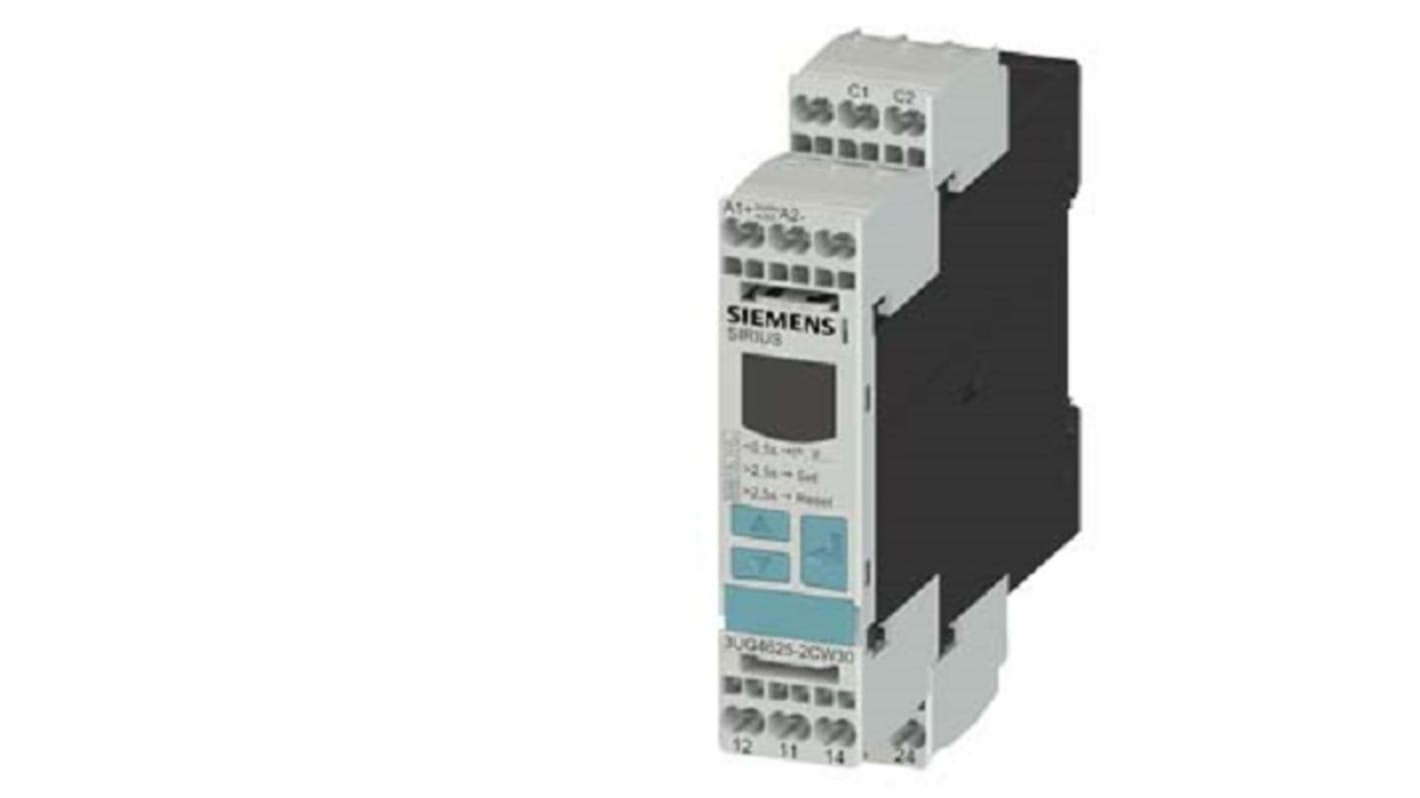

Siemens Monitoring Relay, 3 Phase, DPDT, 24 V dc, 24V ac

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.
N° de stock RS:
256-5432
Référence fabricant:
3UG46252CW30
Fabricant:
Siemens
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Siemens

Product Type

Monitoring Relay

Electrical Phase

3

Contact Configuration

DPDT

IP Rating

IP20

Supply DC Voltage

24 V dc

Supply AC Voltage

24V ac

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Series

3UG4

Pays d'origine :
DE
The Siemens Digital monitoring relay for residual current monitoring (with current transformer 3UL23), setting range 0.03 to 40 and a separate for warning threshold and switch-off value supply voltage 24 to 240 V AC/DC at 50 to 60 Hz ON delay and tripping delay 0.1 to 20 seconds, shutdown hysteresis up to 50 percent, warning hysteresis 5 percent fixed and has 2 change-over contacts with or without fault buffer spring-type connection system.

Degree of pollution 3

AC current for monitoring

Design of the display LCD

Height 103 mm

Width 22.5 mm

Depth 91 mm
