Références fabricant

Omron Monitoring Relay, 1 Phase, SPST, DIN Rail, 26.4V ac 20.4 → 26.4 V dc

N° de stock RS:: 111-3118
Référence fabricant:: K8DT-VW2TD
Fabricant:: Omron

Omron Monitoring Relay, 1 Phase, SPST, DIN Rail, 26.4V ac 20.4 → 26.4 V dc

Sous-total (1 unité)*

141,80 €

(TVA exclue)

171,58 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

Temporairement en rupture de stock

Expédition à partir du 10 novembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	141,80 €

*Prix donné à titre indicatif

N° de stock RS:: 111-3118
Référence fabricant:: K8DT-VW2TD
Fabricant:: Omron

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Product Type	Monitoring Relay
	Electrical Phase	1
	Function	Overvoltage, Undervoltage
	Contact Configuration	SPST
	Mount Type	DIN Rail
	Power Consumption	1.8VA
	Terminal Type	Push-in
	IP Rating	IP20
	Supply AC Voltage	26.4V ac
	Supply DC Voltage	20.4 → 26.4 V dc
	Contact Current	10A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Width	17.5mm
	Series	K8DT-VW
	Standards/Approvals	RoHS, EN 60947-5-1, UL 60947-5-1
	Height	90mm
	Length	90mm

	Sélectionner tout
	Marque Omron
	Product Type Monitoring Relay
	Electrical Phase 1
	Function Overvoltage, Undervoltage
	Contact Configuration SPST
	Mount Type DIN Rail
	Power Consumption 1.8VA
	Terminal Type Push-in
	IP Rating IP20
	Supply AC Voltage 26.4V ac
	Supply DC Voltage 20.4 → 26.4 V dc
	Contact Current 10A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Width 17.5mm
	Series K8DT-VW
	Standards/Approvals RoHS, EN 60947-5-1, UL 60947-5-1
	Height 90mm
	Length 90mm

Se connecter pour voir les modèles CAO

Pays d'origine :: CN

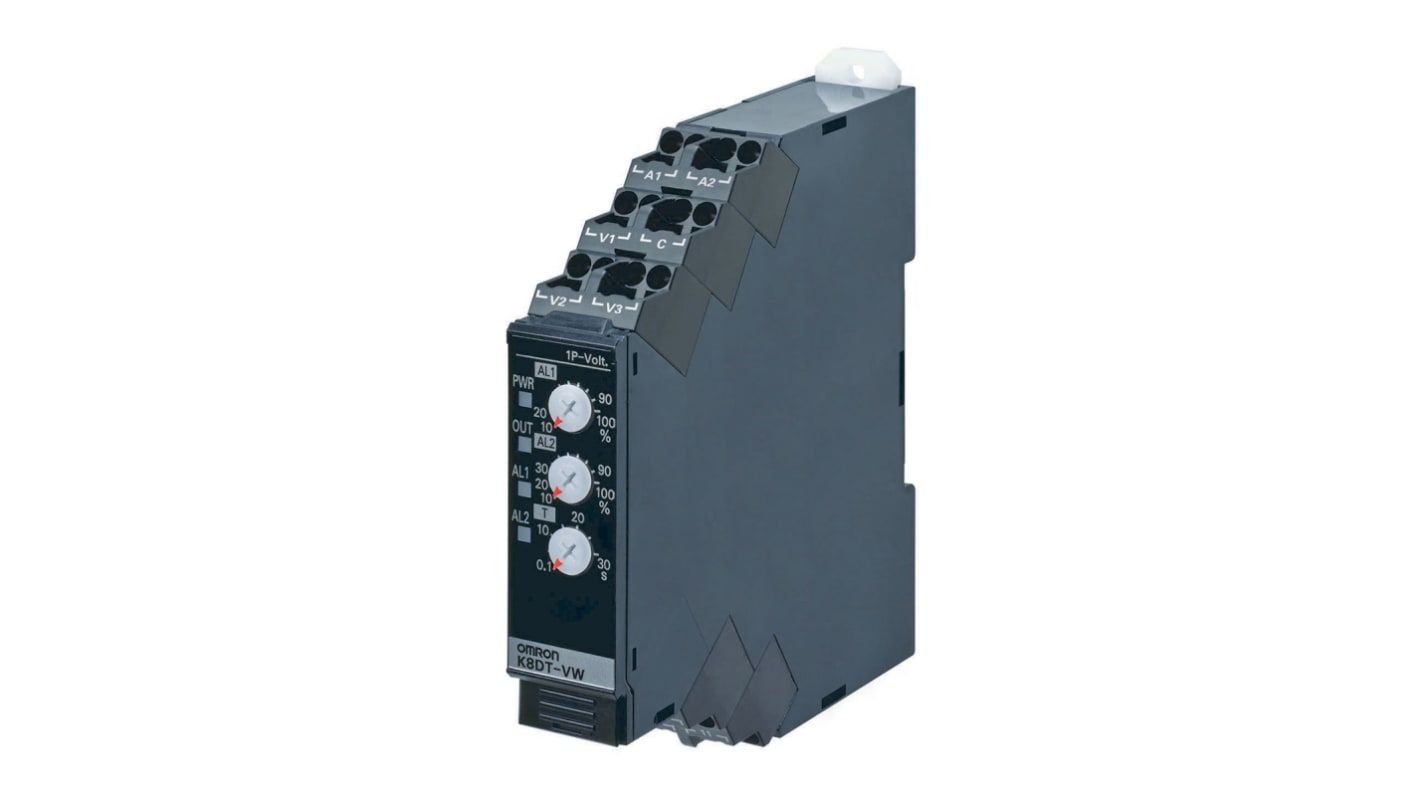

Omron K8DT-VW Series Monitoring Relay, 20.4-26.4V Supply Voltage, 10A Contact Current - K8DT-VW2TD

This monitoring relay provides protective voltage supervision for single-phase systems, detecting both excessive and insufficient supply levels to maintain safe operation in industrial control panels. Designed for DIN-rail mounting in automation and electrical assemblies, it monitors supply voltage and actuates a single-pole switching output to isolate loads when thresholds are breached.

Features and Benefits:

• Operates from 20.4 to 26.4 VDC/AC ensuring a tight supply window
• Single-pole switching contact rated to 10 A for load control
• Push-in terminals reduce wiring time and improve connection security
• Low power draw of 1.8 VA minimises auxiliary load on supplies
• Wide ambient range from -20 to 60 °C supports varied plant conditions
• IP20 protection allows use in enclosed control cabinets

Applications

• Suitable for protecting control circuits in PLC installations
• Ideal for guarding DC motor drives against voltage excursions
• Used for monitoring auxiliary supplies in switchgear panels
• Can be used for undervoltage/overvoltage protection in OEM cabinets

How is the unit mounted within a control cabinet?

It clips onto a standard DIN rail enabling quick installation and straightforward panel integration.

What Terminal type is provided for field wiring?

The device uses push-in terminals that permit tool-free conductor insertion and secure retention.

What electrical standards does it meet for industrial use?

It conforms to RoHS and the EN 60947-5-1 and UL 60947-5-1 standards applicable to control circuit switching devices.

How does the relay’s contact arrangement affect system design?

A single SPST contact provides simple make/break switching suitable for interrupting single-phase control or load circuits at up to 10 A.

Where should the unit be located relative to environmental exposure?

With an IP20 enclosure rating, it should be installed inside cabinets or enclosures that prevent direct ingress of dust and liquids.

Standards

EN60947-5-1, UL 60947-5-1, IP 20 Terminals
