Références fabricant

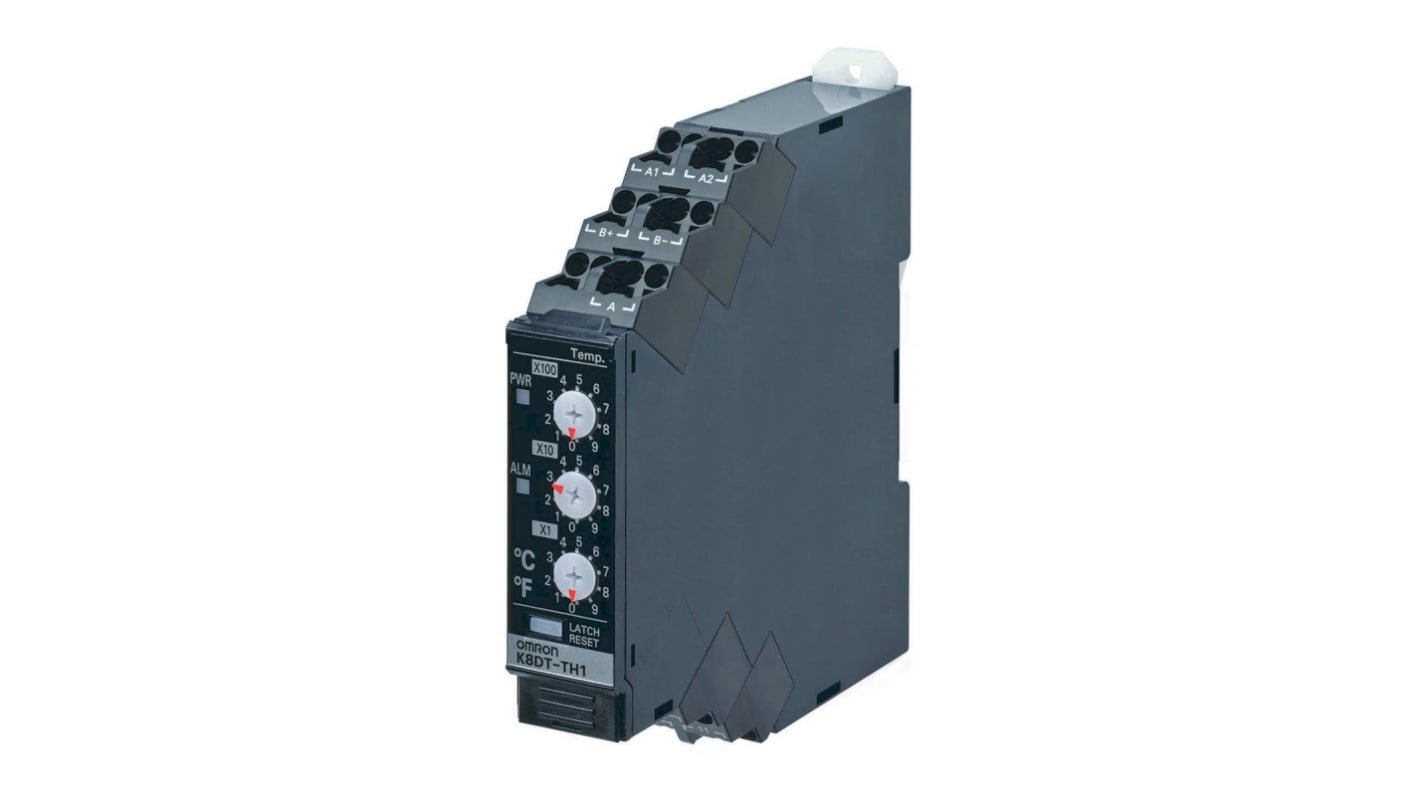

Omron Monitoring Relay, SPST, DIN Rail, Monitoring: 0 °C to 999 °C, 20.4 → 26.4 V dc 26.4V ac

N° de stock RS:: 111-3130
Référence fabricant:: K8DT-TH1TD
Fabricant:: Omron

Omron Monitoring Relay, SPST, DIN Rail, Monitoring: 0 °C to 999 °C, 20.4 → 26.4 V dc 26.4V ac

Sous-total (1 unité)*

165,74 €

(TVA exclue)

200,55 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

Plus 4 unité(s) expédiée(s) à partir du 14 septembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	165,74 €

*Prix donné à titre indicatif

N° de stock RS:: 111-3130
Référence fabricant:: K8DT-TH1TD
Fabricant:: Omron

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Omron
	Application	Temperature
	Product Type	Monitoring Relay
	Sub Type	Thermocouple
	Function	On or Off Control, Temperature
	Contact Configuration	SPST
	Mount Type	DIN Rail
	Terminal Type	Push-in
	IP Rating	IP20
	Supply AC Voltage	26.4V ac
	Maximum Temperature Monitoring	999°C
	Minimum Operating Temperature	-20°C
	Contact Current	10A
	Minimum Temperature Monitoring	0°C
	Supply DC Voltage	20.4 → 26.4 V dc
	Maximum Operating Temperature	60°C
	Length	90mm
	Standards/Approvals	EN 61326-1, RoHS, UL 61010-1, EN 61010-1
	Series	K8DT-TH
	Height	90mm

	Sélectionner tout
	Marque Omron
	Application Temperature
	Product Type Monitoring Relay
	Sub Type Thermocouple
	Function On or Off Control, Temperature
	Contact Configuration SPST
	Mount Type DIN Rail
	Terminal Type Push-in
	IP Rating IP20
	Supply AC Voltage 26.4V ac
	Maximum Temperature Monitoring 999°C
	Minimum Operating Temperature -20°C
	Contact Current 10A
	Minimum Temperature Monitoring 0°C
	Supply DC Voltage 20.4 → 26.4 V dc
	Maximum Operating Temperature 60°C
	Length 90mm
	Standards/Approvals EN 61326-1, RoHS, UL 61010-1, EN 61010-1
	Series K8DT-TH
	Height 90mm

English Datasheet

Se connecter pour voir les modèles CAO

Pays d'origine :: CN

Omron K8DT-TH Series Monitoring Relay, 20.4-26.4V Supply Voltage, 0-999°C Temperature Range - K8DT-TH1TD

This monitoring relay provides thermocouple-based temperature supervision for industrial control systems, offering on/off temperature control within a Compact DIN-rail mount package. It is intended for electrical and automation panels where temperature thresholds must be detected and switched, supporting both DC and AC supply options at nominal 24 V.

Features and Benefits:

• SPST contact rated 10 A for direct load switching and simple control
• Thermocouple input covering 0-999 °C for wide-range temperature detection
• Push-in terminals for fast wiring and reduced installation time
• Accepts 20.4-26.4V DC/AC supply for flexible power arrangements
• IP20 protection enabling use inside enclosed control cabinets

Applications

• Suitable for monitoring heating elements in production equipment
• Ideal for temperature alarm signalling in electrical panels
• Used for on/off control of fans and cooling systems in enclosures
• Can be used for safety interlocks where thermocouple feedback is required

What ambient temperatures can it tolerate in operation?

It will operate reliably between -20 °C and 60 °C, accommodating typical indoor industrial environments.

How is it mounted within control equipment?

It clips onto a standard DIN rail for secure and repeatable installation.

What approvals support its use in regulated installations?

It carries EN 61326-1, EN 61010-1, UL 61010-1 and RoHS conformity for relevant electrical and emissions standards.

How large is the unit for panel layout planning?

The relay occupies a slim 17.5mm width and has a 90mm height and 90mm depth for space calculations.

Standards

EN61010-1, EN 61326-1, UL 61010-1 IP 20 Terminals
