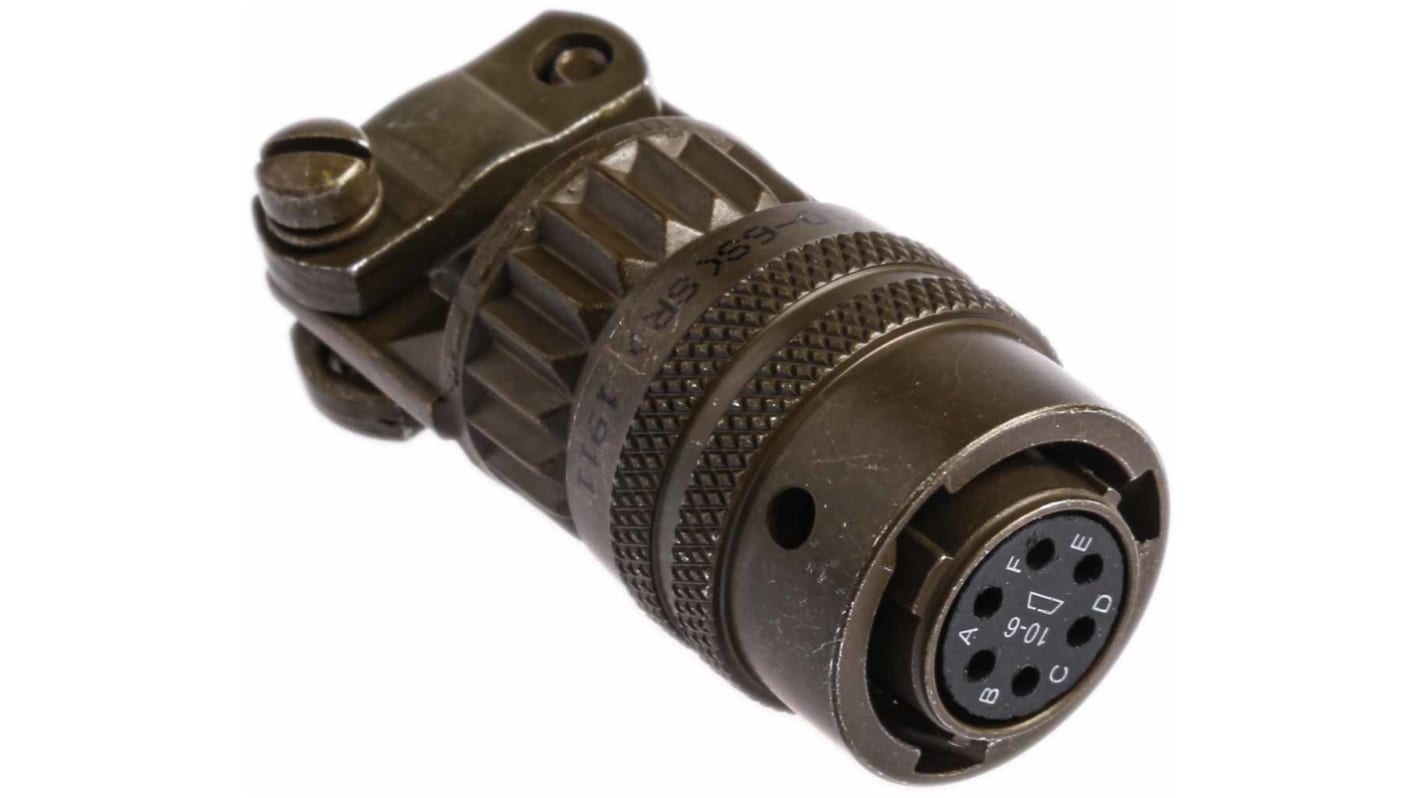

    Amphenol, PT 6 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 10, Bayonet, MIL-DTL-26482

    N° de stock RS:
    872-1519
    Référence fabricant:
    PT06A-10-6S(SR)
    Fabricant:
    Amphenol Socapex
    Amphenol Socapex
    Voir la catégorie
    21 En stock, livraison sous 1 jour(s) (stock Europe)
    242 En stock, livraison sous 3 à 5 jours (stock Europe)
    Add to Basket
    Unité

    Ajouté

    Prix Each

    38,03 €

    (TVA exclue)

    46,02 €

    (TVA incluse)

    UnitéPrix par unité
    1 +38,03 €
    N° de stock RS:
    872-1519
    Référence fabricant:
    PT06A-10-6S(SR)
    Fabricant:
    Amphenol Socapex

    Non conforme

    Pays d'origine :
    CN

    Documentation technique


    Législations et de normes

    Non conforme

    Pays d'origine :
    CN

    Détails du produit

    Amphenol PT Series Connectors


    The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.


    PT Solder is UL Approved Under File #E115497
    Aluminum Shell Components For The Series
    5 Key/ Keyway Polarisation With Bayonet Lock Coupling
    Wide Range of Shell Sizes (8 Through 24)



    Amphenol PT Series Connectors


    Spécifications

    AttributValeur
    Number of Contacts6
    GenderMale
    Contact GenderFemale
    Voltage Rating1 kV ac
    Shell Size10
    Mounting TypeCable Mount
    Military StandardMIL-DTL-26482
    Termination MethodSolder
    Mating TypeBayonet
    Connector SizeMiniature
    Body OrientationStraight
    SeriesPT
    Housing MaterialAluminium
    Strain ReliefYes
    Minimum Operating Temperature-55°C
    Contact MaterialCopper Alloy
    Maximum Operating Temperature+125°C
    Shell PlatingCadmium
    ColourGreen
    Contact PlatingGold
