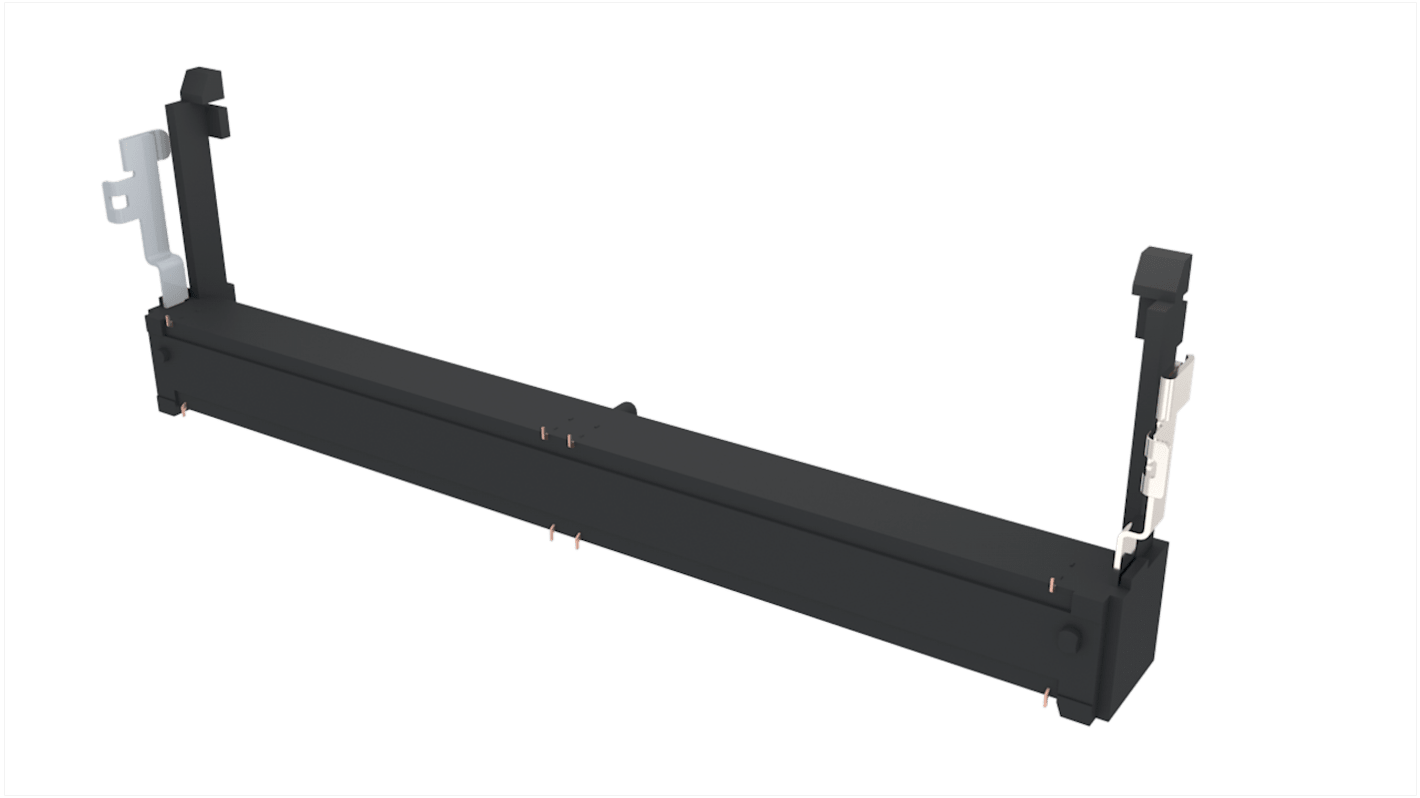

Amphenol Communications Solutions 0.5 mm Pitch 262 Way, Right Angle Surface Mount DDR5 DIMM Socket ,250V ac, 500mA
- N° de stock RS:
- 263-3684
- Référence fabricant:
- 10157591-002RHLF
- Fabricant:
- Amphenol Communications Solutions
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 263-3684
- Référence fabricant:
- 10157591-002RHLF
- Fabricant:
- Amphenol Communications Solutions
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Communications Solutions | |
| Product Type | DIMM Socket | |
| Memory Socket Type | DIMM | |
| Insertion/Removal Method | Latched | |
| Orientation | Right Angle | |
| Current | 500mA | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Number of Contacts | 262 | |
| Pitch | 0.5mm | |
| Mount Type | Surface | |
| Housing Material | Liquid Crystal Polymer | |
| SDRAM Type | DDR5 | |
| Latching | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Maximum Contact Resistance | 1mΩ | |
| Series | 10157591 | |
| Voltage | 250V ac | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Communications Solutions | ||
Product Type DIMM Socket | ||
Memory Socket Type DIMM | ||
Insertion/Removal Method Latched | ||
Orientation Right Angle | ||
Current 500mA | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Number of Contacts 262 | ||
Pitch 0.5mm | ||
Mount Type Surface | ||
Housing Material Liquid Crystal Polymer | ||
SDRAM Type DDR5 | ||
Latching Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Maximum Contact Resistance 1mΩ | ||
Series 10157591 | ||
Voltage 250V ac | ||
- Pays d'origine :
- CN
The Amphenol DDR5 SO-DIMM connectors deliver high speed and bandwidth. Being half the size of regular DIMMs, it consume lower power and promote better thermal management.
Withstands high temperature IR flow
LCP, halogen free, housing material
