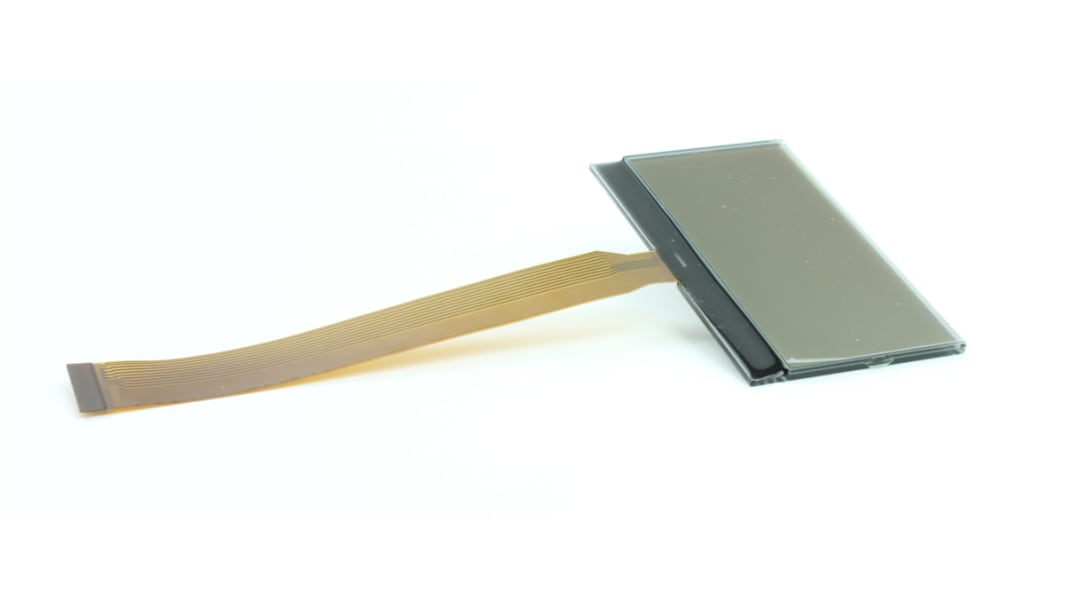

Intelligent Display Solutions CI064-4021-31 Graphic LCD Display Grey, Transmissive

N° de stock RS:: 124-7538
Référence fabricant:: CI064-4021-31
Fabricant:: Intelligent Display Solutions

Intelligent Display Solutions CI064-4021-31 Graphic LCD Display Grey, Transmissive

1 / 3

Price la pièce**

18,94 €

(TVA exclue)

22,92 €

(TVA incluse)

Article en cours d'approvisionnement. Merci de bien vouloir nous contacter.*

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

FRAIS de livraison offerts pour toute commande de plus de 75,00 €

Unité	Prix par unité
1 +	18,94 €

**Prix donné à titre indicatif

N° de stock RS:: 124-7538
Référence fabricant:: CI064-4021-31
Fabricant:: Intelligent Display Solutions

CI064-4021-xxx 128x64 COG Graphic LCD Displays

The CI064-4021-xxx series from Intelligent Display Solutions (IDS) is a comprehensive range of LCD COG Graphic Modules. The available LCD modes and backlight options offered provide a large range of specifications to suit a wide variety of applications.

The process of integrating a CI064-4021-xxx LCD Module is simplified by development tools and assets available from IDS. Raspberry Pi and Arduino programming code, demos and a breakout board (IDB-CI064-4021-XX-01, RS part 1247540) are all offered to assist with rapid prototyping.

Features

128 x 64 dot format
Wide range of LCD mode and LED backlight options
Simple interface with 8 bit parallel or serial
Low-power operation
On-chip DC-DC converter
Internal contrast control
Built-in temperature compensation
Viewing direction: 6 o’clock
Driving scheme: 1/65 duty cycle, 1/9 bias

Amber Backlight Models

CI064-4021-29 - FFSTN Negative Transmissive - RS Part 1247536
CI064-4021-12 - FSTN Negative Transmissive - RS Part 1247522
CI064-4021-23 - STN Positive Yellow Transflective - RS Part 1247530

Blue Backlight Models

CI064-4021-28 - FFSTN Negative Transmissive - RS Part 1247535
CI064-4021-10 - FSTN Negative Transmissive - RS Part 1247520
CI064-4021-04 - FSTN Positive Transflective - RS Part 1247517
CI064-4021-22 - STN Positive Yellow Transflective - RS Part 1247529

Green Backlight Models

CI064-4021-27 - FFSTN Negative Transmissive - RS Part 1247534
CI064-4021-11 - FSTN Negative Transmissive - RS Part 1247521
CI064-4021-05 - FSTN Positive Transflective - RS Part 1247518
CI064-4021-21 - STN Positive Yellow Transflective - RS Part 1247528

Red Backlight Models

CI064-4021-13 - FSTN Negative Transmissive - RS Part 1247523
CI064-4021-14 - FSTN Positive Transflective - RS Part 1247524
CI064-4021-25 - STN Positive Yellow Transflective - RS Part 1247532

White Backlight Models

CI064-4021-01 - FFSTN Negative Transmissive - RS Part 1247514
CI064-4021-26 - FSTN Negative Transmissive - RS Part 1247533
CI064-4021-03 - FSTN Positive Transflective - RS Part 1247516
CI064-4021-02 - STN Negative Blue Transmissive - RS Part 1247515
CI064-4021-20 - STN Positive Yellow Transflective - RS Part 1247527

RGB Backlight Models

CI064-4021-30 - FFSTN Negative Transmissive - RS Part 1247537
CI064-4021-15A - FSTN Negative Transmissive - RS Part 1247525
CI064-4021-16A - FSTN Positive Transflective - RS Part 1247526
CI064-4021-24 - STN Positive Yellow Transflective - RS Part 1247531

Reflective Models

CI064-4021-31 - FSTN Positive Grey Reflective - RS Part 1247538
CI064-4021-32 - STN Positive Yellow Reflective - RS Part 1247539

IDS Graphic LCD Displays

Attribut	Valeur
Display Type	Graphic
Resolution	128 x 64
Viewing Area Dimensions	66 x 32mm
Viewing Area Width	66.41mm
Viewing Area Height	32mm
Interface Type	8-Bit Parallel, I2C, Serial
External Depth	6.8mm
Background Colour	Grey
External Height	43.9mm
External Dimensions	76 x 43.86 x 6.8mm
External Width	76mm
Controller Type	UC1601S
Display Mode	Transmissive
Display Matrix Technology	FSTN
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
Voltage Rating	3 → 3.6V
Driver Mounting	COG
Operating Temperature Range	-20 → +70°C
Current Rating	400µA
